Fuel Fill Door Switch Test/Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
  2. Disconnect the 2P connector (A) from the fuel fill door switch (B).

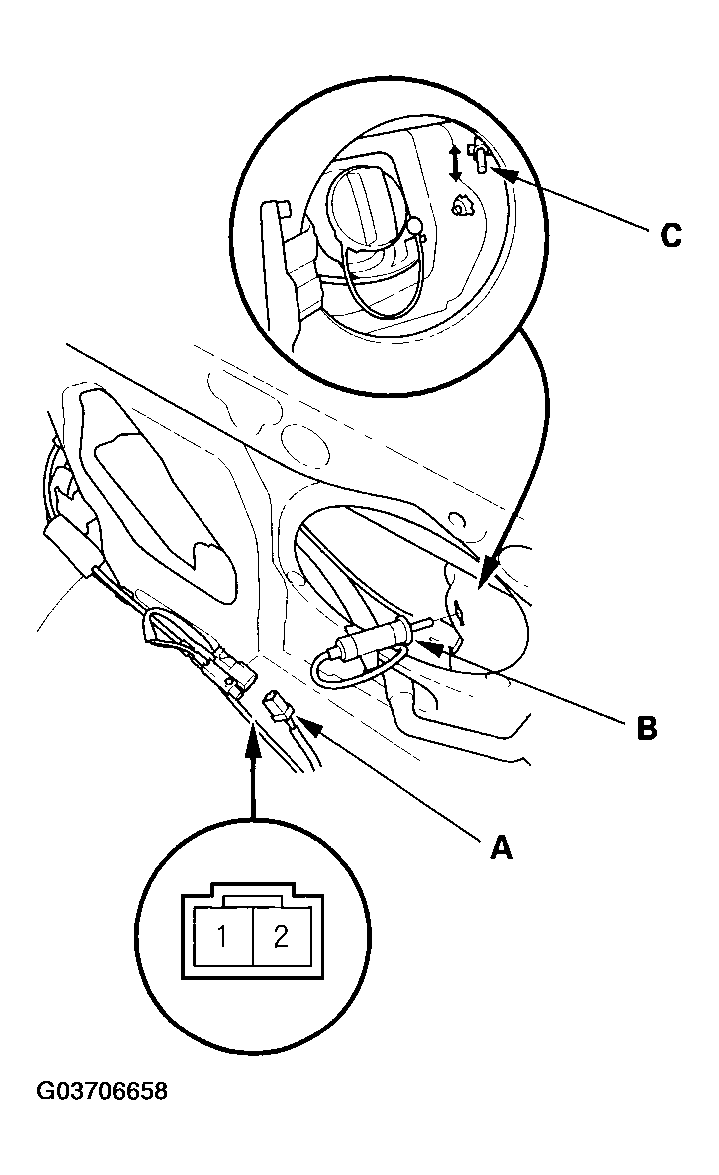

    Fig 1: Disconnecting 2P Connector From Fuel Fill Door Switch
    G03706658Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the fuel fill door switch 2P connector No. 1 and No. 2 terminals.

    There should be no continuity with the fuel fill door switch knob (C) pushed.

    There should be continuity with the fuel fill door switch knob (C) released.

  4. If the check is not as specified, replace the switch.
