Speaker Replacement: Tweeter

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Carefully pry the tweeter grille (A) out of the dashboard. Be careful not to damage the tweeter grille and the dashboard.

Fig 1: Prying Tweeter Grille Out Dashboard
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 2P connector (B) from the tweeter.
Remove the tweeter speaker from the speaker grille.

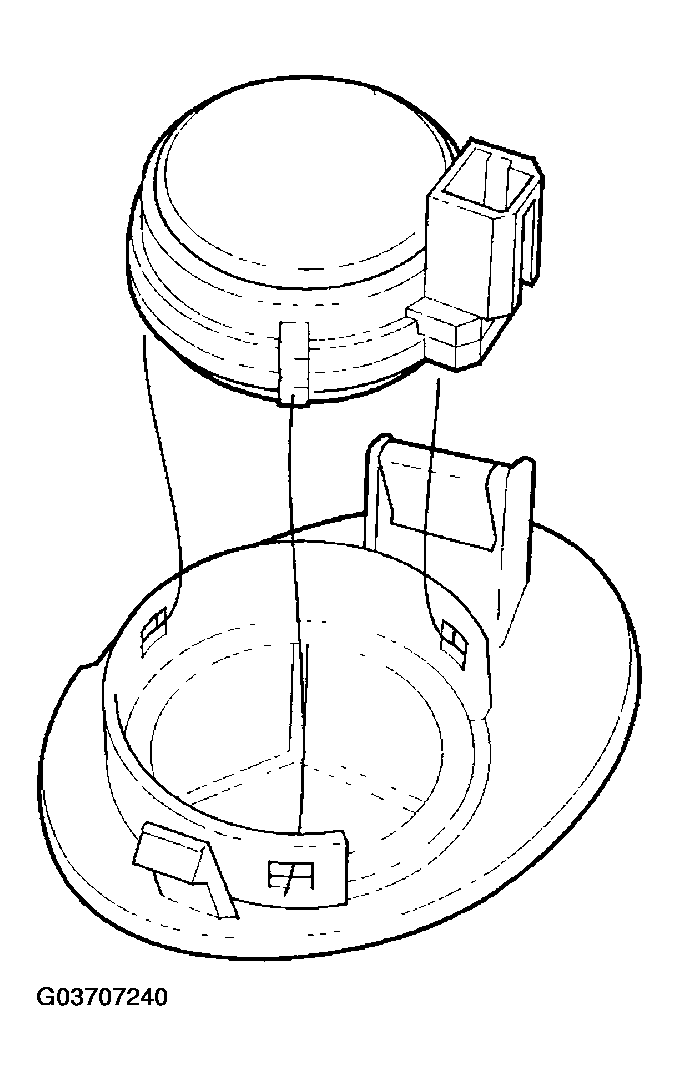

Fig 2: Removing Tweeter Speaker From Speaker Grille
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal.
