C541 (Navigation) Connector End View
C541 (Navigation) Connector End View

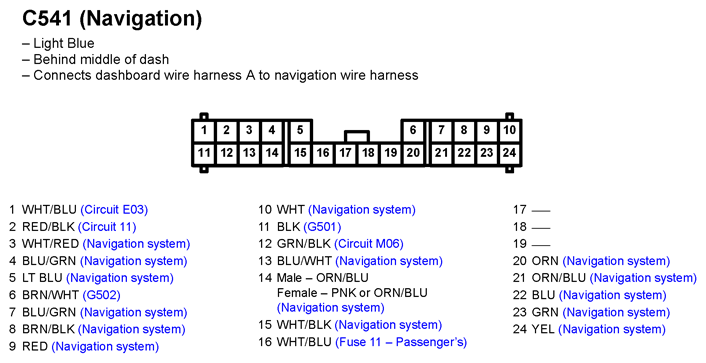

Fig 1: C541 (Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
