Cruise Control Actuator Connector End View
Cruise Control Actuator Connector End View

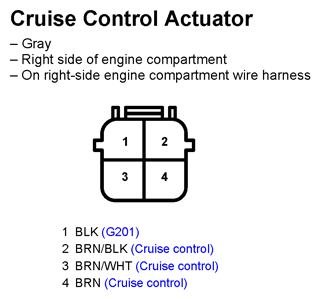

Fig 1: Cruise Control Actuator Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
