Shift Control Solenoid Valve C Connector End View
Shift Control Solenoid Valve C Connector End View

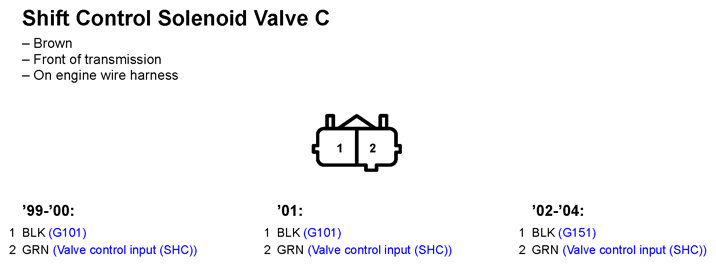

Fig 1: Shift Control Solenoid Valve C Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
