Door Control Unit Input Test

Remove master power window switch from driver's door. See MASTER POWER WINDOW SWITCH  under REMOVAL & INSTALLATION. Disconnect 20-pin harness connector. Inspect connector terminals for damage or corrosion. Repair or replace as necessary, then retest system. If connections are okay, using a DVOM, perform driver's control unit input test. See Fig 1 or Fig 2 . On Prelude, if all input tests are okay, replace door multiplex control unit.

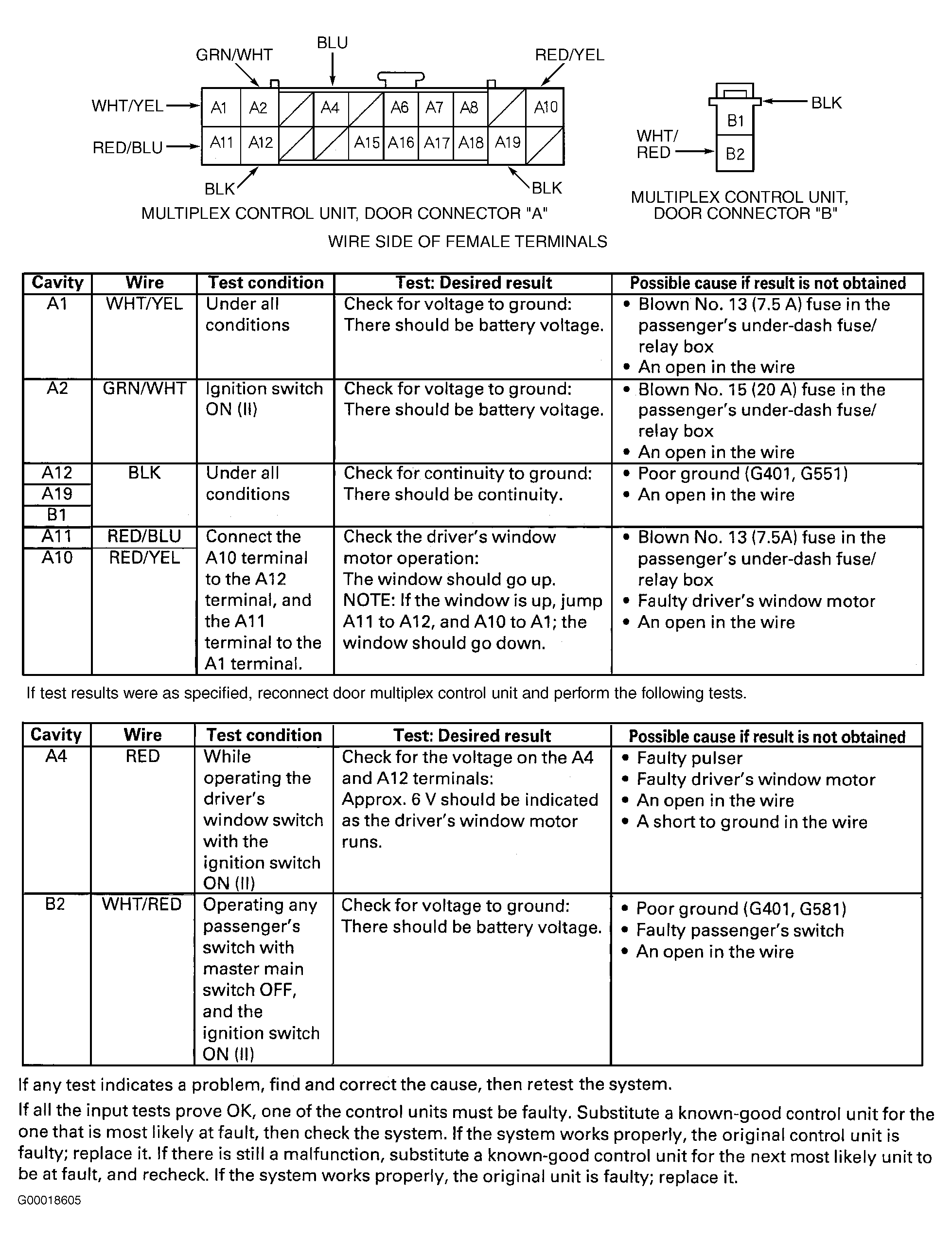

Fig 1: Door Multiplex Control Unit Input Test (Accord)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

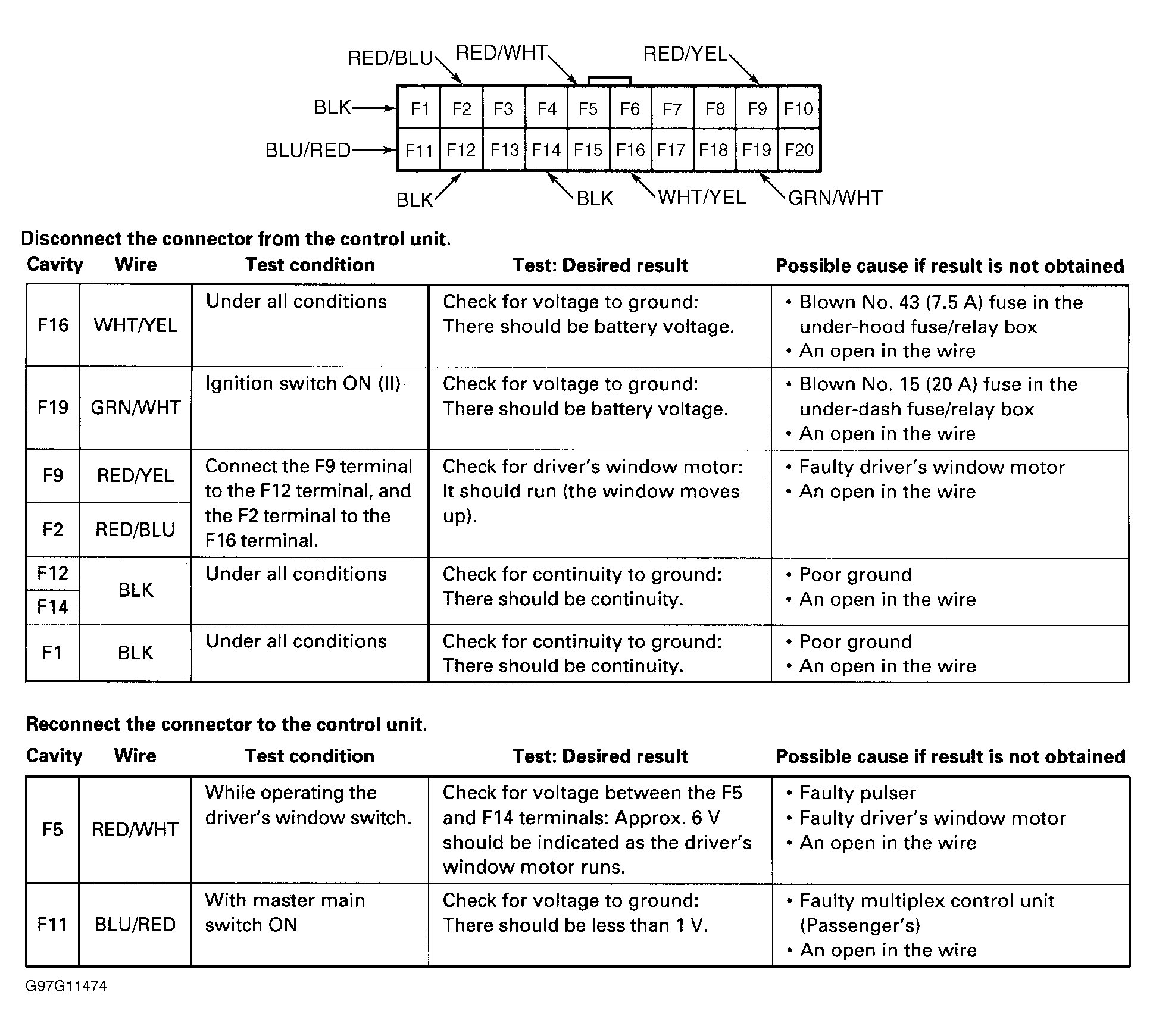

Fig 2: Door Multiplex Control Unit Input Test (Prelude)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
