Connector Identification

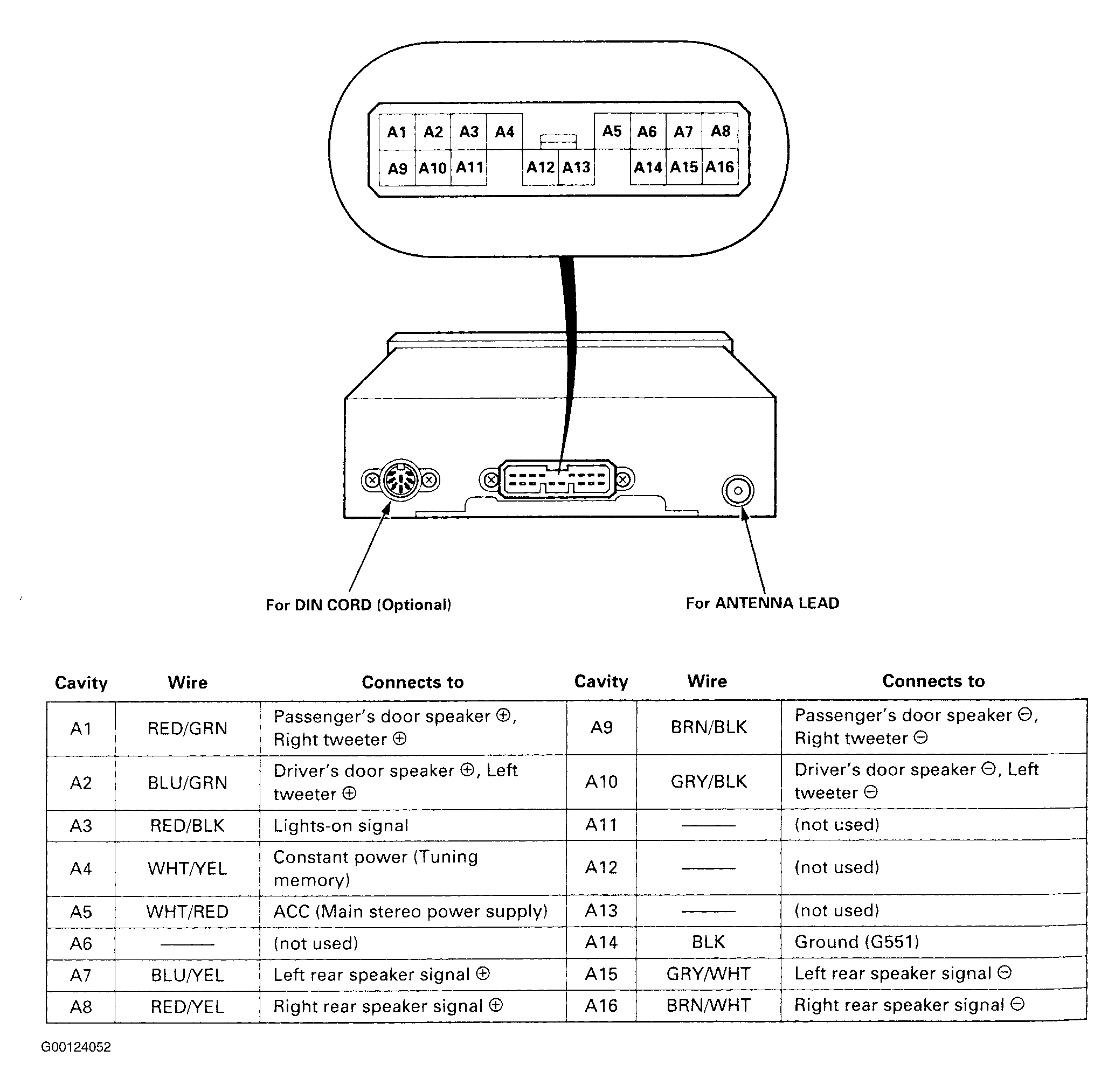

Fig 1: Identifying Audio Unit Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

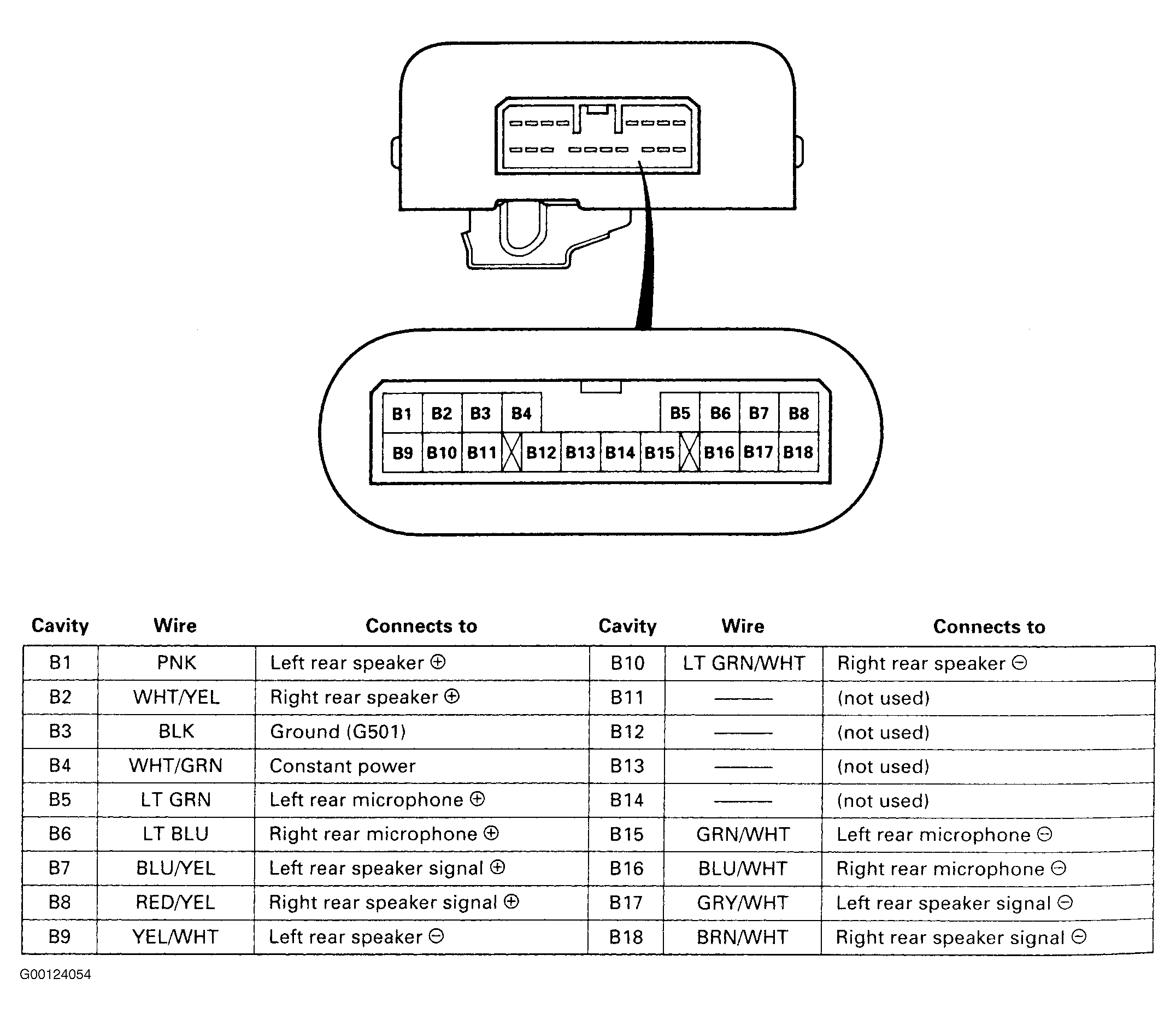

Fig 2: Identifying Stereo Amplifier Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.
