Initializing Occupant Position Detection System (OPDS) Unit

WARNING: This page is about a different car, the 2000 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: DO NOT use a jumper wire in place of SCS short connector. Jumper wire may be difficult to connect and disconnect quickly enough.

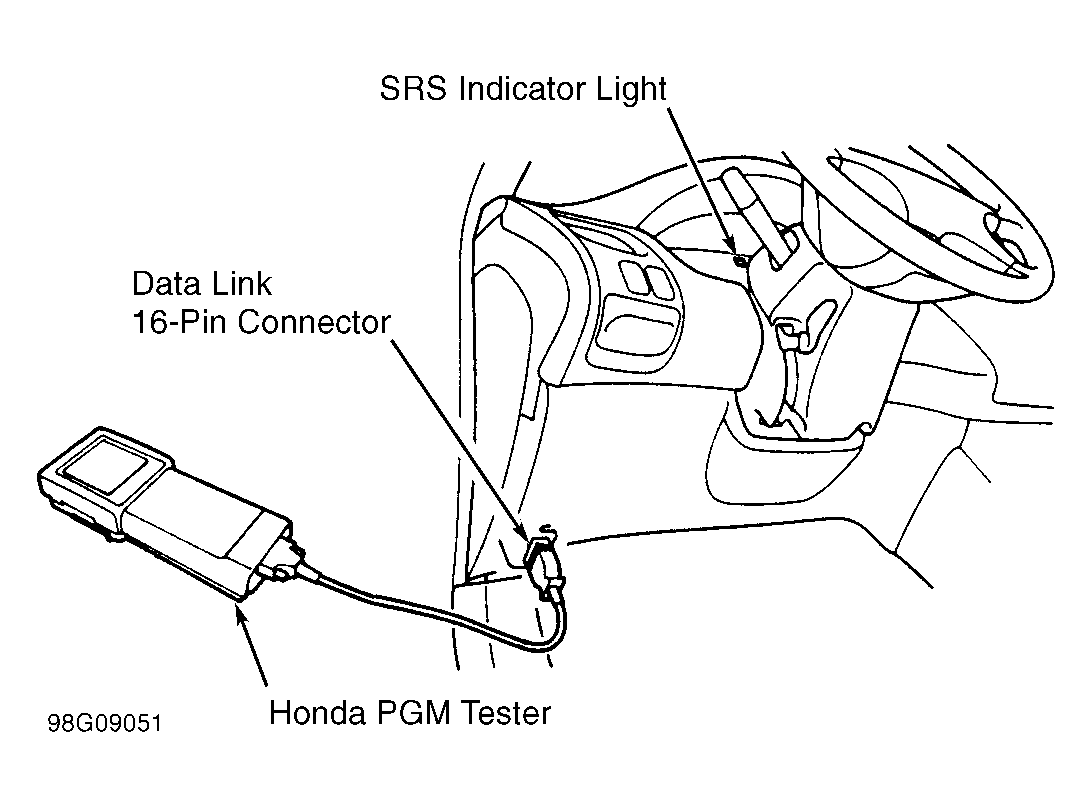

  1. Turn ignition off. Connect Honda PGM Tester to 16-pin data link connector and follow tester prompts in "SCS" menu. See Figure . Connect SCS Service Connector (07PAZ-0010100) to Memory Erase Signal (MES) connector. See Figure .
  2. Turn ignition on. SRS indicator light will come on for about 6 seconds then go off.
  3. Disconnect SCS service connector from MES connector within 4 seconds after SRS indicator light goes off. SRS indicator light will come on again.
  4. Reconnect SCS service connector to MES connector within 4 seconds after SRS indicator light comes on. SRS indicator light will go off.
  5. Disconnect SCS service connector from MES connector within 4 seconds. SRS indicator light will indicate that OPDS unit is initialized by blinking 2 times. If light doesn't blink and stays on, repeat procedure. If light blinks 2 times and stays on, read DTC and proceed with troubleshooting. Turn ignition off, and wait 10 seconds.
DIAGNOSTIC TROUBLE CODE (DTC) CHART-WITHOUT SIDE AIR BAGS

Trouble Code Possible Cause
SRS indicator light does not come on not come on Faulty SRS indicator light circuit
SRS indicator light stays on Faulty SRS indicator light circuit, SRS unit, or SRS power supply
No DTC-SRS indicator light stays on after self-diagnosis Faulty SRS power supply
1-1  Open in driver-side air bag inflator
1-2  Increased resistance in driver-side air bag inflator
1-3  Short to another wire in driver-side air Bag inflator or decreased resistance
1-4  Short to power in driver-side air bag inflator
1-5  Short to ground in driver-side air bag inflator
2-1  Open in passenger-side air bag inflator
2-2  Increased resistance in passenger-side air bag inflator
2-3  Short to another wire in passenger-side air bag inflator or decreased resistance
2-4  Short to power in passenger-side air bag inflator
2-5  Short to ground in passenger-side air bag inflator
5-1 Internal failure of SRS unit-replace
5-2 Internal failure of SRS unit-replace
5-4 Internal failure of SRS unit-replace
5-5 Internal failure of SRS unit-replace
5-8 Internal failure of SRS unit-replace
6-1 Internal failure of SRS unit-replace
6-2 Internal failure of SRS unit-replace
6-3 Internal failure of SRS unit-replace
6-4 Internal failure of SRS unit-replace
7-1 Internal failure of SRS unit-replace
7-2 Internal failure of SRS unit-replace
7-3 Internal failure of SRS unit-replace
8-1 Internal failure of SRS unit-replace
8-2 Internal failure of SRS unit-replace
8-5 Internal failure of SRS unit-replace
8-6 Internal failure of SRS unit-replace
9-1(1) Internal failure of SRS unit-replace
9-2(2) Internal failure of SRS unit-replace
9-3  Faulty driver-side seat belt switch
9-4  Faulty passenger-side seat belt switch
10-1 SRS air bags deployed-replace SRS unit
(1) If intermittent, code could result from an internal failure of SRS unit or faulty indicator light circuit. See TROUBLESHOOTING INTERMITTENT FAILURES  .
(2) If intermittent, code could result from an internal failure of power supply (VI line). See TROUBLESHOOTING INTERMITTENT FAILURES  .
DIAGNOSTIC TROUBLE CODE (DTC) CHART-WITH SIDE AIR BAGS

Trouble Code Possible Cause
SRS indicator light does not come on not come on Faulty SRS indicator light circuit
SRS indicator light stays on Faulty SRS indicator light circuit
1-1  Open or increased resistance in Driver-side air bag inflator
1-3  Short to another wire or Decreased resistance in Driver-side air bag inflator
1-4  Short to power in driver-side Air bag inflator
1-5  Short to ground in driver-side air bag inflator
2-1  Open or increased resistance in Passenger-side air bag inflator
2-3  Short to another wire or decreased resistance in passenger-side air bag inflator
2-4  Short to power in passenger-side air bag inflator
2-5  Short to ground in passenger-side air bag inflator
5-1 Internal failure of SRS unit-replace
5-2 Internal failure of SRS unit-replace
5-4 Internal failure of SRS unit-replace
5-5 Internal failure of SRS unit-replace
5-8 Internal failure of SRS unit-replace
6-1 Internal failure of SRS unit-replace
6-2 Internal failure of SRS unit-replace
6-3 Internal failure of SRS unit-replace
6-4 Internal failure of SRS unit-replace
6-5 Internal failure of SRS unit-replace
6-6 Internal failure of SRS unit-replace
6-7 Internal failure of SRS unit-replace
6-8 Internal failure of SRS unit-replace
7-1 Internal failure of SRS unit-replace
7-2 Internal failure of SRS unit-replace
7-3 Internal failure of SRS unit-replace
8-1 Internal failure of SRS unit-replace
8-2 Internal failure of SRS unit-replace
8-5 Internal failure of SRS unit-replace
8-6 Internal failure of SRS unit-replace
8-7 Internal failure of SRS unit-replace
8-8 Internal failure of SRS unit-replace
9-1(1) Internal SRS unit failure
9-2(2) Internal SRS unit failure
9-3  Faulty driver-side seat belt switch
9-4  Faulty passenger-side seat belt switch
10-1 driver & passenger-side air bags deployed-replace
10-2 Driver side-impact air bag deployed-replace
10-3 Driver & passenger-side air bags & driver side-impact Air bag deployed-replace
10-4 passenger side-impact Air bag deployed-replace
10-5 Driver & passenger-side air bags & passenger side-impact Air bag deployed-replace
10-6 Driver & passenger side-impact Air bags deployed-replace
10-7 Driver & passenger-side air bags & driver & passenger side-impact air bags deployed-replace
11-1  Open or increased resistance in driver side-impact air bag inflator
11-3  Short to another wire or decreased resistance in driver side-impact air bag inflator
11-4  Short to power in driver side-impact air bag inflator
11-5  Short to ground in driver side-impact air bag inflator
12-1  Open or increased resistance in Passenger side-impact air bag inflator
12-3  Short to another wire or decreased resistance in passenger side-impact air bag inflator
12-4  Short to power in passenger side-impact air bag inflator
12-5  Short to ground in passenger side-impact air bag inflator
13-2 Faulty driver side-impact sensor-replace
13-3  Faulty SRS floor harness or driver side-impact sensor
13-4  Faulty power supply to driver side-impact sensor
14-2 Faulty passenger side-impact sensor-replace
14-3  Faulty SRS floor harness or passenger side-impact sensor
14-4  Faulty power supply to passenger side-impact sensor
15-1  Faulty OPDS unit
15-2  Faulty side air bag indicator light
15-3  Faulty OPDS sensor
(1) If intermittent, code could result from an internal failure of SRS unit or faulty indicator light circuit. See TROUBLESHOOTING INTERMITTENT FAILURES  .
(2) If intermittent, code could result from an internal failure of power supply (VI line). See TROUBLESHOOTING INTERMITTENT FAILURES  .
NOTE: SRS units from 2 manufacturers (NEC and Siemens) are used in Accord. NEC made SRS units are installed in vehicles without side-impact air bag systems. Siemens made SRS units are installed in vehicles with side-impact systems. Ensure correct SRS unit is installed. See SRS UNIT IDENTIFICATION  table.
SRS UNIT IDENTIFICATION

SRS Unit ID Mark
NEC M1
SIEMENS M3
