Component Location Index

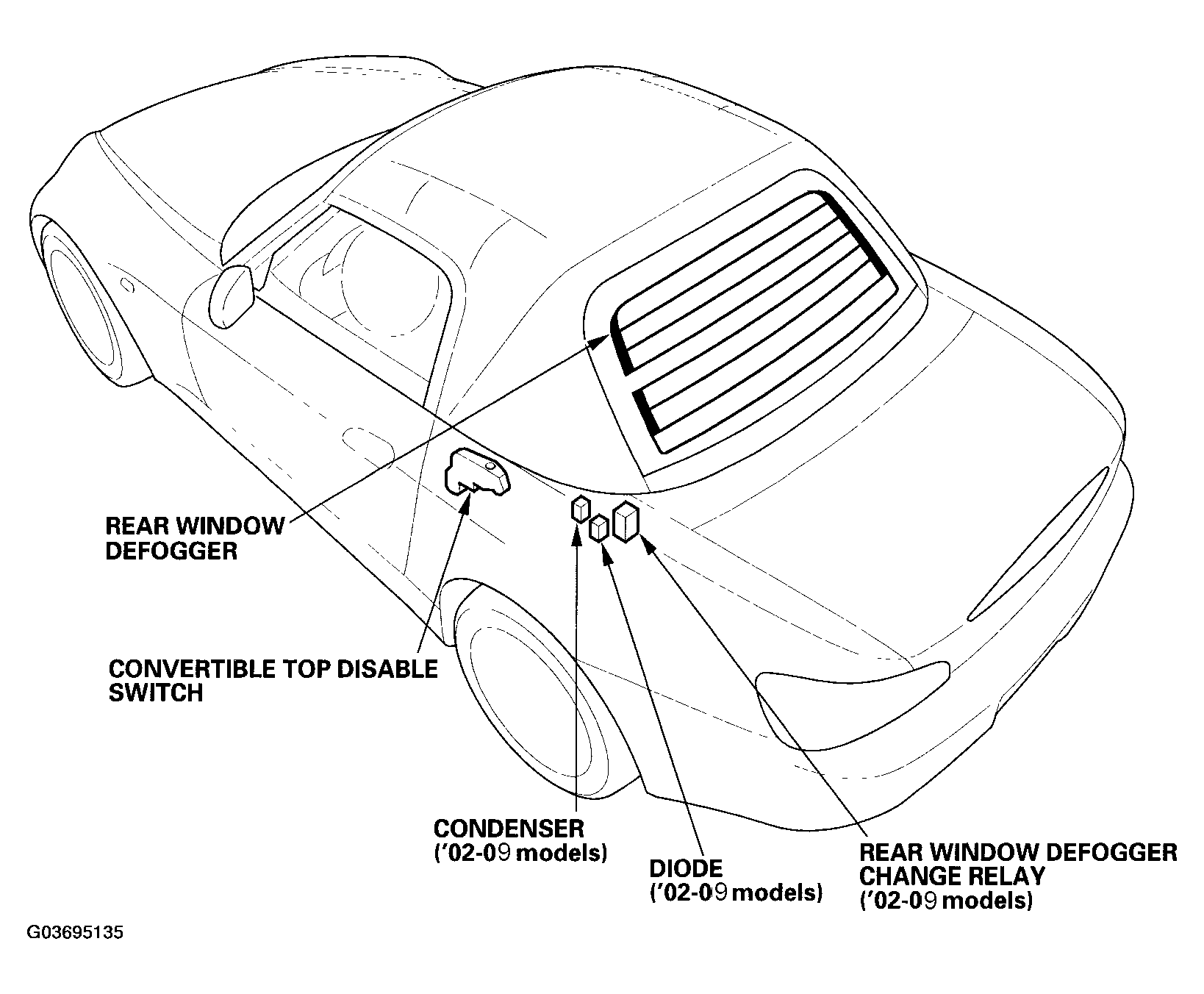

Fig 1: Identifying Rear Window Defogger Replacement Components (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

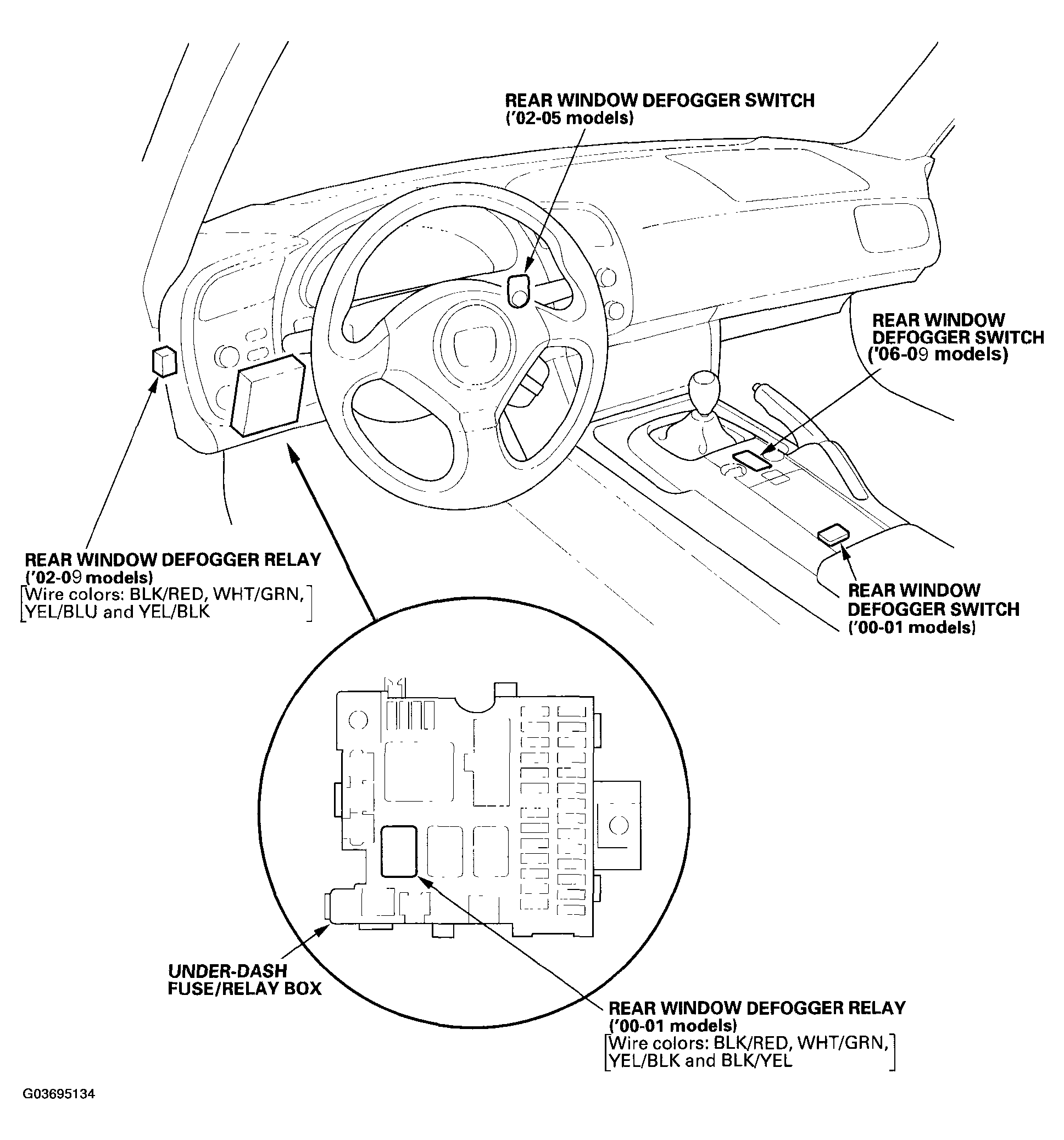

Fig 2: Identifying Rear Window Defogger Replacement Components (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
