'00-01 Models

  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Remove the rear window defogger switch (A) from the center console, then disconnect the 5P connector (B).

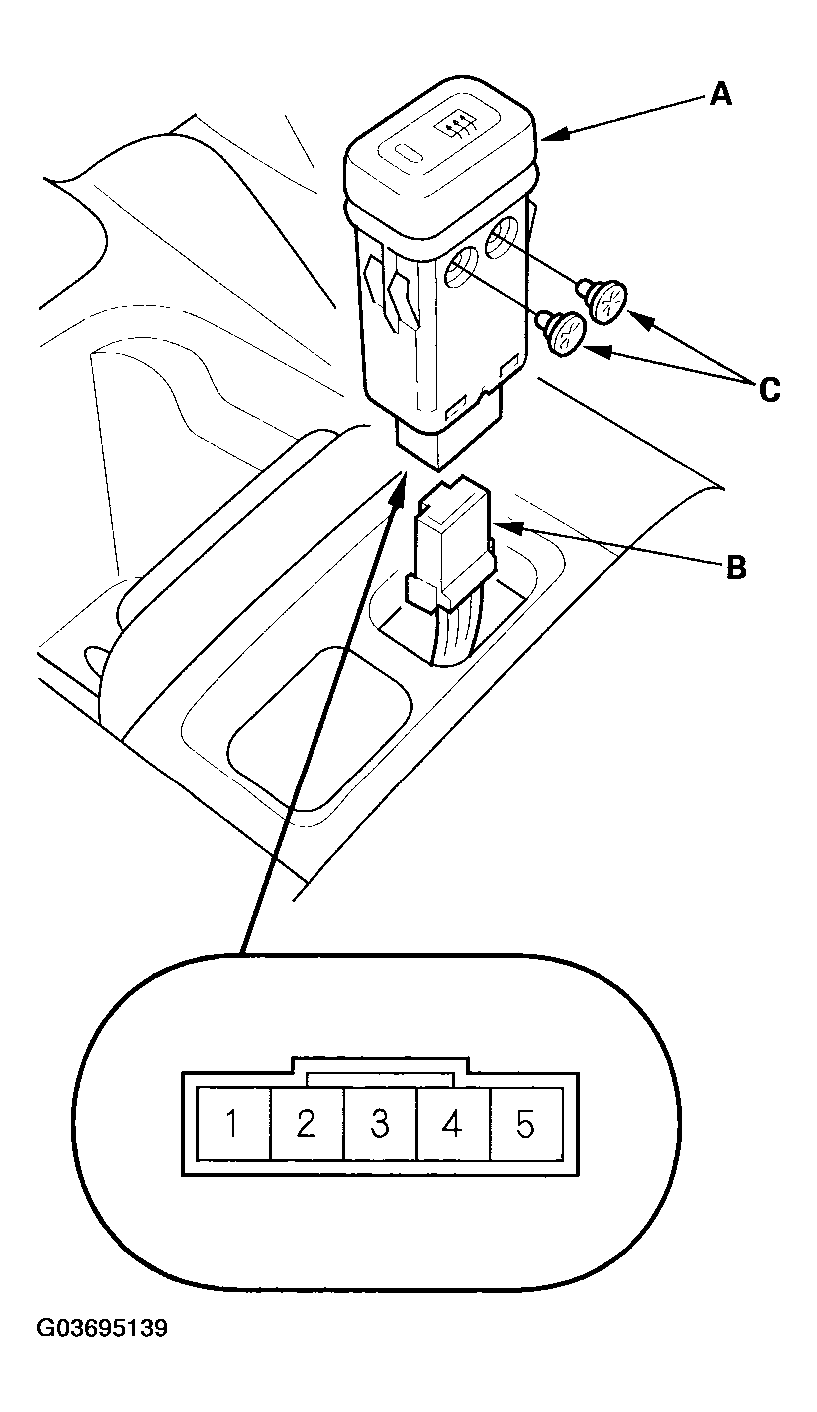

    Fig 1: Identifying Rear Window Defogger Switch From Center Console
    G03695139Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table below.
    Fig 2: Identifying Terminal Position Continuity Table
    G03695140Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the bulbs (C) or the switch.
