'02-05 Models

  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Remove the rear window defogger switch (A), then disconnect the 6P connector (B).

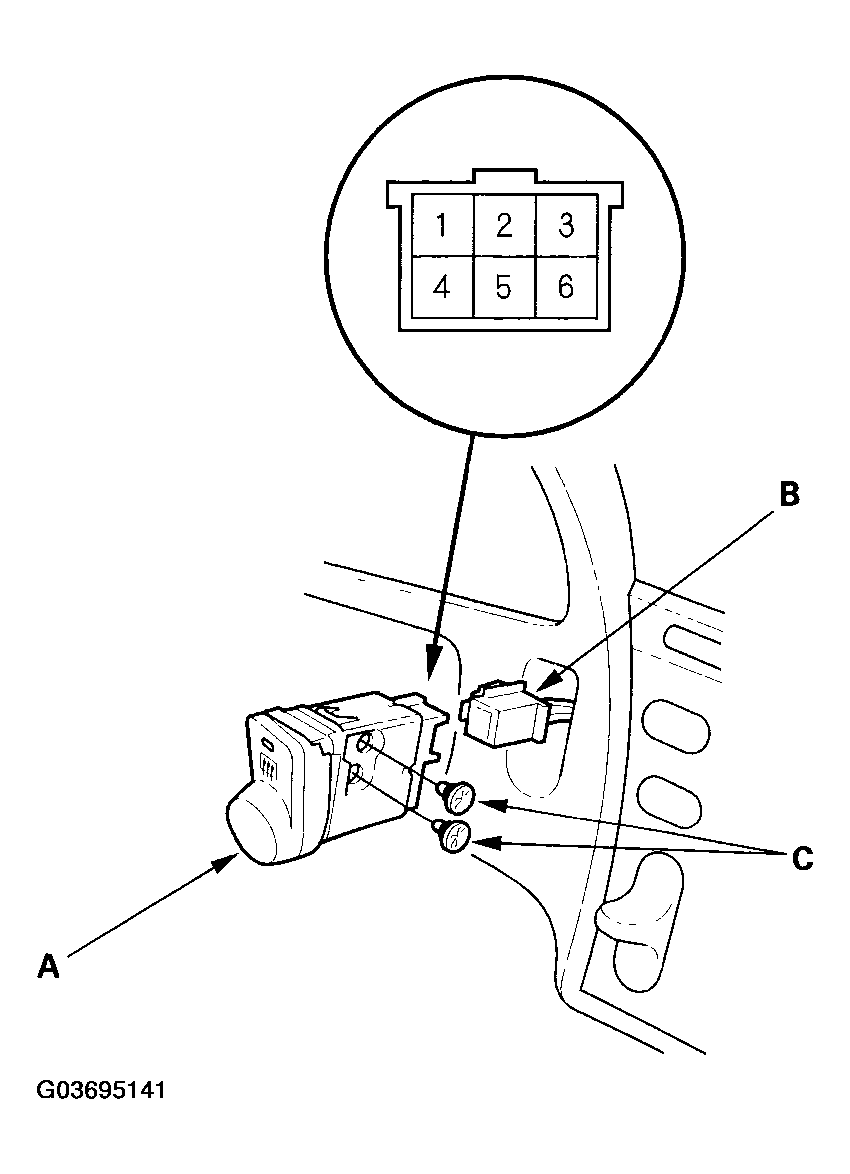

    Fig 1: Identifying Rear Window Defogger Switch & 6P Connector
    G03695141Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table below.
    Fig 2: Identifying Terminal Position Continuity Table
    G03695142Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the bulbs (C) or the switch.
