Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Immobilizer System
›
Circuit Diagram
Circuit Diagram

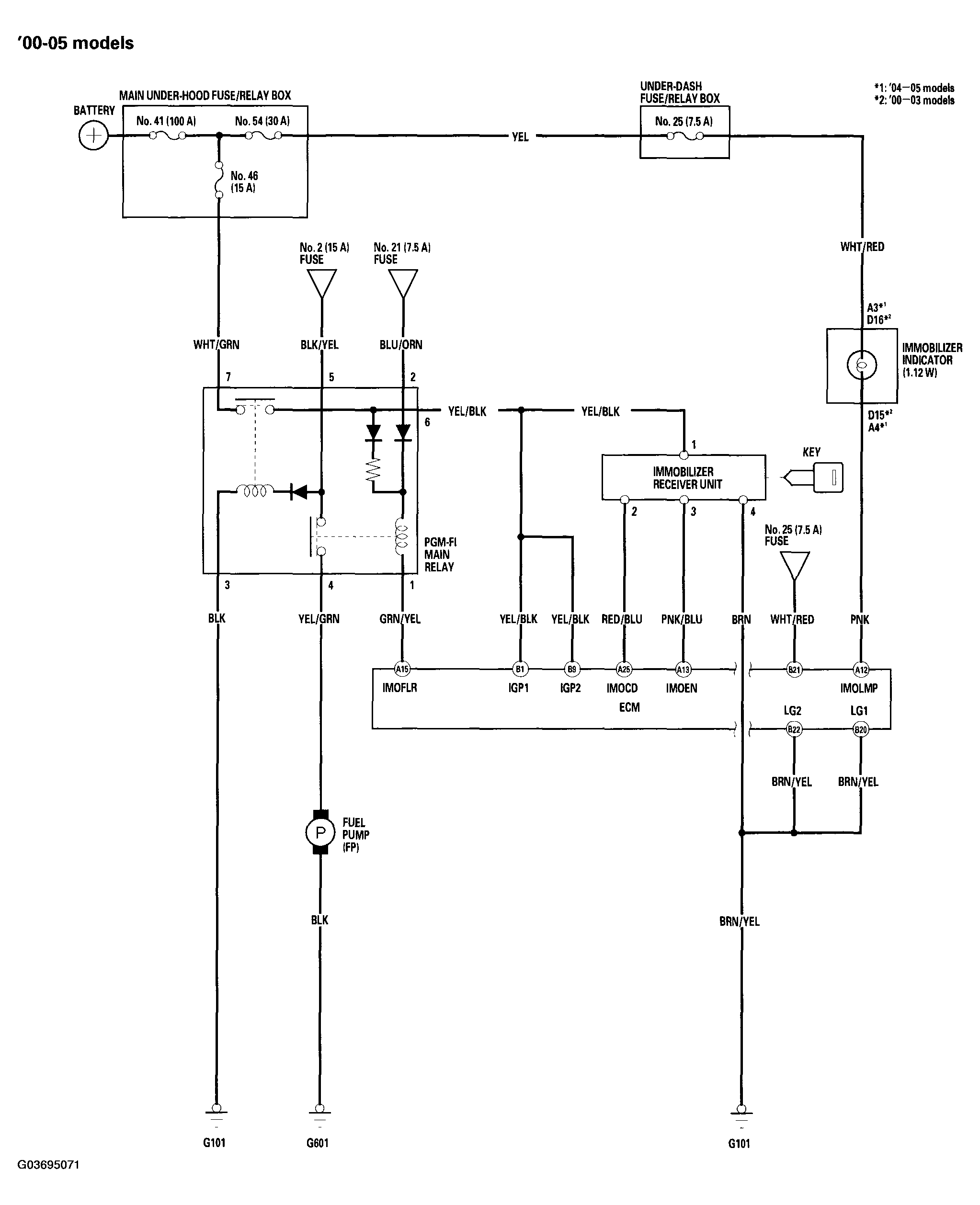

Fig 1: Circuit Diagram (00-05 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

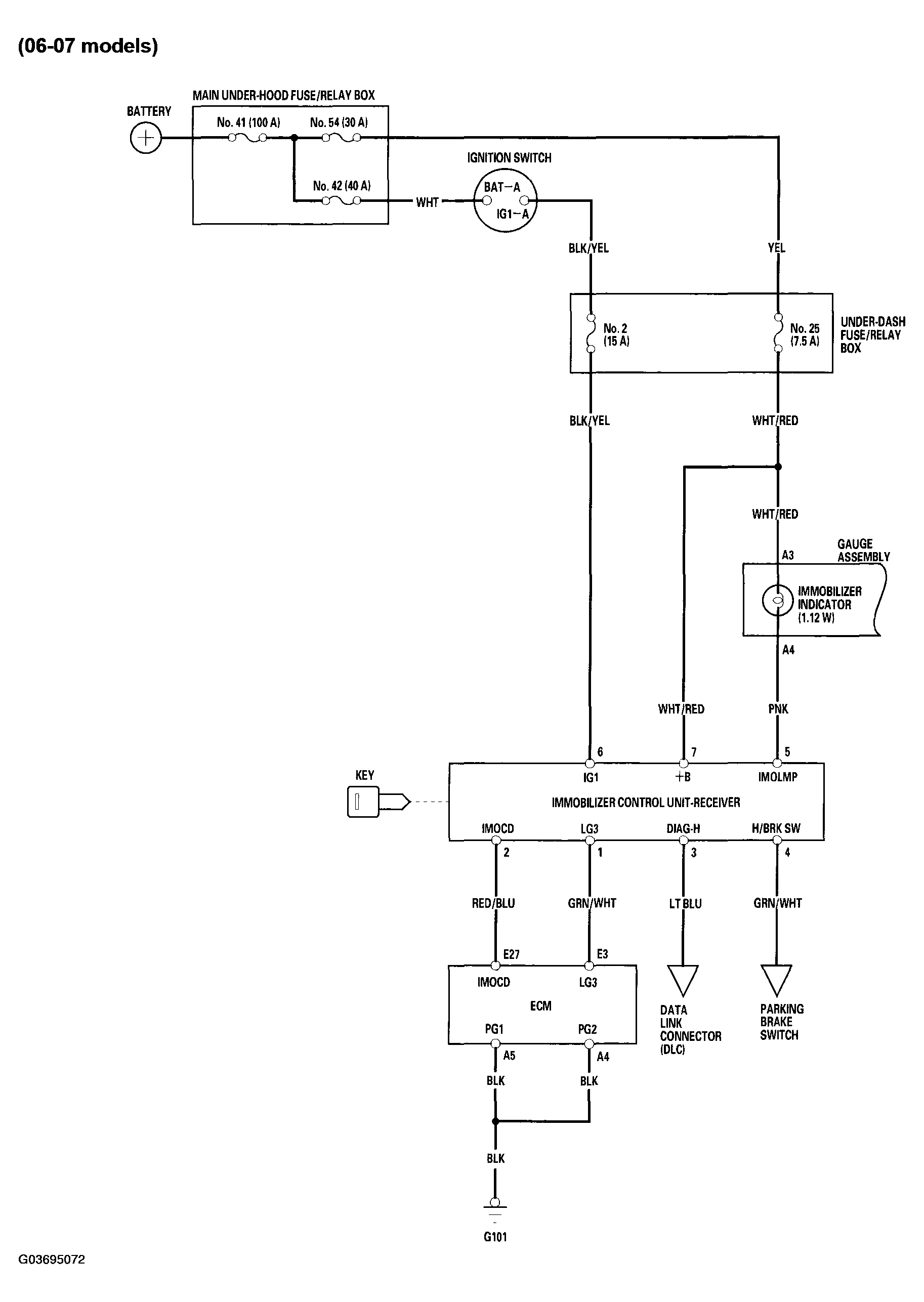

Fig 2: Circuit Diagram (06-09 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
