Exploded View

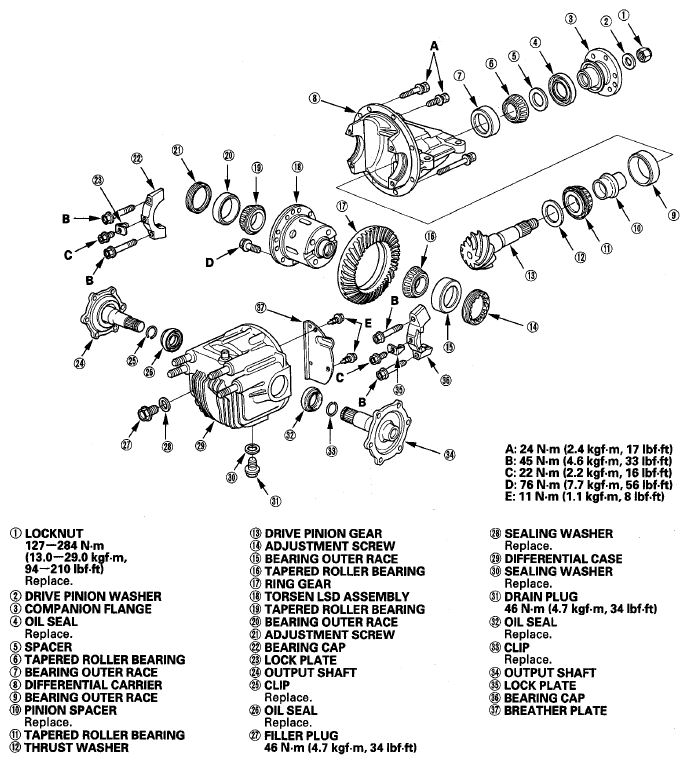

Fig 1: Exploded View Of Differential With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Holder handle 07JAB-001020A
• Companion flange holder 07RAB-TB4010B

1. Carefully clamp the rear differential in a bench vise.
   Fig 2: Clamping Rear Differential In Bench Vise

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

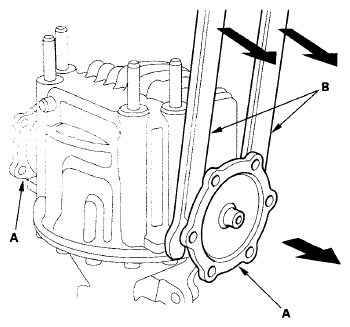

2. Remove the output shafts (A) from the differential using pry bars (B).
   Fig 3: Identifying Output Shafts And Bars

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the output shafts.
   Fig 4: Identifying Output Shafts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the ten mounting bolts in a crisscross pattern in several steps, then remove the differential case (A).
   Fig 5: Identifying Differential Case

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Make marks on the bearing cap (A), the adjustment screw (B), and the differential carrier (C).
   Fig 6: Identifying Bearing Cap, Adjustment Screw And Differential Carrier

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Remove the lock plates (A) and the bearing caps (B).
   Fig 7: Identifying Lock Plates And Bearing Caps

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

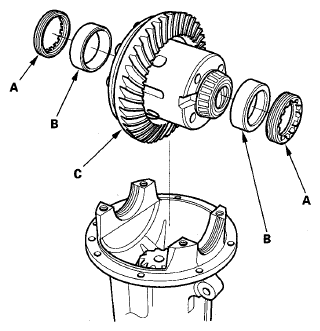

7. Remove the adjustment screws (A), the bearing outer races (B), and the Torsen LSD assembly (C).
   Fig 8: Identifying Adjustment Screws, Bearing Outer Races And Torsen LSD Assembly

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Install the holder handle (A) and the companion flange holder (B) on the companion flange, then remove the locknut (C) and the pinion washer (D).
   Fig 9: Identifying Holder Handle, Companion Flange Holder, Locknut And Pinion Washer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Remove the companion flange using a commercially available bearing puller as shown.
   Fig 10: Removing Companion Flange

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Support the differential carrier with a wood block under the driver pinion gear. Remove the pinion spacer (A) and the drive pinion gear (B) by tapping on the drive pinion using a plastic hammer.
    Fig 11: Identifying Pinion Spacer And Drive Pinion Gear

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Remove the oil seal (A), the spacer (B), the tapered roller bearing (C), and the bearing outer race (D) from the differential carrier.
    Fig 12: Identifying Oil Seal, Spacer, Tapered Roller Bearing And Bearing Outer Race

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

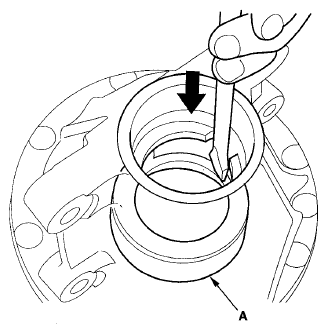

12. Remove the bearing outer race (A) from the differential carrier.
    Fig 13: Identifying Bearing Outer Race

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
13. Remove the tapered roller bearing (A) and the thrust washer (B) from the drive pinion (C) using a commercially available bearing separator (D) and a press as shown.
    Fig 14: Identifying Tapered Roller Bearing, Thrust Washer, Drive Pinion And Bearing Separator

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
14. Remove the tapered roller bearings from the Torsen LSD assembly using a commercially available bearing puller as shown.
    Fig 15: Removing Tapered Roller Bearings From Torsen LSD Assembly

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
15. Make marks on the Torsen LSD assembly and ring gear.
16. Remove the ten mounting bolts in a crisscross pattern in several steps, then remove ring gear (A).
    Fig 16: Identifying Ring Gear

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
17. Remove the breather plate (A), the filler plug (B), the drain plug (C), and the sealing washers.
    Fig 17: Identifying Breather Plate, Filler Plug And Drain Plug

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
18. Remove the oil seals.

Fig 18: Removing Oil Seals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
