Air Pump Electrical Current Sensor Connector End View
Air Pump Electrical Current Sensor Connector End View

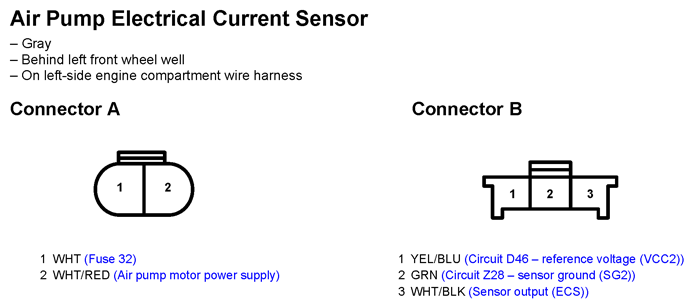

Fig 1: Air Pump Electrical Current Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
