Air Pump Relay Connector End View
Air Pump Relay Connector End View

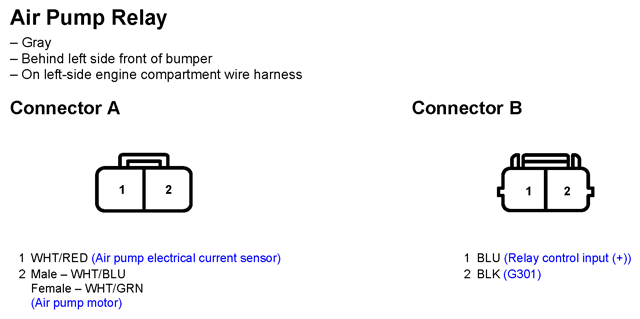

Fig 1: Air Pump Relay Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
