C302 Connector End View
C302 Connector End View

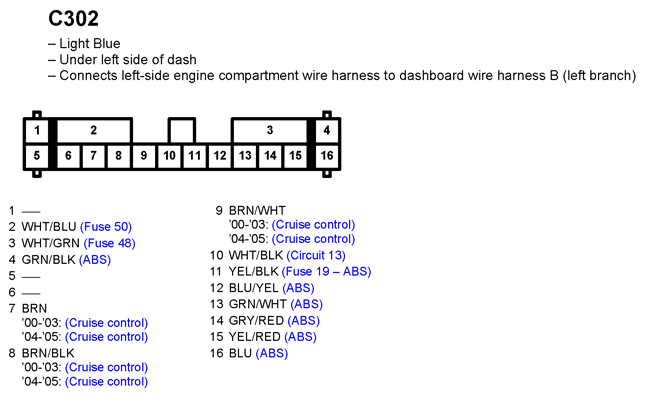

Fig 1: C302 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
