C404 Connector End View
C404 Connector End View

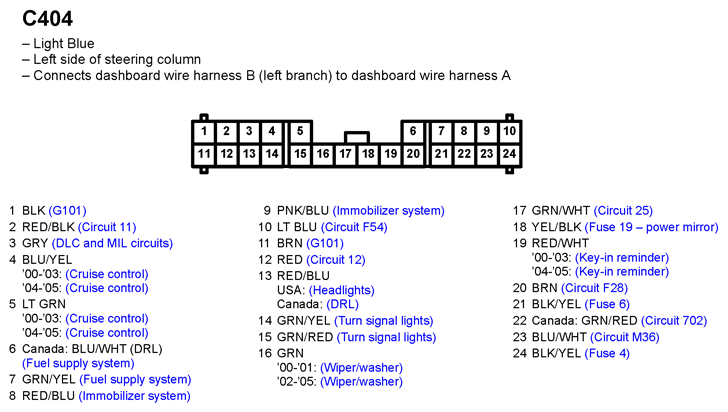

Fig 1: C404 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
