Convertible Top Switch Connector End View
Convertible Top Switch Connector End View

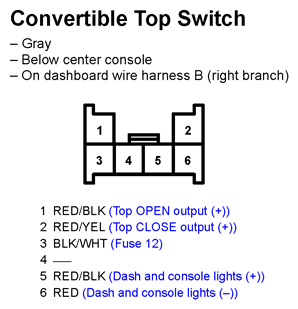

Fig 1: Convertible Top Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
