Intermittent Wiper Relay Connector End View
Intermittent Wiper Relay Connector End View

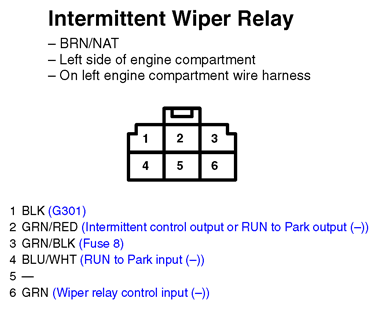

Fig 1: Intermittent Wiper Relay Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
