Main Under-Hood Fuse/Relay Box Connector End View
Main Under-Hood Fuse/Relay Box Connector End View

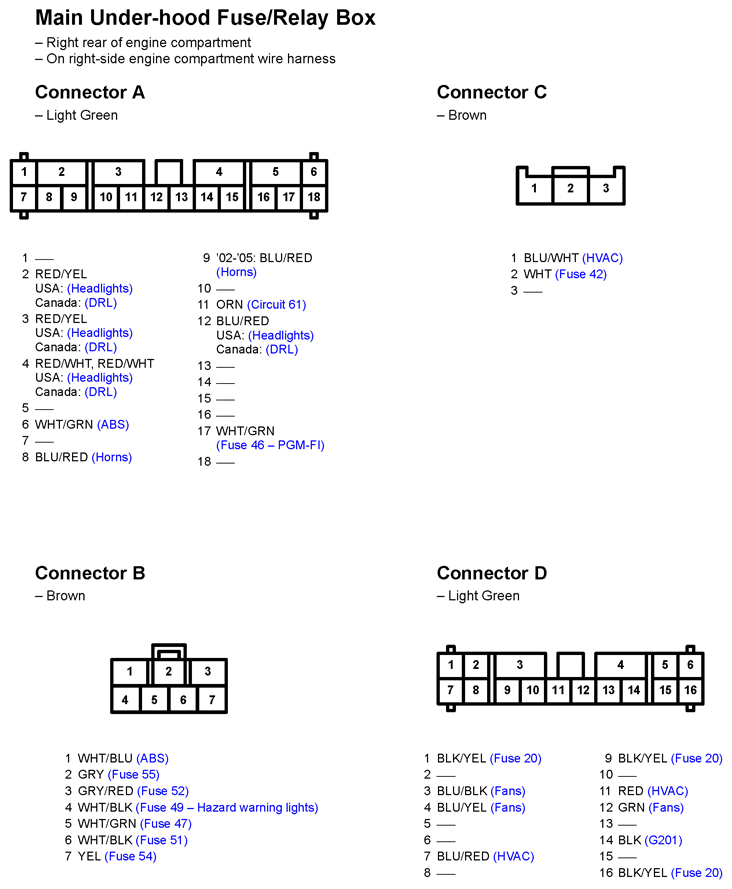

Fig 1: Main Under-Hood Fuse/Relay Box Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
