Rear Window Defogger Change Relay Connector End View
Rear Window Defogger Change Relay Connector End View

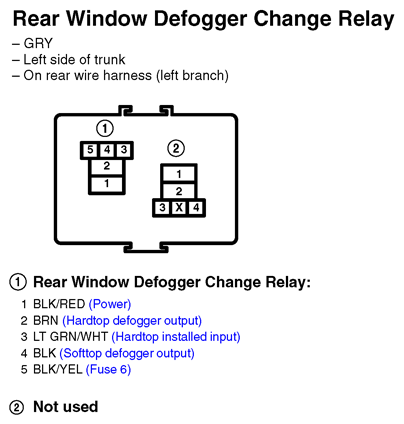

Fig 1: Rear Window Defogger Change Relay Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
