Throttle Actuator Control Module Connector End View
Throttle Actuator Control Module Connector End View

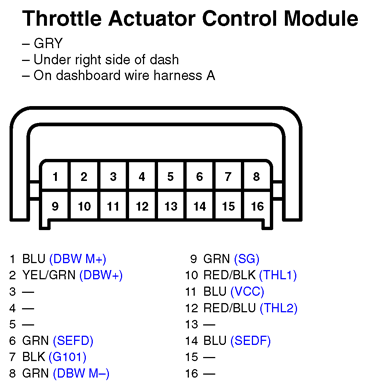

Fig 1: Throttle Actuator Control Module Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
