Under-Hood Fuse/Relay Box, Main Connector End View
Under-Hood Fuse/Relay Box, Main Connector End View

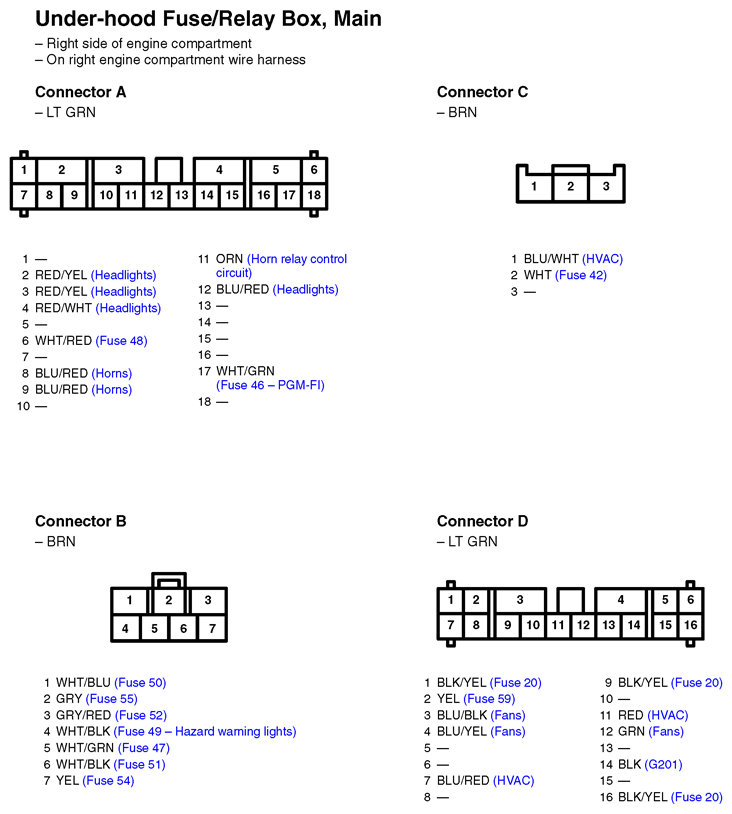

Fig 1: Under-Hood Fuse/Relay Box, Main Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
