Wiper Motor, Windshield Connector End View
Wiper Motor, Windshield Connector End View

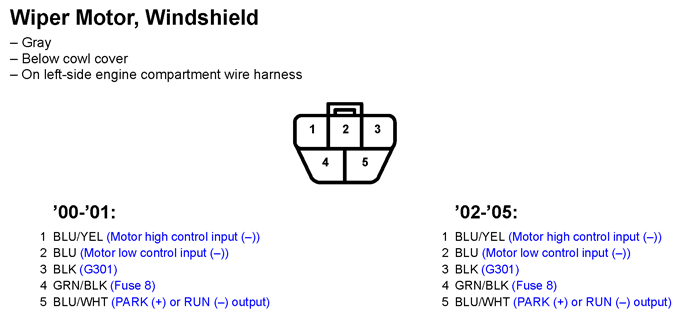

Fig 1: Wiper Motor, Windshield Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
