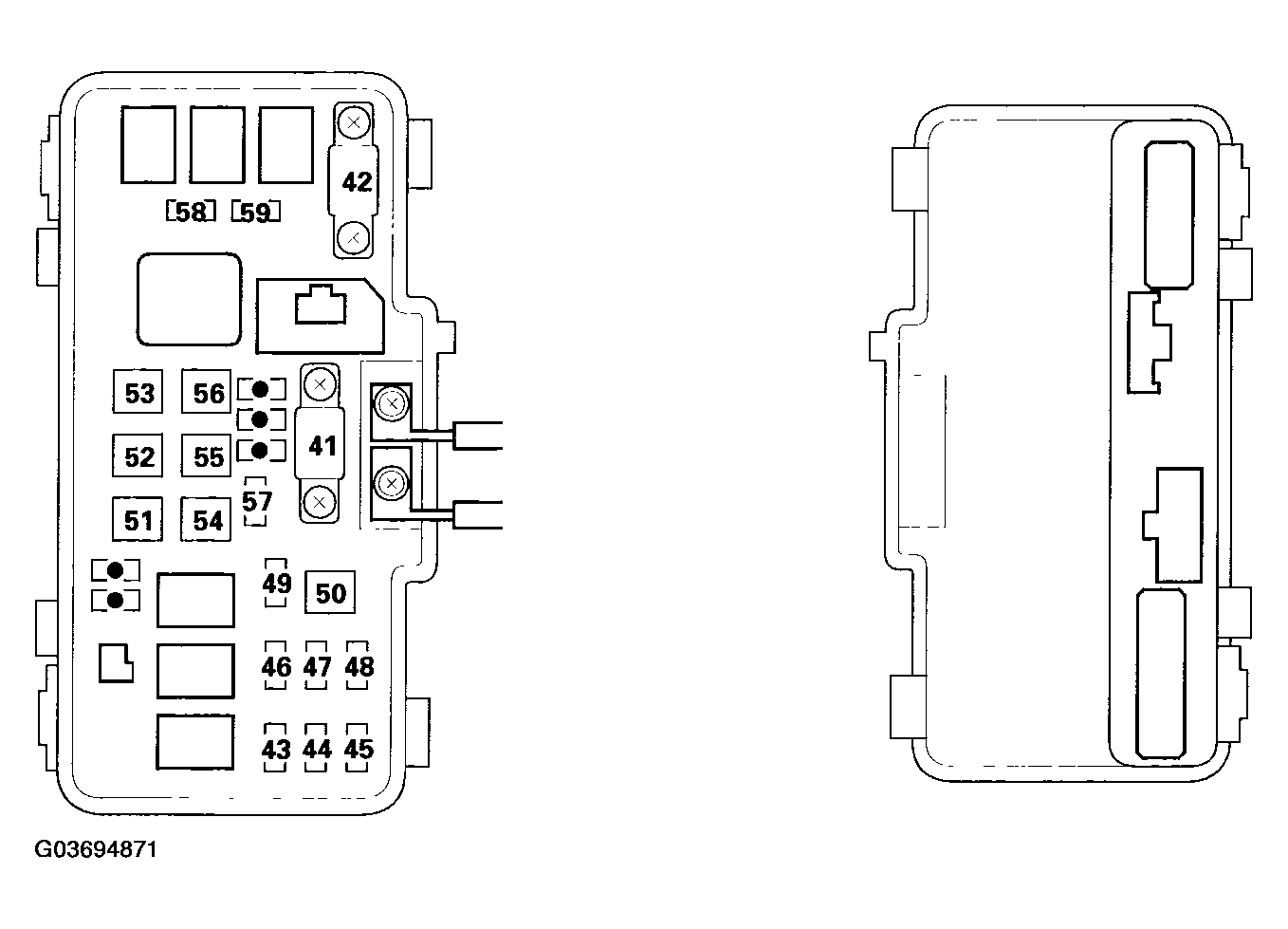

Main Under-Hood Fuse/Relay Box
FUSE TO COMPONENTS INDEX - MAIN UNDER-HOOD FUSE/RELAY BOX
| Fuse Number |
Amps |
Wire Color |
Component(s) or Circuit(s) Protected |
| 41 |
100 A |
- |
Battery, Power distribution |
| 42 |
40 A |
WHT |
Ignition switch (BAT) |
| 43 |
20 A |
RED/WHT |
Daytime running lights control unit, Right headlight (high/low beam) |
| 44 |
- |
- |
Not used |
| 45 |
20 A |
RED/YEL |
Daytime running lights control unit, Gauge assembly, High beam indicator, High beam cut relay, Left headlight (high/low beam) |
| 46 |
15A |
WHT/GRN |
Data link connector (DLC), PGM-FI main relay ('00-05 models), CMP sensor ('06-09 model), CKP sensor ('06-09 model), ECM ('06-09 model) |
| 47 |
10A |
WHT/GRN |
ABS modulator-control unit ('00-05 models). Brake lights. Cruise control unit ('00-05 models), ECM, High mount brake light, Horn(s) |
| 15A |
| 48 |
20 A |
WHT/RED |
ABS modulator-control unit ('00-05 models), VSA modulator-control unit ('06-09 model) |
| 49 |
10A |
WHT/BLK |
Hazard warning lights |
| 50 |
30 A |
WHT/BLU |
ABS modulator-control unit ('00-05 models), VSA modulator-control unit ('06-09 model) |
| 51 |
40 A |
WHT/BLK |
No. 17 and 18 fuses (in the under-dash fuse/relay box) |
| 52 |
20 A |
GRY/RED |
Right convertible top motor |
| 53 |
- |
- |
Not used |
| 54 |
30 A |
YEL |
No. 22, 23, 24, 25, 26 and 27 fuses (in the under-dash fuse/relay box) |
| 55 |
20 A |
GRY |
Left convertible top motor |
| 56 |
40 A |
BLU/WHT |
Blower motor |
| 57 |
20 A |
BLU/BLK |
Radiator fan motor |
| 58 |
20 A |
BLU/YEL |
A/C condenser fan motor |
| BLU/RED |
A/C compressor clutch |
| 59 |
20 A |
YEL |
No. 14, 15 and 16 fuses (in the under-dash fuse/relay box) |
Courtesy of AMERICAN HONDA MOTOR CO., INC.
