Drive Belt Auto-tensioner Replacement

Remove the drive belt (see DRIVE BELT INSPECTION ).
Remove the auto-tensioner.

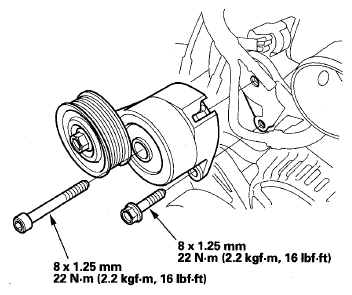

Fig 1: Auto-Tensioner And Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the auto-tensioner in the reverse order of removal.
