Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| Auxiliary Underhood Fuse Box | On left side of engine compartment. |

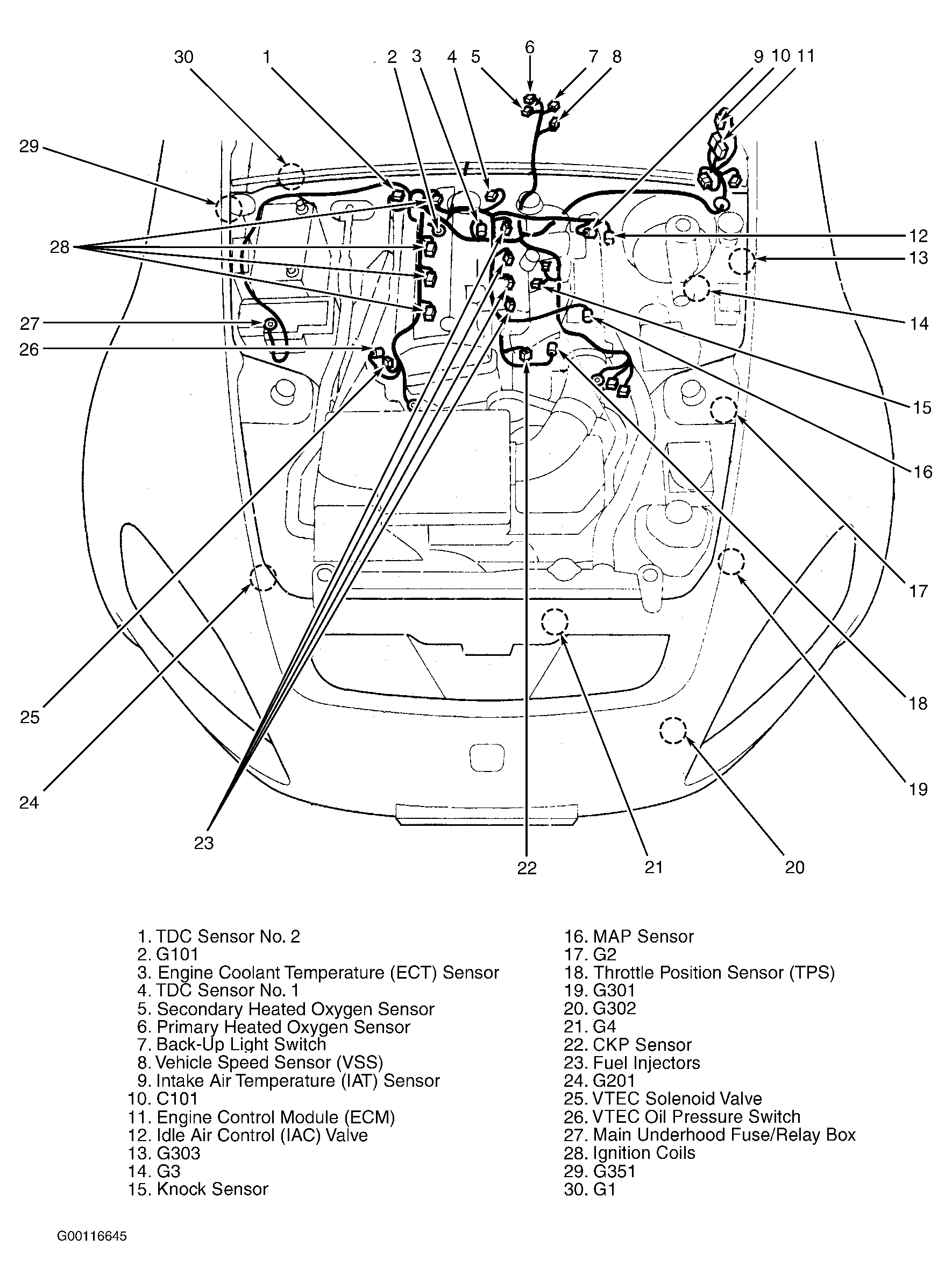

| Main Underhood Fuse/Relay Box | On right side of engine compartment. See Figure . |
| Option Fuse No. 1 | Under left side of dash. |
| Option Fuse No. 2 | Under left side of dash. |

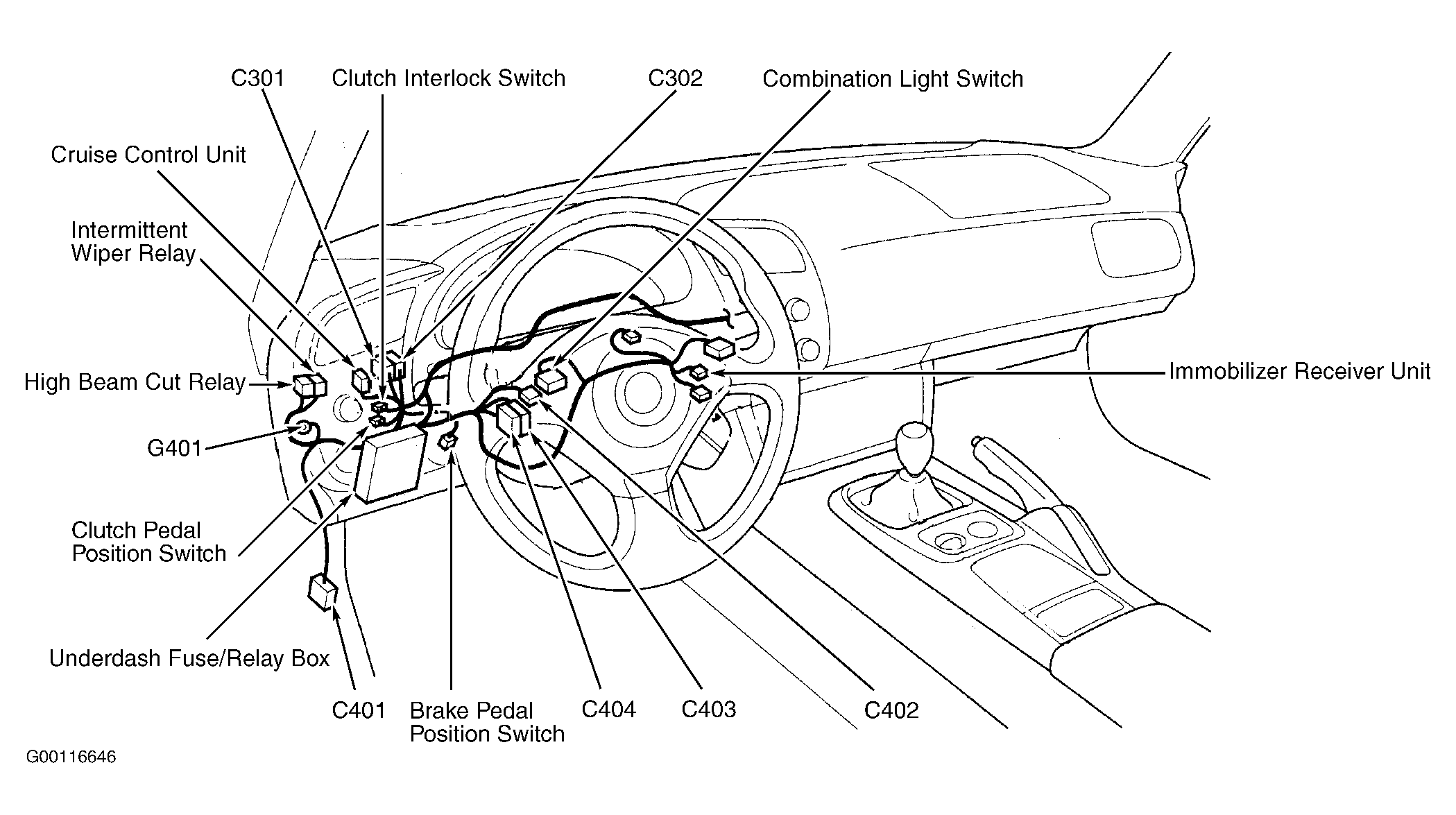

| Underdash Fuse/Relay Box | Under left side of dash. See Figure . |
