Circuit Diagram

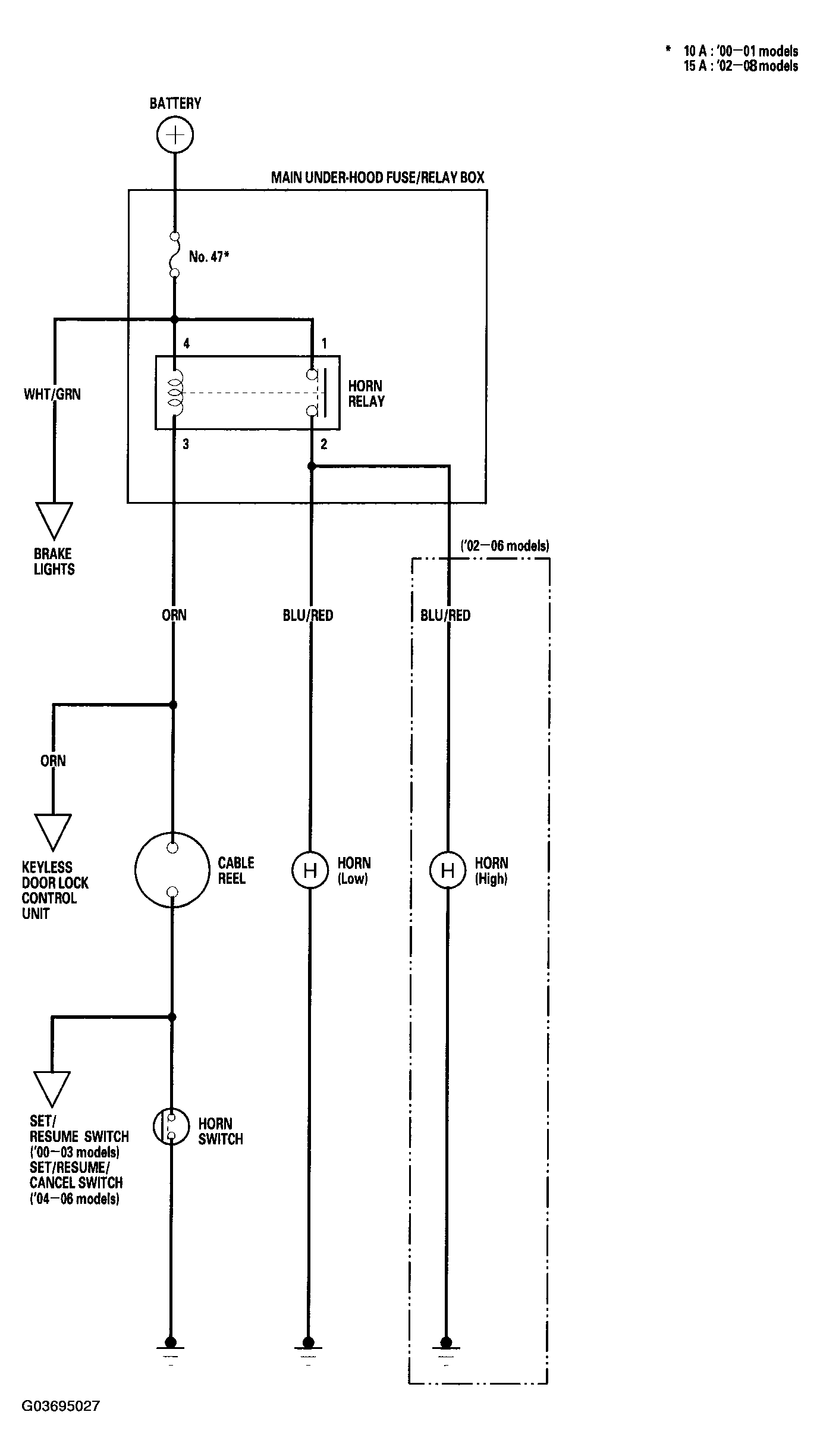

Fig 1: Identifying Horn Circuit Diagram
G03695027Courtesy of AMERICAN HONDA MOTOR CO., INC.
