Intake Manifold Removal and Installation
›
2000-2005 Models
2000-2005 Models
NOTE:
Use new O-rings and gaskets when reassembling.

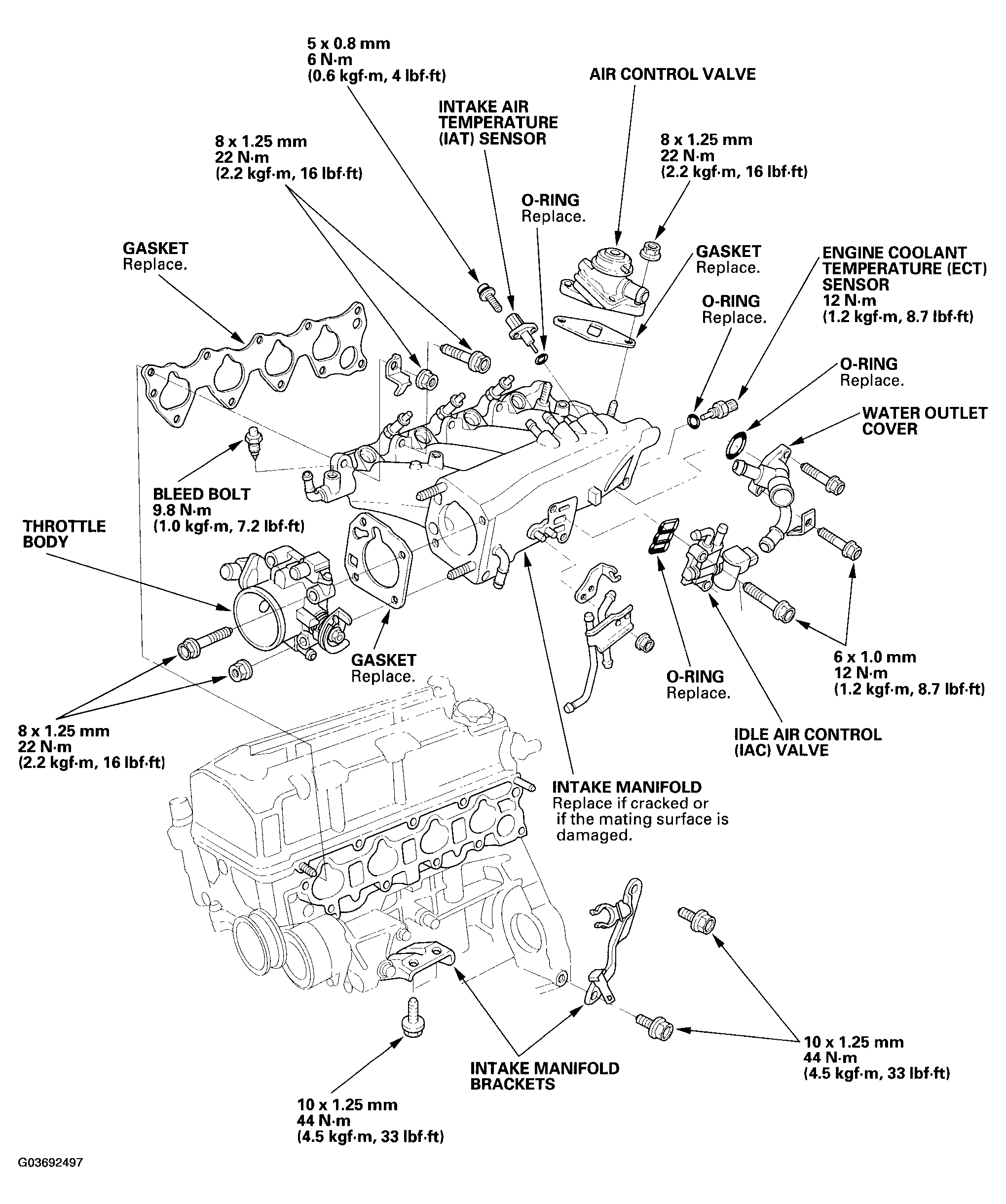

Fig 1: Identifying Intake Manifold Replacement Components - 2000-2005 Models With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
