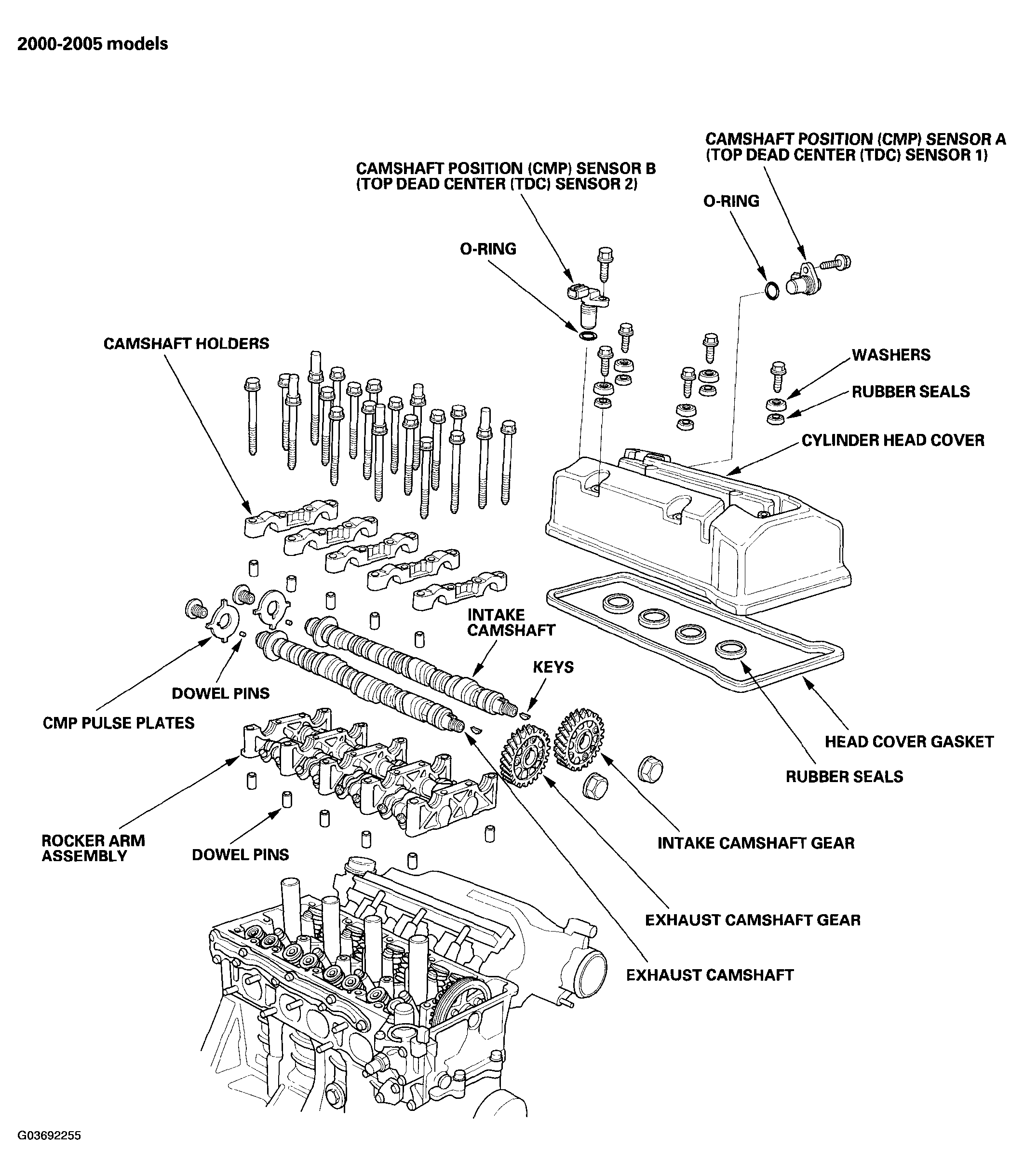

Fig 1: Identifying Engine Assembly Components Location (2000-2005 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

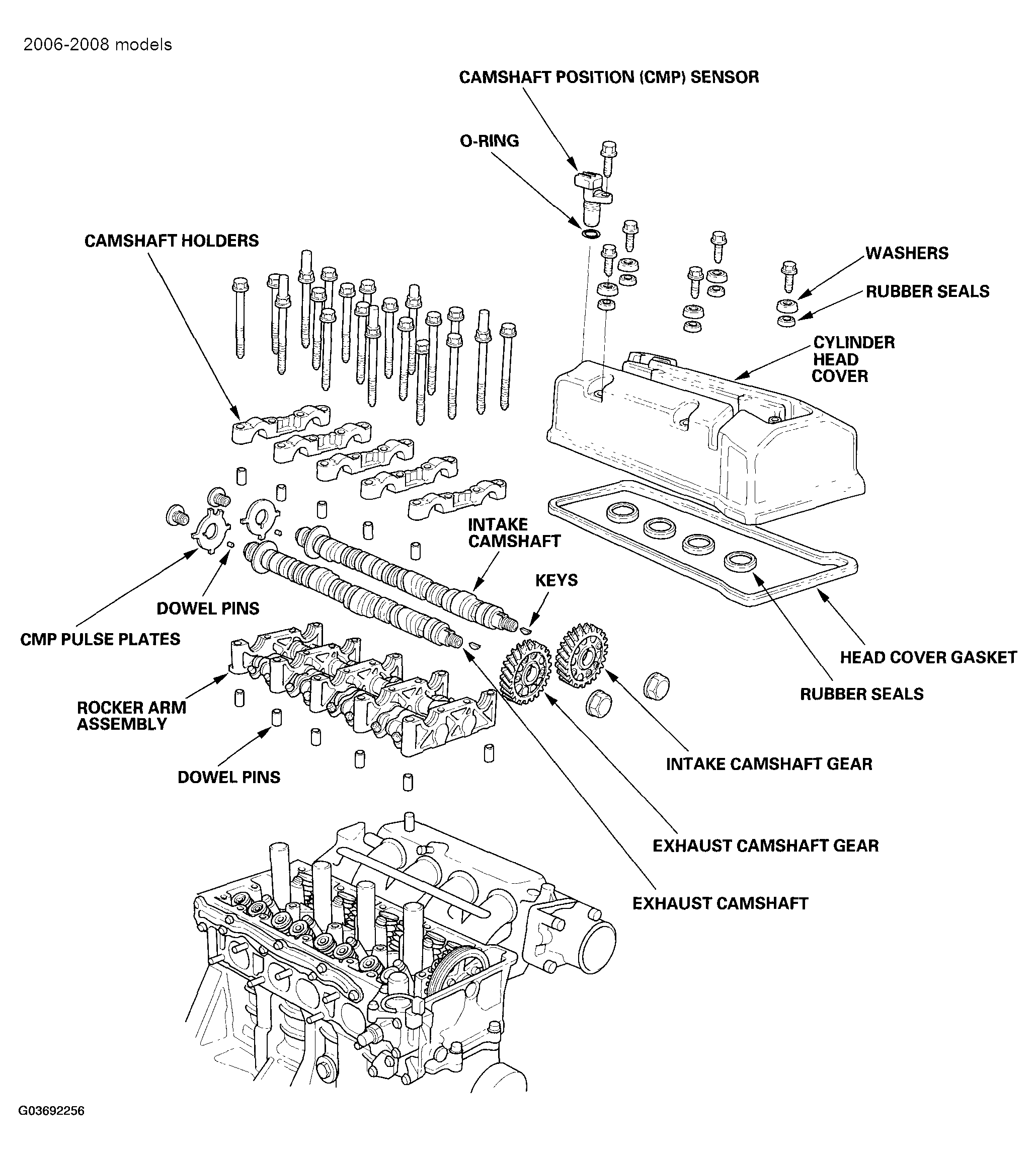

Fig 2: Identifying Engine Assembly Components Location (2006-09 Model) (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

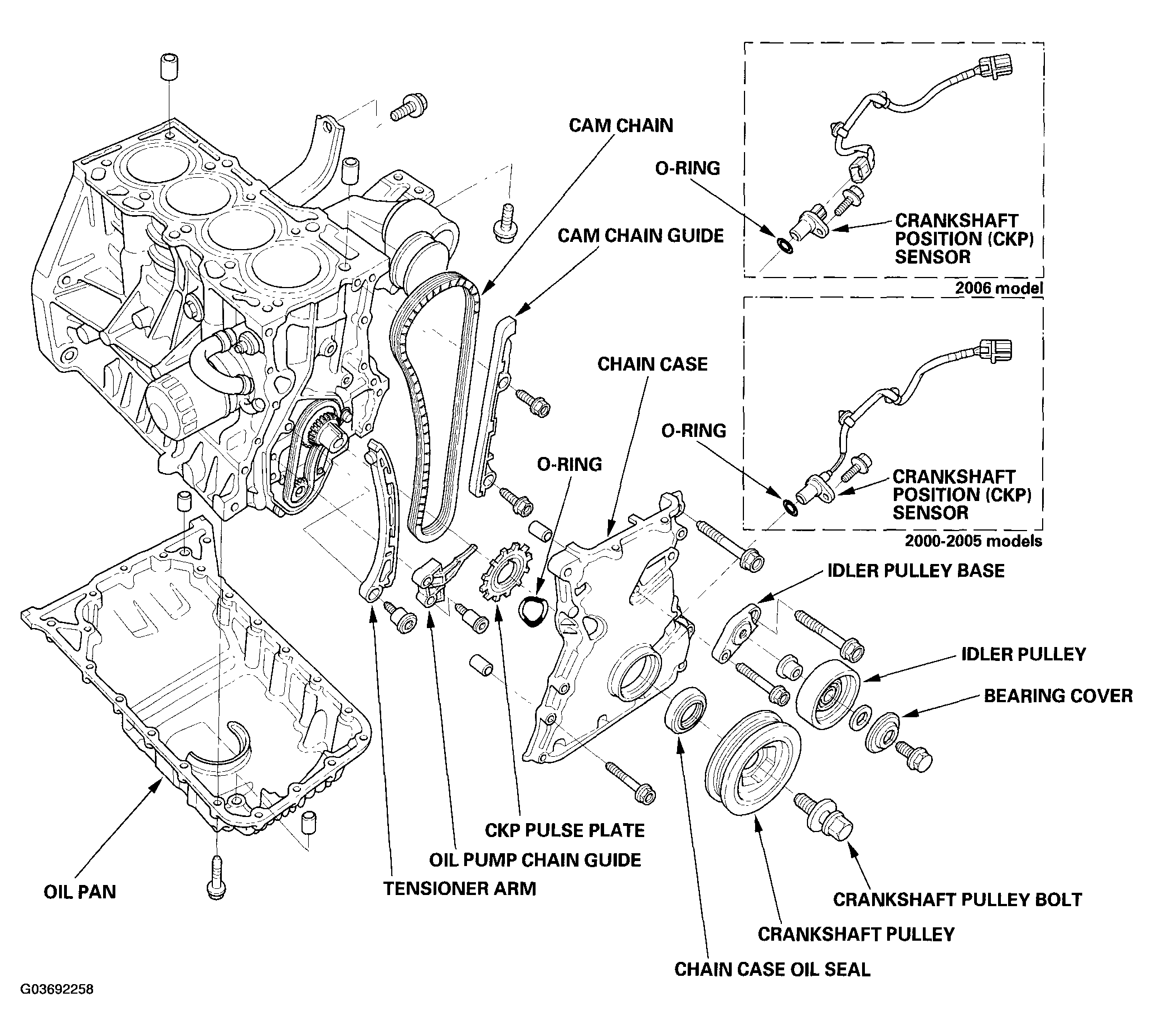

Fig 3: Identifying Engine Assembly Components Location (2006-09 Model) (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

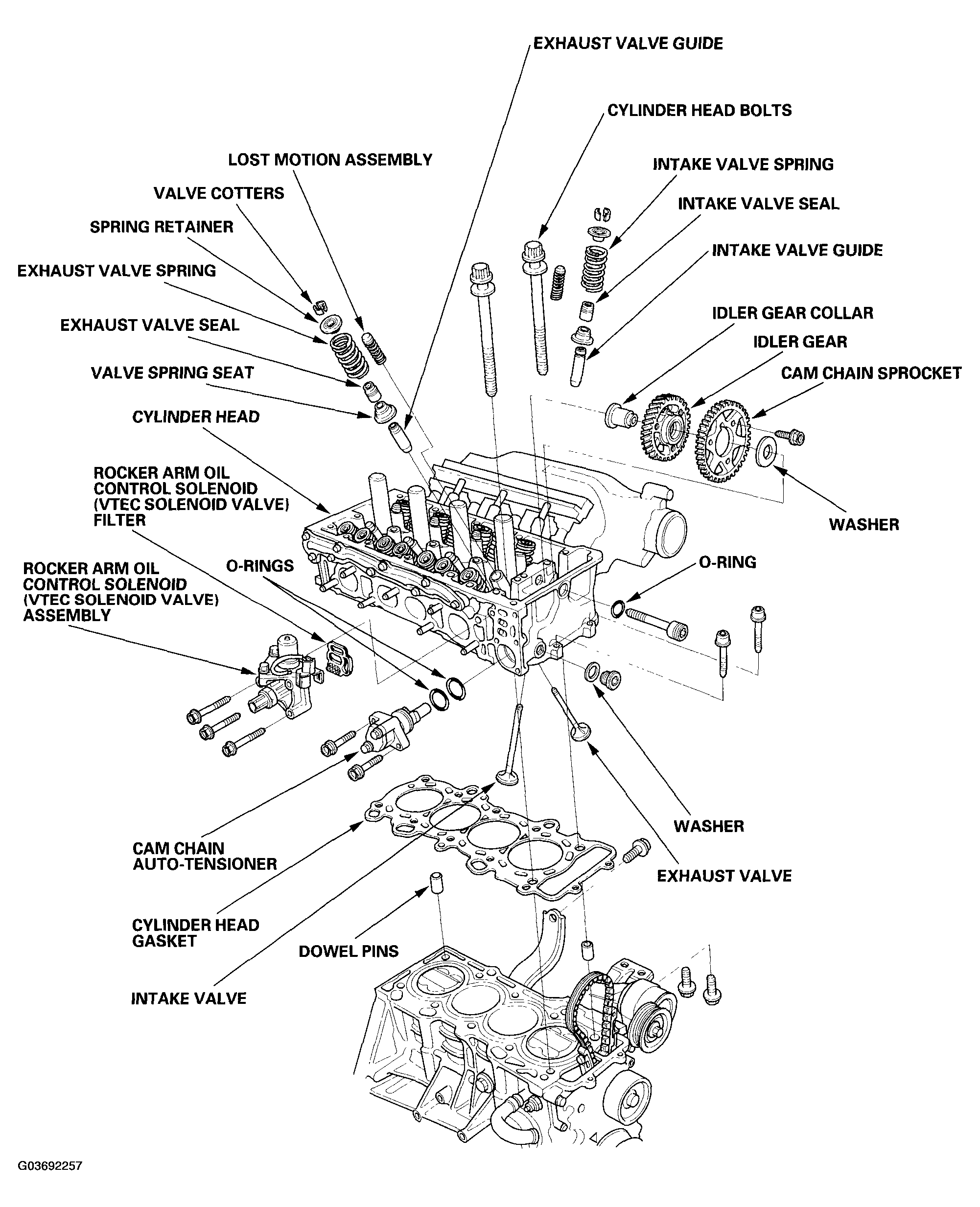

Fig 4: Identifying Engine Assembly Components Location (2006-09 Model) (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
