ECM Inputs and Outputs at Connector B (25P)
ECM Inputs and Outputs at Connector B (25P)

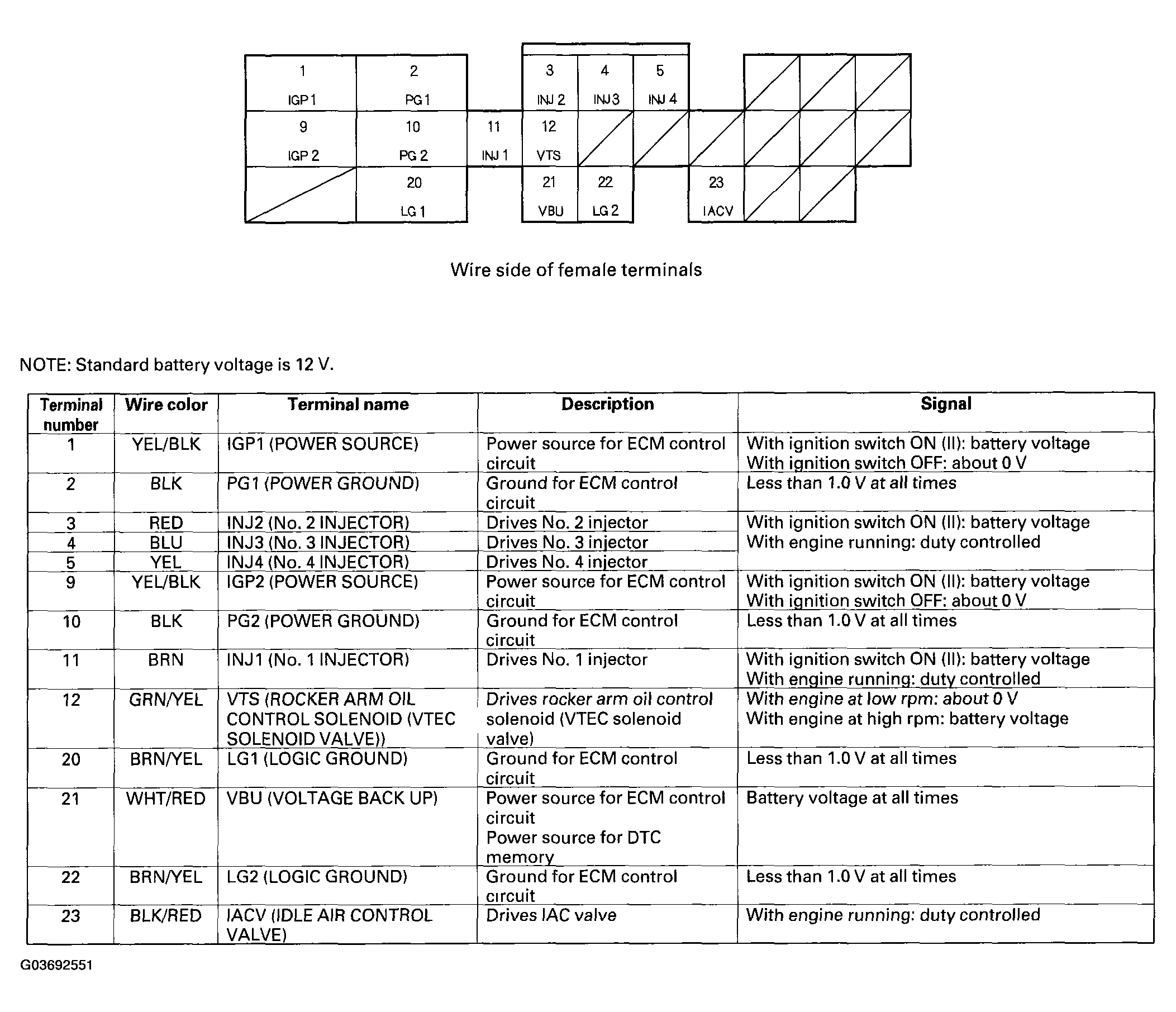

Fig 1: Identifying ECM Inputs And Outputs At Connector B (25P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
