Pump Motor

WARNING: This page is about a different car, the 2009 Honda S2000, 2008 Honda S2000, 2007 Honda S2000, and 2006 Honda S2000. However, it is still accessible from the selected car via links, so may be relevant.

When starting the pressure reducing mode, the pump motor is ON. When stopping ABS operation, the pump motor is OFF.

The reservoir fluid is pumped out by the pump, through the damping chamber, to the master cylinder.

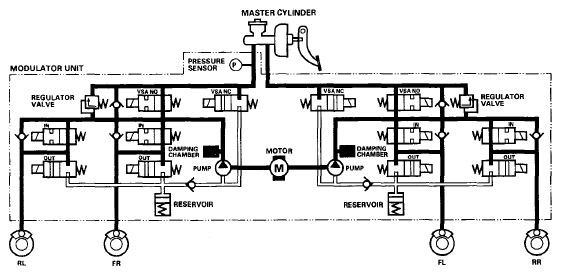

Fig 1: Pump Motor Communication Diagram
G06232134Courtesy of AMERICAN HONDA MOTOR CO., INC.
