Circuit Diagram

WARNING: This page is about a different car, the 2009 Honda S2000 and 2008 Honda S2000. However, it is still accessible from the selected car via links, so may be relevant.

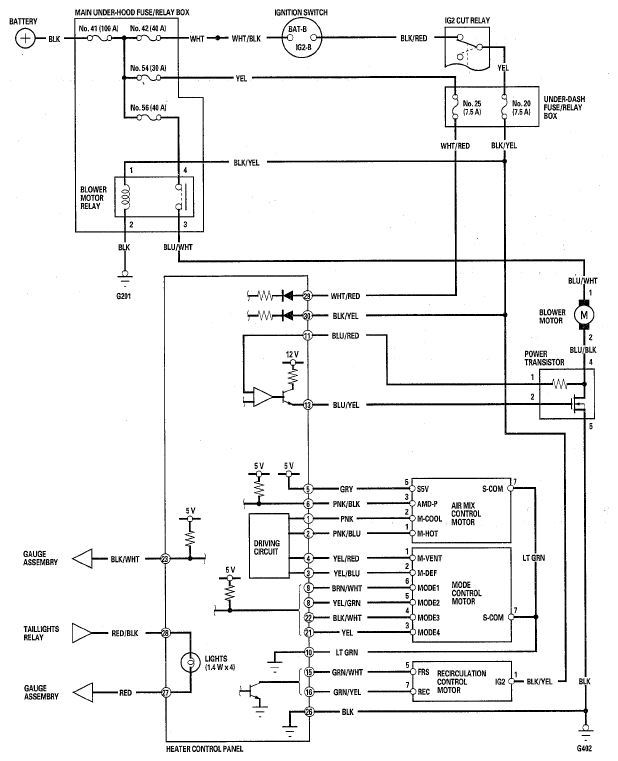

Fig 1: Heater Control Panel Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
