ILCO Immobilizer Key Code Duplicator (99-053)

Publication date: 2003-04-29
Reference number: 99-053

ILCO IMMOBILIZER KEY CODE DUPLICATOR

TECHNICAL SERVICE BULLETIN

Reference Number(s): 99-053, Date of Issue: April 29, 2003

HONDA:	Models with a Type 1, 2, or 3 Immobilizer System - All
CATEGORY:	Tools
APPLIES TO:	Models with a Type 1, 2, or 3 Immobilizer System - All

Superceded Bulletin(s): 99-053, Date of Issue: June 27, 2000

NOTE: Supersedes 99-053, dated June 27, 2000.

SERVICE INFORMATION

The Ilco Immobilizer Key Code Duplicator (Model No. ILCRW2H), manufactured by Silca and supplied by Ilco Unican Corporation, is a portable, lightweight tool that reads the transponder code from a programmed ignition key and duplicates that code into an Ilco programmable key. The Ilco Immobilizer Key Code Duplicator has these features:

You need only one programmed ignition key for duplication.
Customer convenience: you do not need your customer's vehicle or all of the programmed ignition keys (master and valet).
Transponder code duplication takes only seconds after cutting the key blank with a suitable key cutter.
You can make as many duplicate ignition keys as you need.
The tool is secured by an assigned password.
A rechargeable, internal battery gives you portability and more than 4 hours of operating time.
The tool comes with a manufacturer's limited 5-year warranty.

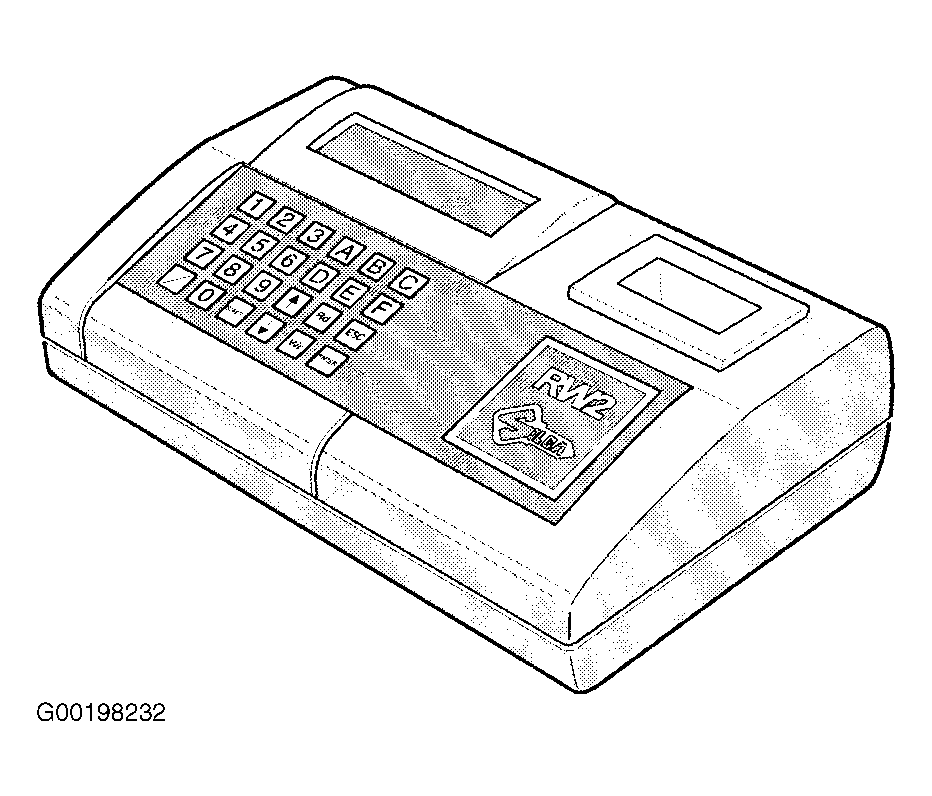

Fig 1: Ilco Immobilizer Key Code Duplicator

The Ilco Immobilizer Key Code Duplicator works only with Ilco programmable key blanks. These key blanks come with no stored transponder codes and have a T5 stamped on the shank or molded into the grip.

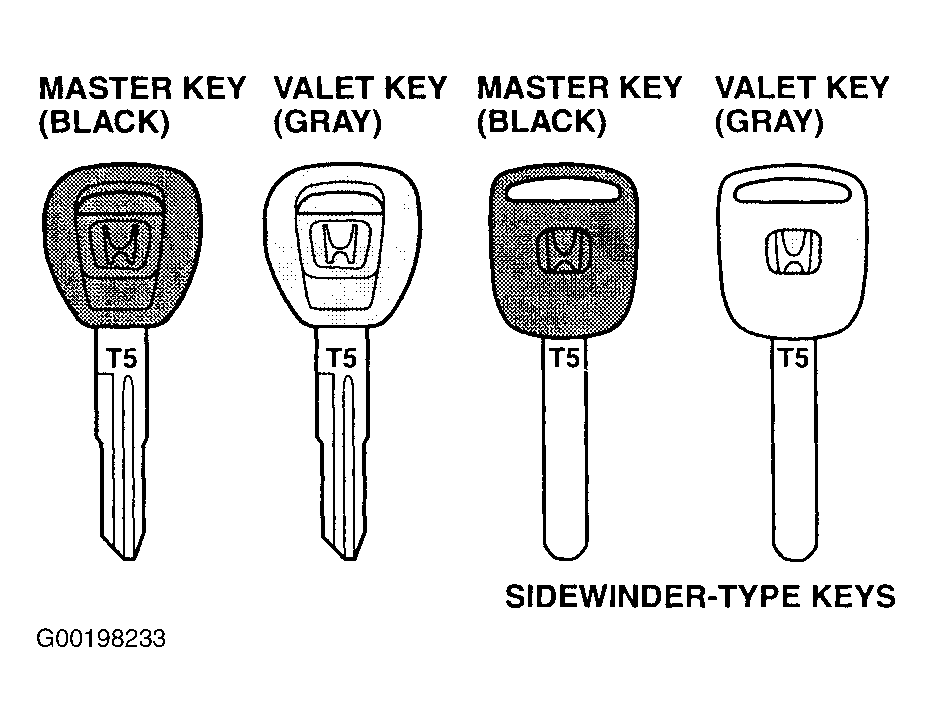

Fig 2: Sidewinder-type Keys

It cannot duplicate any programmed ignition keys with a V stamped on the shank. Those keys are used exclusively with a Type 4 (rolling code) immobilizer system. If you insert a Type 4 key into the key code duplicator, the display reads TRANSPONDER NOT DETECTED.

ADDING AND REPLACING PROGRAMMED IGNITION KEYS

With a programmed ignition key from your customer, you can make additional programmed ignition keys or replacements for lost programmed ignition keys with the Ilco Immobilizer Key Code Duplicator and Ilco programmable key blanks.

Cut the Ilco T5 key blank with a suitable key cutter (see S/B 88-012, CODE KEY CUTTERS - TABLE/PART ORDERING INFORMATION , or S/B 01-077, CUTTING SIDEWINDER-TYPE KEYS WITH THE MATRIX H KEY CUTTING MACHINE ), and then follow the key code duplicator's instruction manual to code the key's transponder with the code of the programmed ignition key.

PARTS INFORMATION

Honda Ilco Master Key Blank (10 Pack): Model No. ILC35113T5H
Honda Ilco Valet Key Blank (10 Pack): Model No. ILC35114T5H
Honda Ilco Master Key Blank (Sidewinder Type) (10 Pack): Model No. ILC35111T5H
Honda Ilco Valet Key Blank (Sidewinder Type) (10 Pack): Model No. ILC35112T5H

ORDERING INFORMATION

To order Ilco programmable key blanks, contact the Honda Tool and Equipment Program, or use the fax order form provided in your Honda Tool and Equipment Program Catalog. You can also order online through the Interactive Network (i N). Click on Service, Tool and Equipment, and then Online Catalog. Click on General Shop Equipment, Body Tools, and then Key Code Duplicator.
