Fuel Tank Vapor Control Valve Replacement

  1. Remove the fuel tank (see FUEL TANK REPLACEMENT ).
  2. Remove the fuel tank vapor control valve (A) from the fuel tank (B).

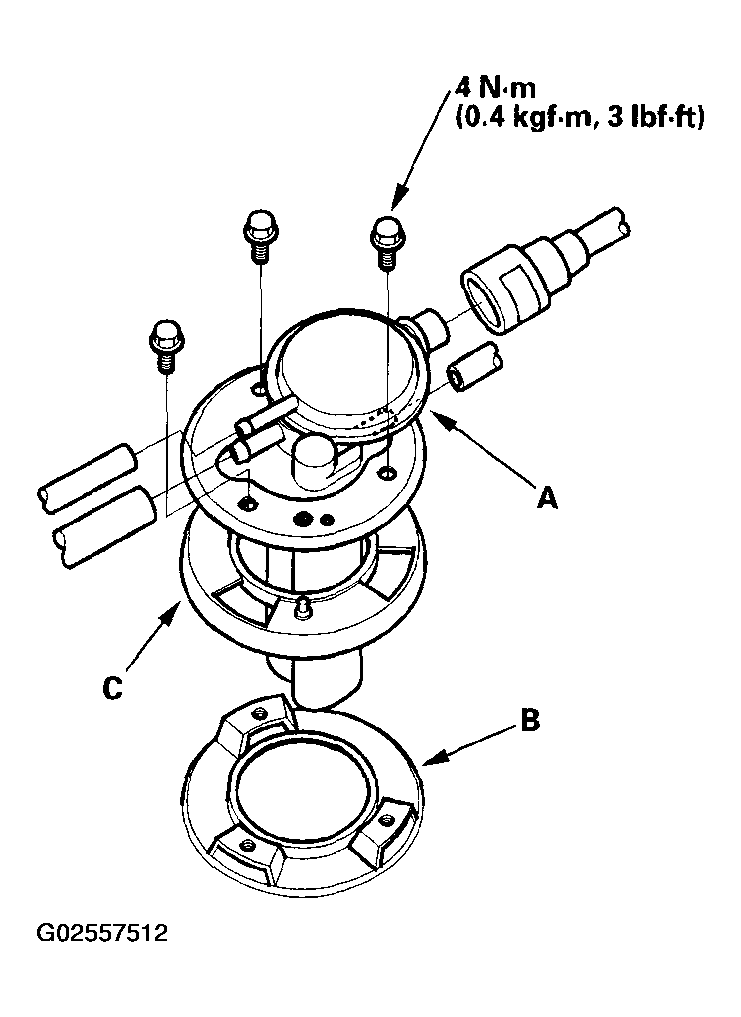

    Fig 1: Removing Fuel Tank Vapor Control Valve From Fuel Tank
    G02557512Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Replace the base gasket (C).
  4. Install the fuel tank vapor control valve (A).
  5. Install the fuel tank (see FUEL TANK REPLACEMENT ).
