Hydraulic System Bleeding
CAUTION:
Do not spill brake fluid on painted surfaces. To avoid paint damage, clean any spilled brake fluid with a clean cloth and clear water, immediately.
NOTE:
Manufacturer recommends using genuine Honda DOT 3 brake fluid. Using a non-Honda brake fluid can cause corrosion and decrease life of brake system.
- Make sure the brake fluid level in the reservoir is to the "max" upper level line. See Fig 1 .
- Slide a piece of clear plastic hose over the first bleed screw, and submerge the other end in a container of new brake fluid.
- Have someone slowly pump the brake pedal several times, then apply steady pressure.

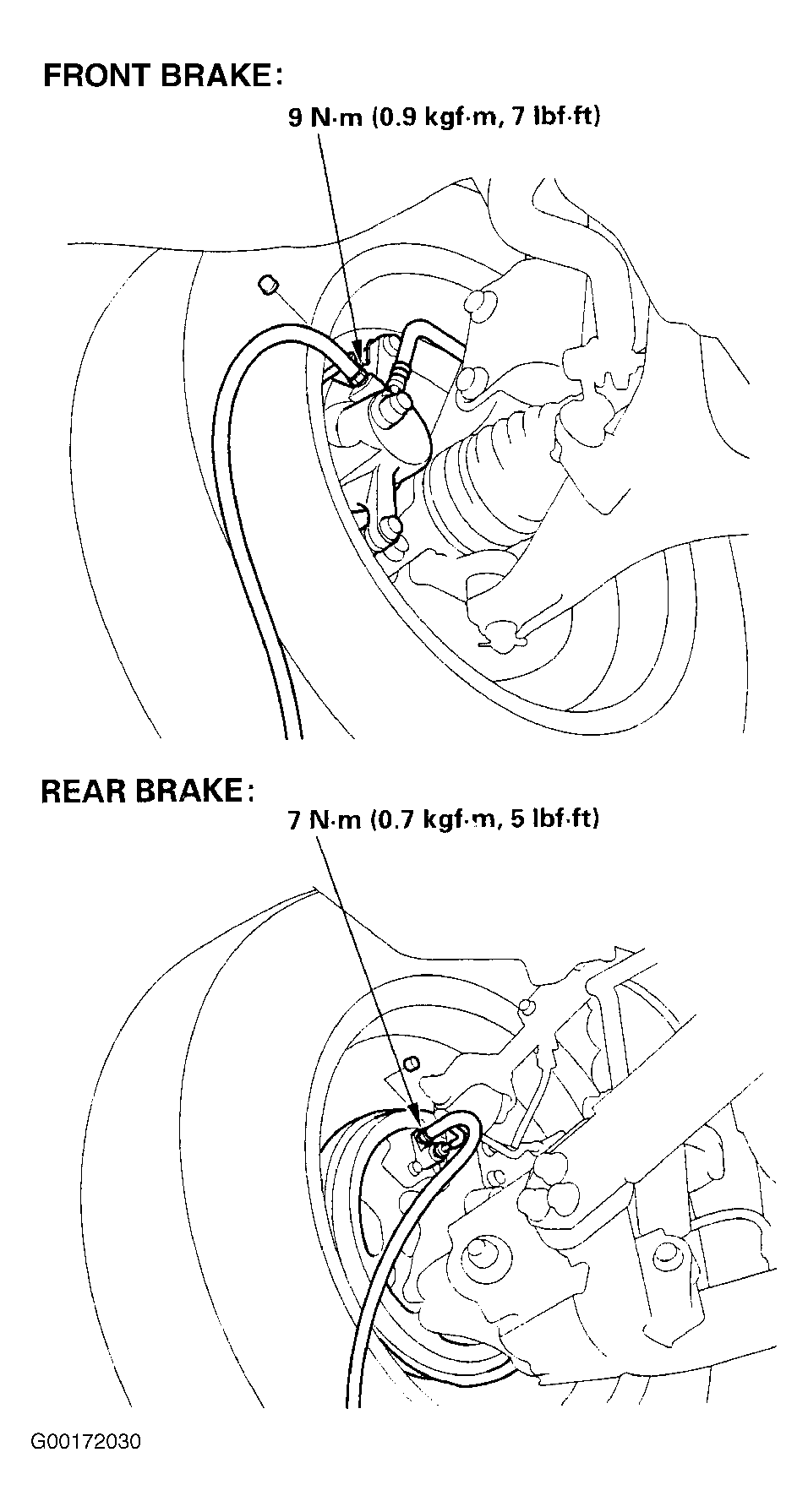

- Loosen the left front brake bleed screw to allow air to escape from the system. Then tighten the bleed screw securely. See Fig 2 .
- Repeat the procedure for each wheel in the sequence shown below until air bubbles no longer appear in the fluid. See BRAKELINE BLEEDING SEQUENCE
.BRAKELINE BLEEDING SEQUENCE
Application Sequence Civic LF, RF, RR, LR - Refill the master cylinder reservoir to the "max" upper level line.
