Fuel Supply System: Notes

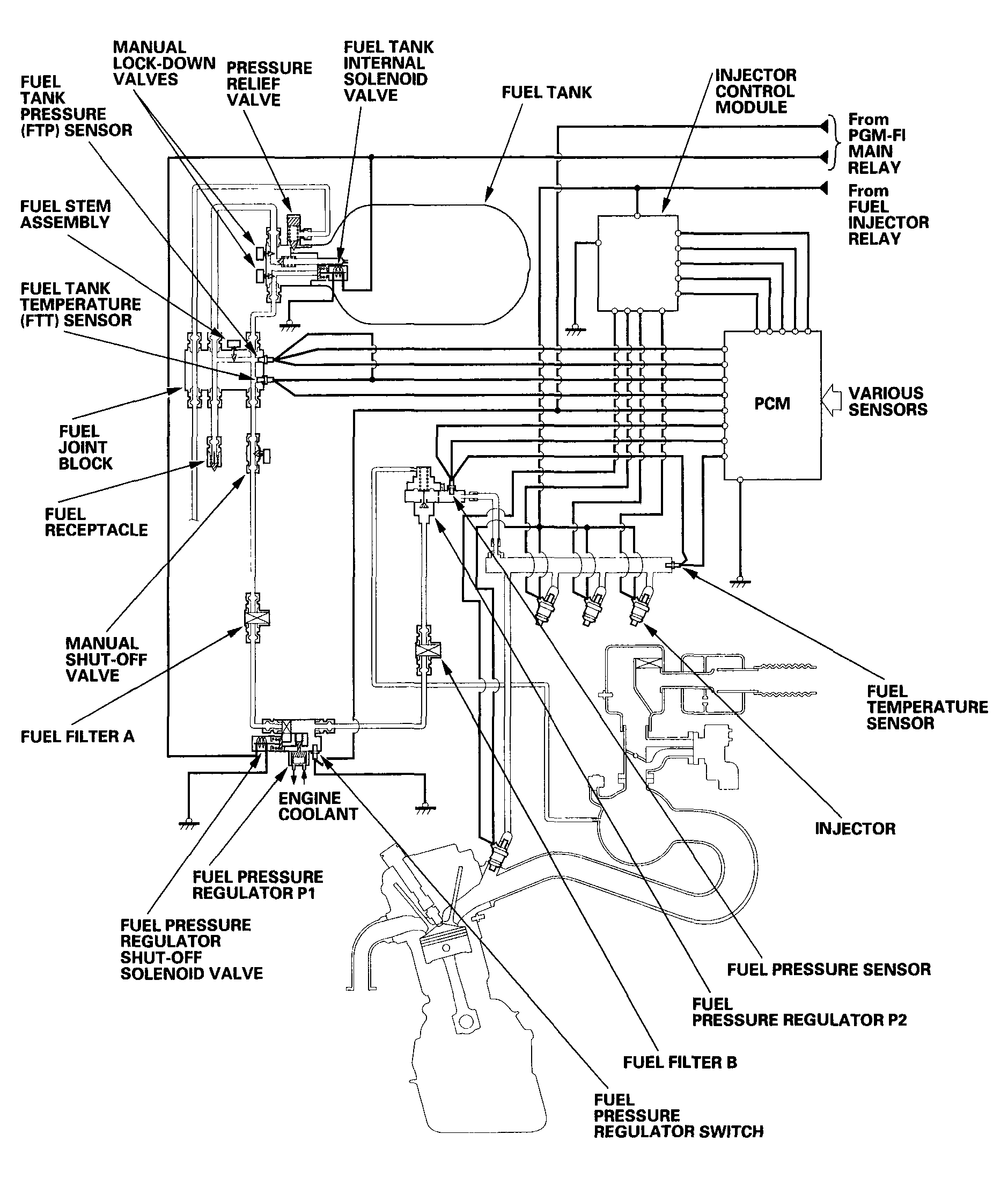

The fuel supply system consists of the fuel tank, injectors, fuel tank pressure (FTP) sensor, fuel tank temperature (FTT) sensor, fuel pressure sensor, fuel temperature sensor, injector control module, injector relay, fuel pressure regulator shut-off solenoid valve, fuel tank internal solenoid valve, fuel pressure regulator P1, fuel pressure regulator P2, fuel pressure regulator switch, fuel filters, and manual shut-off valve.
