| Underdash Fuse/Relay Box |

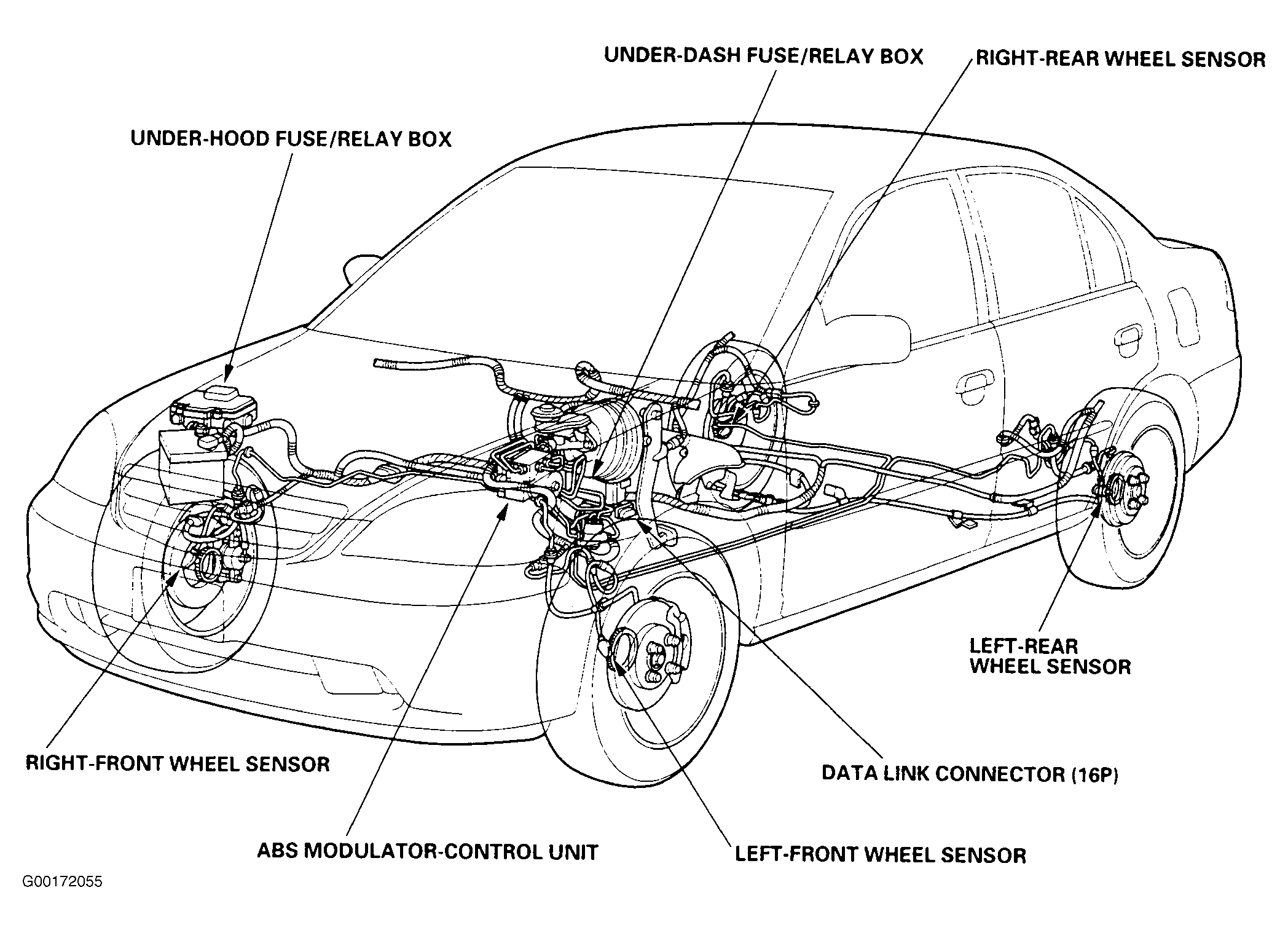

Under left side of dash. See Fig 1
. |
| Underhood Fuse/Relay Box |
Right side of engine compartment. See Fig 1
. |
| ABS Modulator Control Unit |
Left side of engine compartment. See Fig 1
. |
| Wheel Speed Sensor (4) |
At respective wheel. See Fig 1
. |
