Continuously Variable Automatic Transmission (CVT)
›
CVT
›
System Description
›
Power Flow
›
Transmission Cutaway View
Transmission Cutaway View

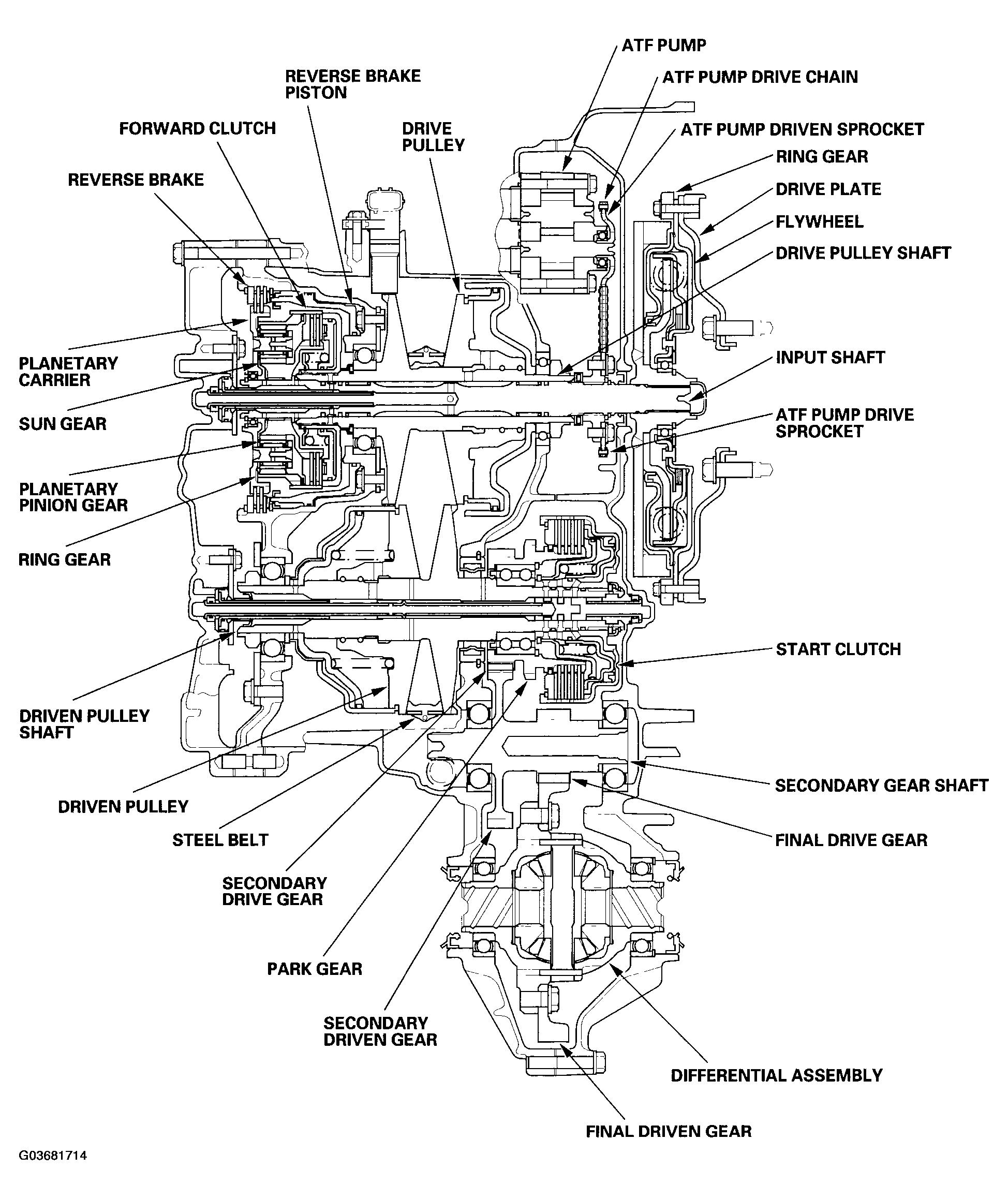

Fig 1: Transmission Cutaway View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
