Gear Position Switch Test: Civic

1. Locate gear position switch on end of transaxle. Disconnect gear position switch 10-pin connector. See Fig 1.
2. Check for continuity between specified terminals of gear position switch with shifter in appropriate positions. See A/T GEAR POSITION SWITCH CONTINUITY  table. Replace gear position switch if continuity does not exist between specified terminals.

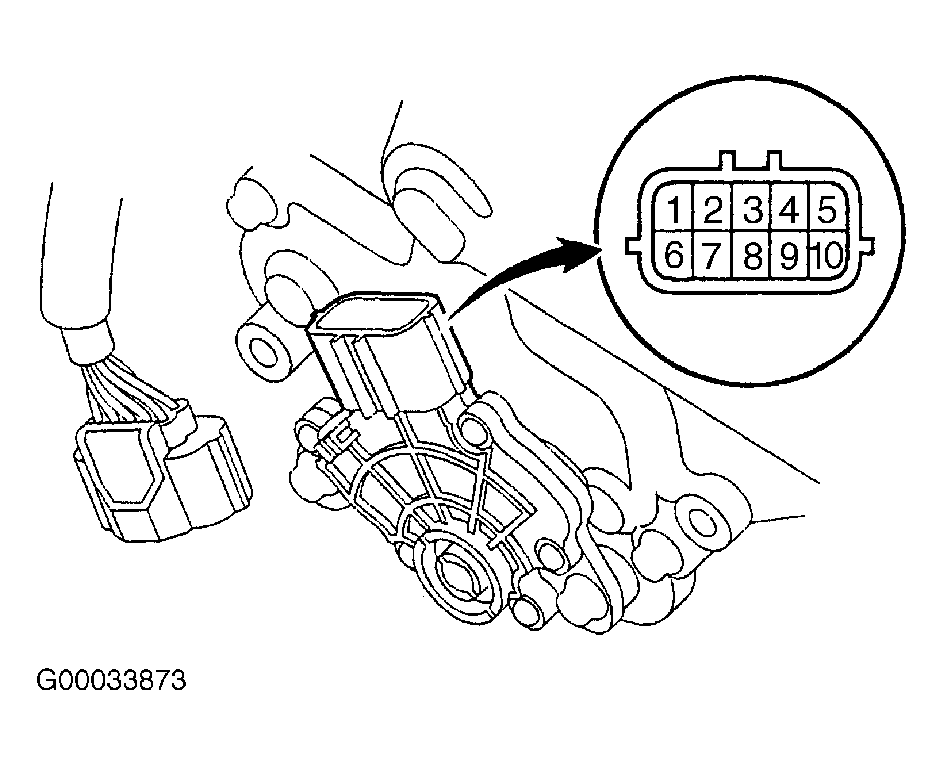

Fig 1: Identifying Gear Position Switch Terminals (Civic)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
