Pin Voltage Tests

CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION before disconnecting battery.
CAUTION: Before disconnecting battery, obtain anti-theft code for radio. After battery is reconnected, the word CODE will appear on radio display. Enter 5-digit anti-theft code using select buttons and radio will begin working. If code is entered wrong 10 times, leave radio on at least one hour and enter code correctly. Any time radio power is lost, pre-selected radio stations will have to be set. For more information, see owners manual.
NOTE: Unless stated otherwise in testing procedures, preform all voltage tests using a Digital Volt-Ohmmeter (DVOM) with a minimum 10-megohm input impedance. Carefully backprobe PCM harness connector using Backprobe Set (07SAZ-001000A) to avoid connector damage. Voltage readings may vary slightly due to battery condition or charging rate.
NOTE: PCM may also be referred to as ECM. Generator may also be referred to as alternator.

Pin voltage charts are supplied to reduce diagnostic time. Checking pin voltage at the PCM connector determines whether PCM is receiving and transmitting proper voltage signals. Diagnostic charts may also help determine if PCM harness is shorted or open. See Fig 1-Fig 37 .

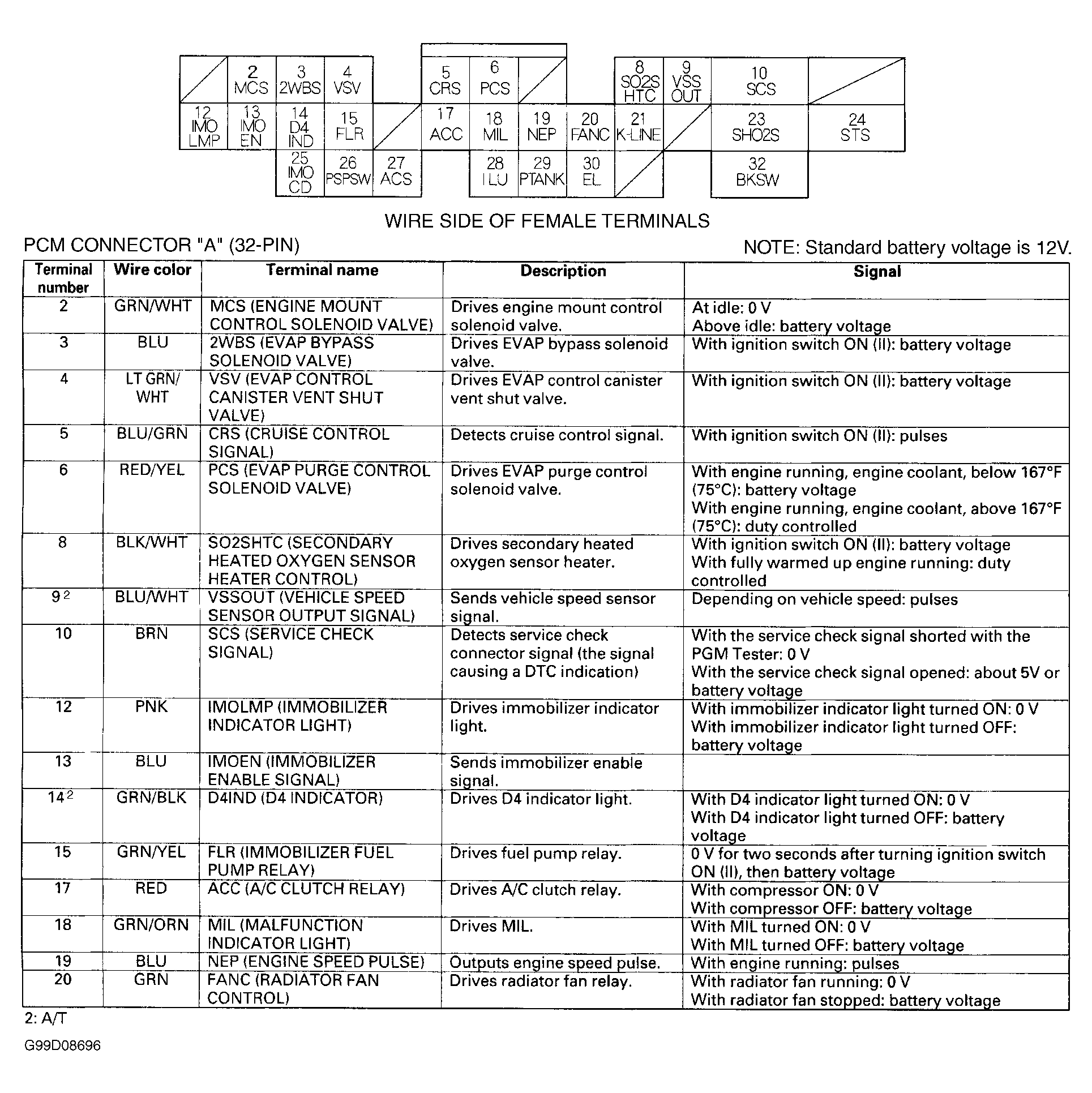

Fig 1: Identifying PCM Connector "A" (32-Pin Connector) Terminals & Pin Voltages (Accord 2.3L - 1 Of 5)
G99D08696Courtesy of AMERICAN HONDA MOTOR CO., INC.

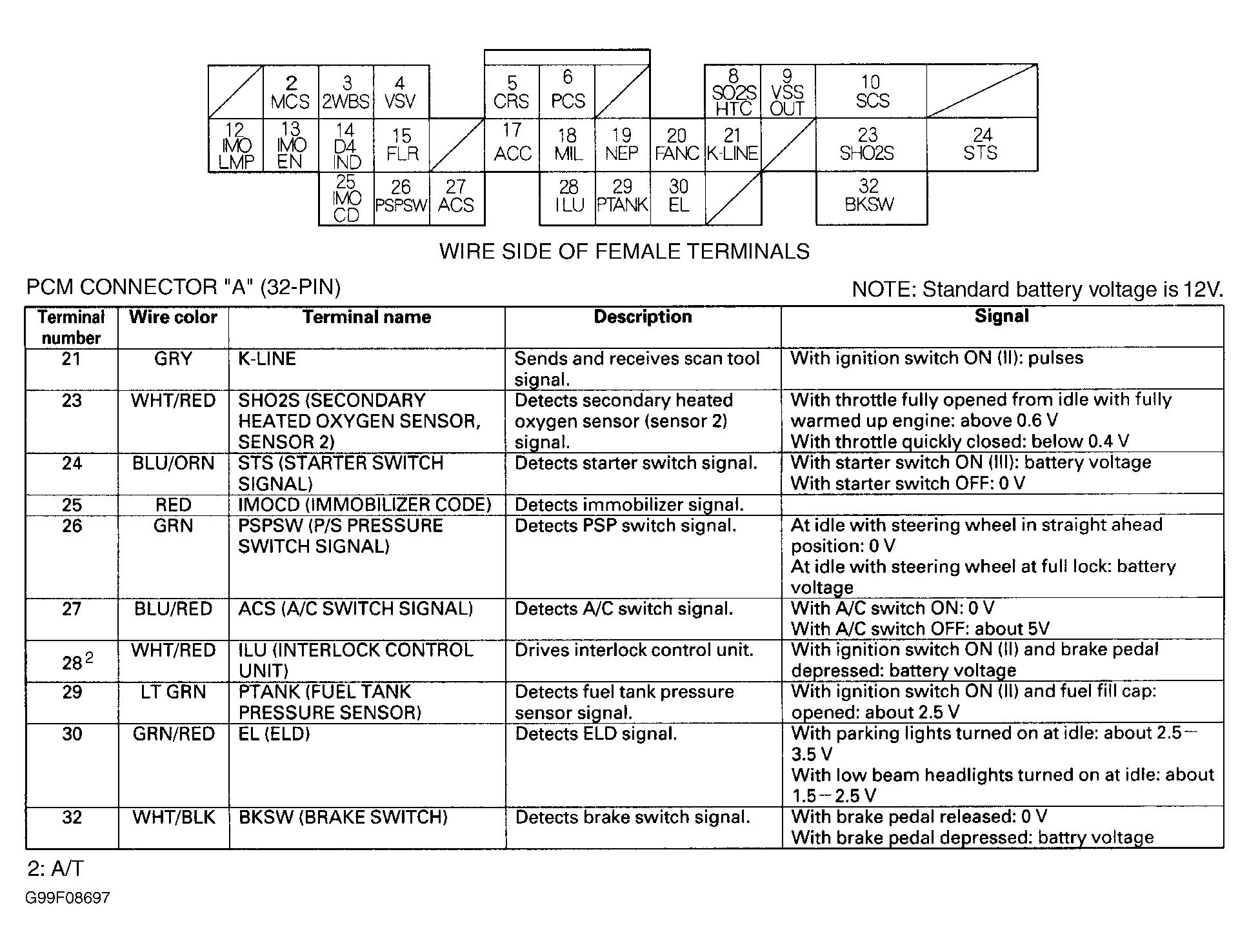

Fig 2: Identifying PCM Connector "A" (32-Pin Connector) Terminals & Pin Voltages (Accord 2.3L - 2 Of 5)
G99F08697Courtesy of AMERICAN HONDA MOTOR CO., INC.

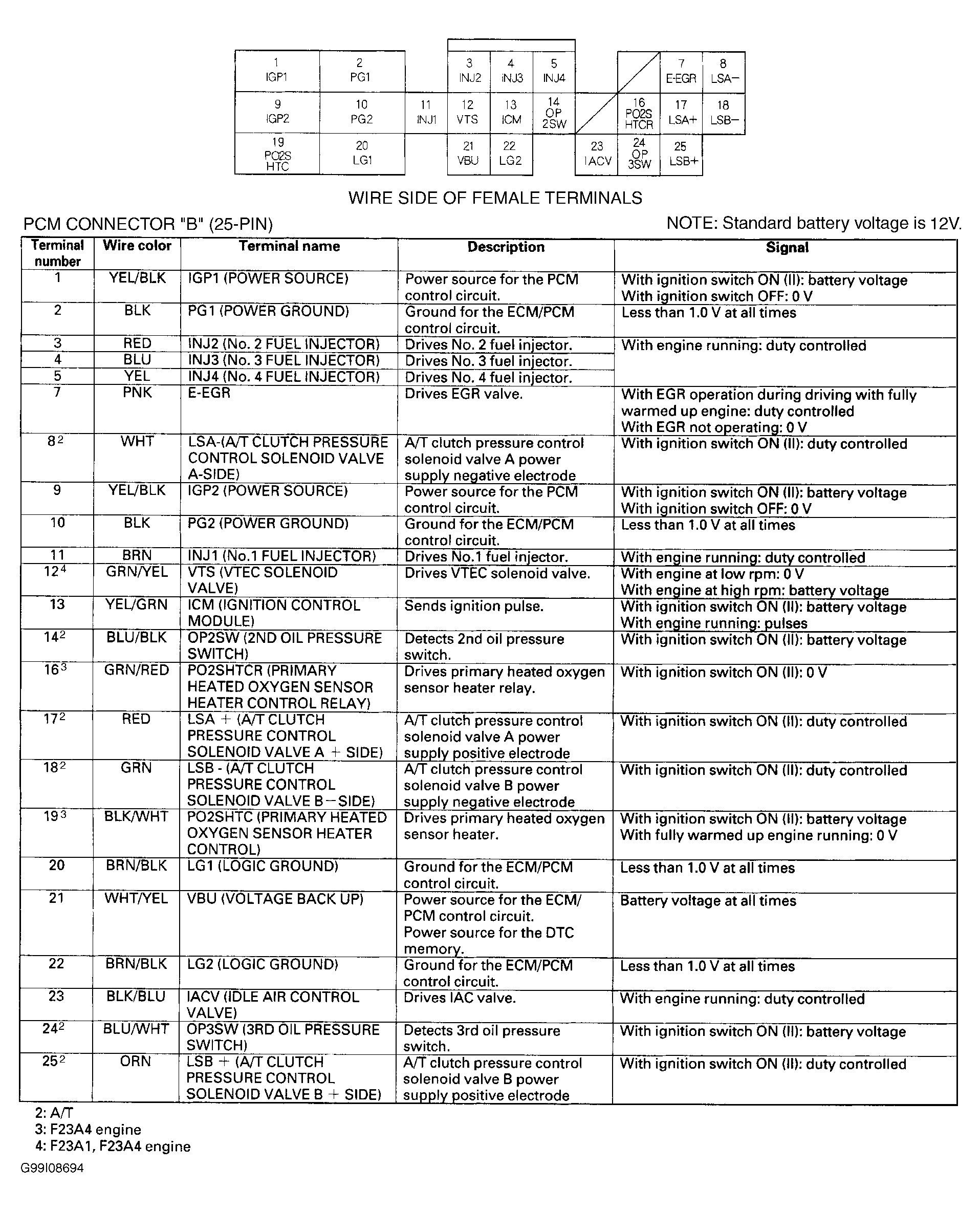

Fig 3: Identifying PCM Connector "B" (25-Pin Connector) Terminals & Pin Voltages (Accord 2.3L - 3 Of 5)
G99I08694Courtesy of AMERICAN HONDA MOTOR CO., INC.

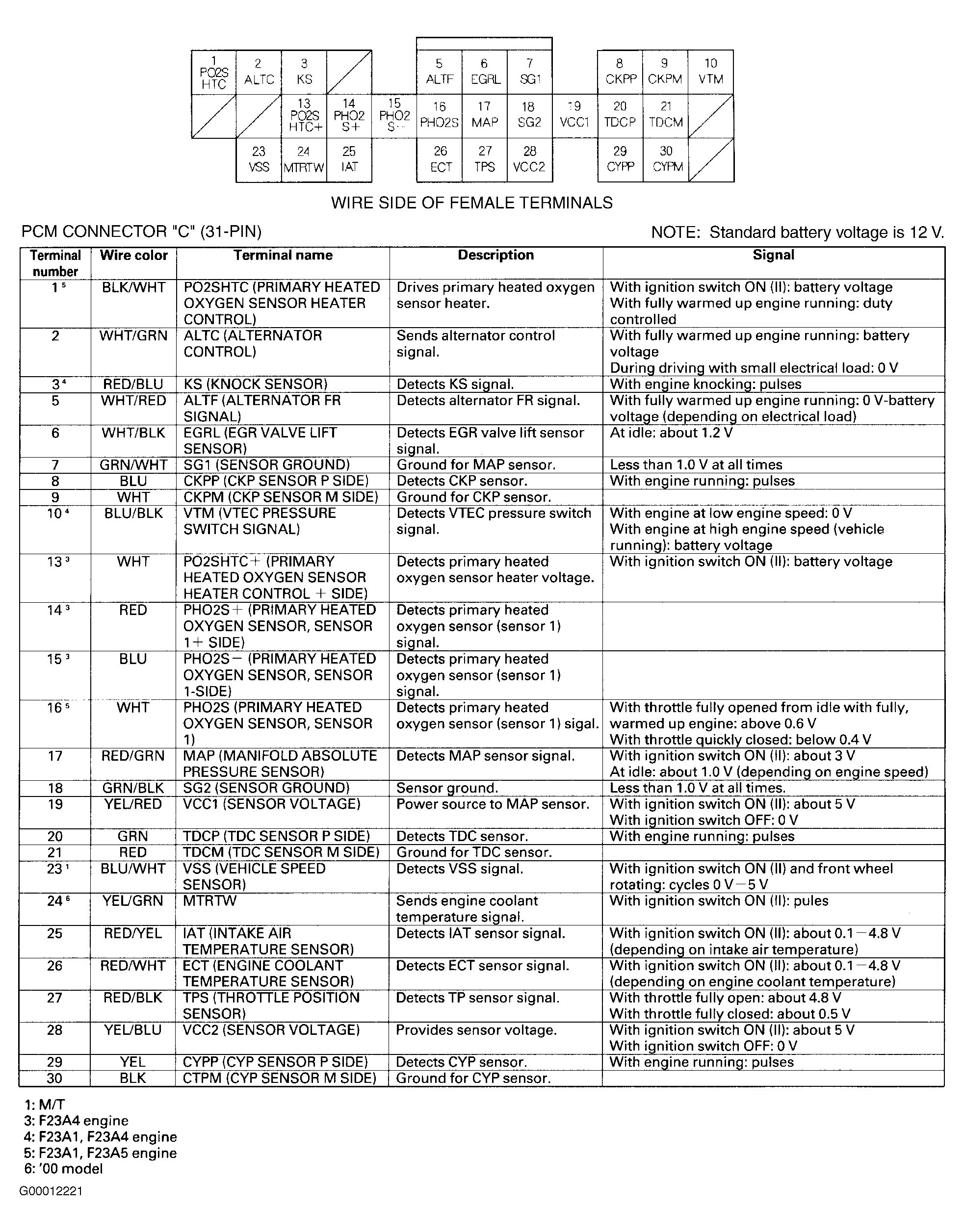

Fig 4: Identifying PCM Connector "C" (31-Pin Connector) Terminals & Pin Voltages (Accord 2.3L - 4 Of 5)
G00012221Courtesy of AMERICAN HONDA MOTOR CO., INC.

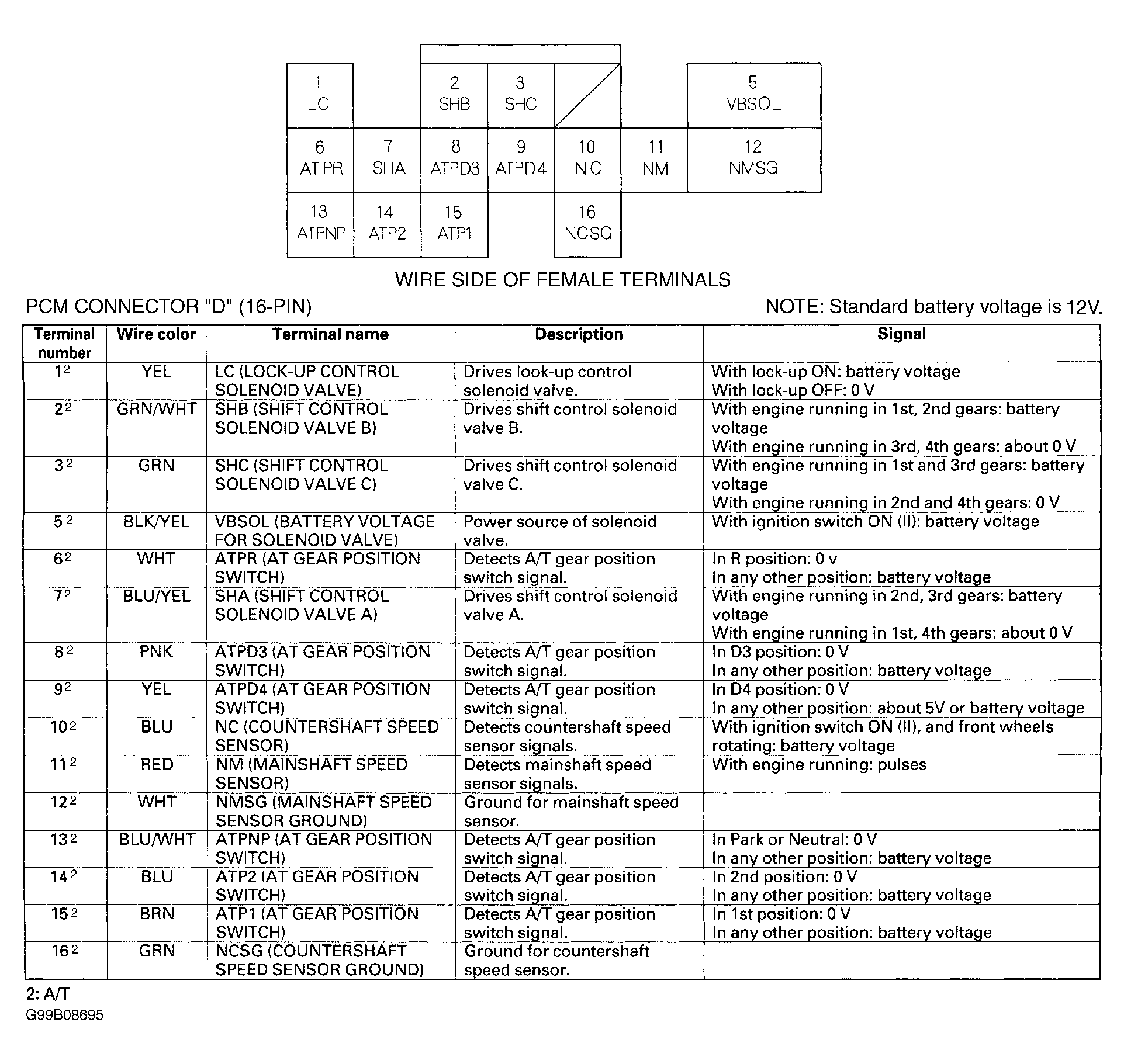

Fig 5: Identifying PCM Connector "D" (16-Pin Connector) Terminals & Pin Voltages (Accord 2.3L - 5 Of 5)
G99B08695Courtesy of AMERICAN HONDA MOTOR CO., INC.

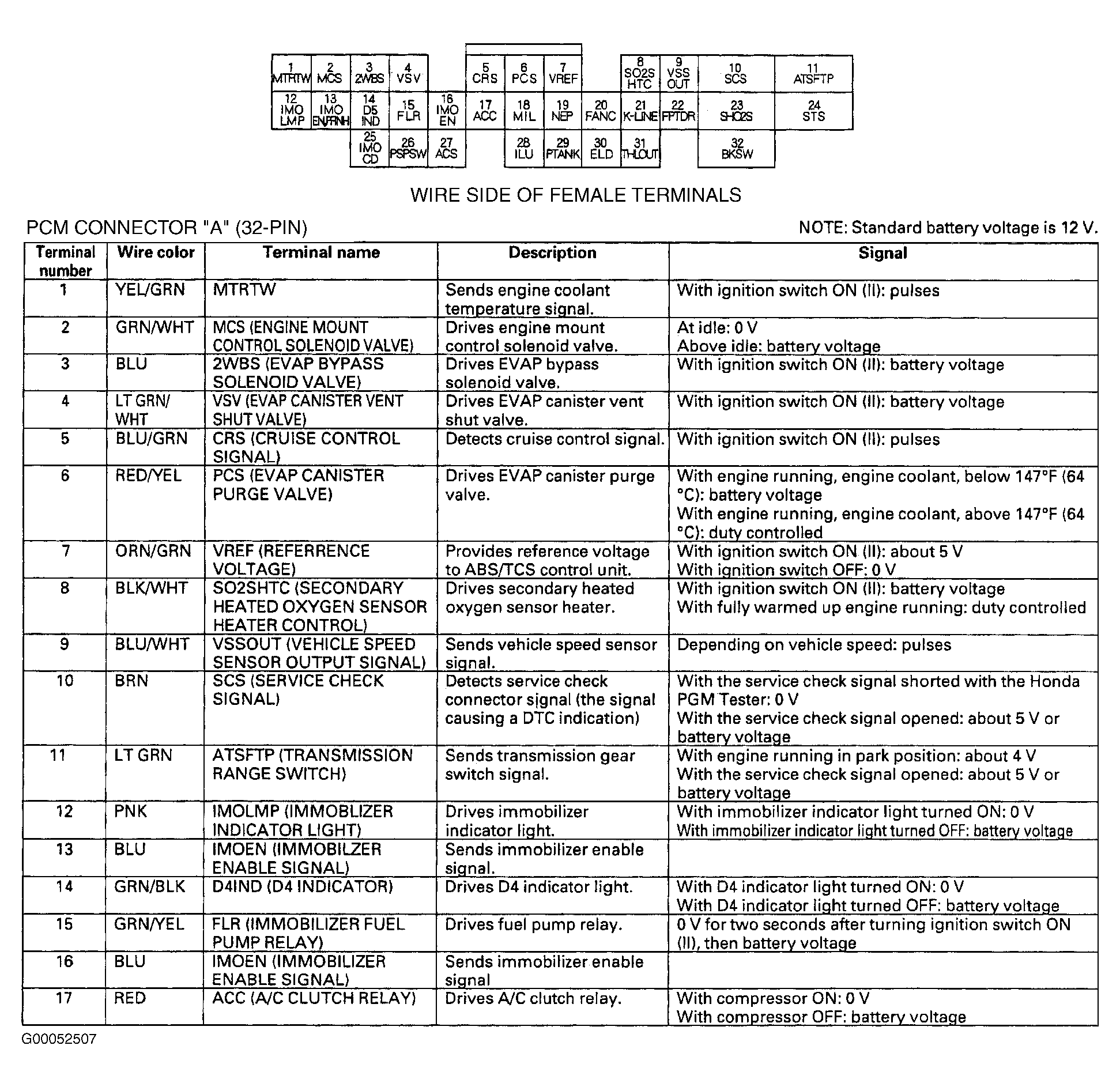

Fig 6: Identifying PCM Connector "A" (32-Pin Connector) Terminals & Pin Voltages (Accord 3.0L - 1 Of 5)
G00052507Courtesy of AMERICAN HONDA MOTOR CO., INC.

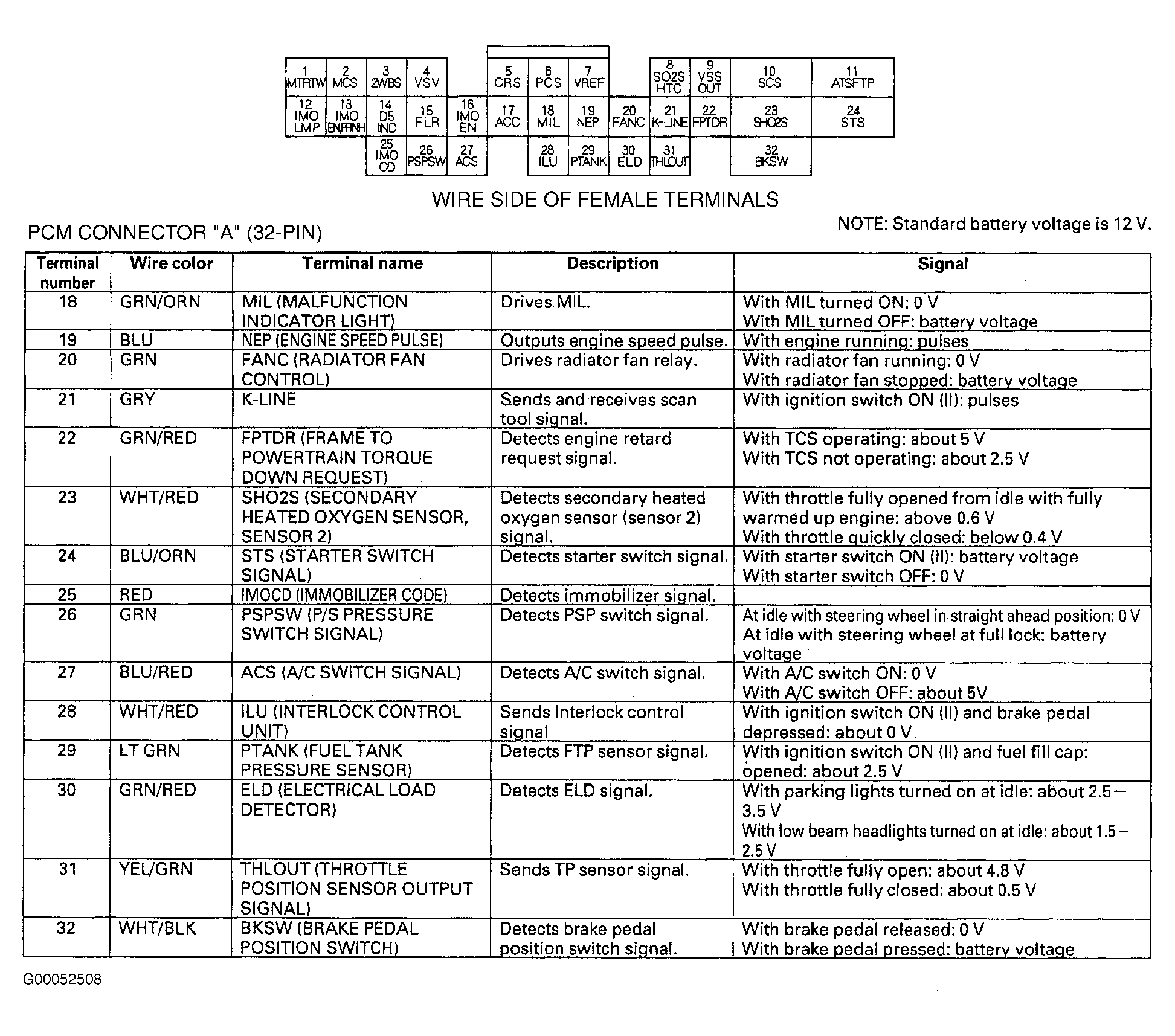

Fig 7: Identifying PCM Connector "A" (32-Pin Connector) Terminals & Pin Voltages (Accord 3.0L - 2 Of 5)
G00052508Courtesy of AMERICAN HONDA MOTOR CO., INC.

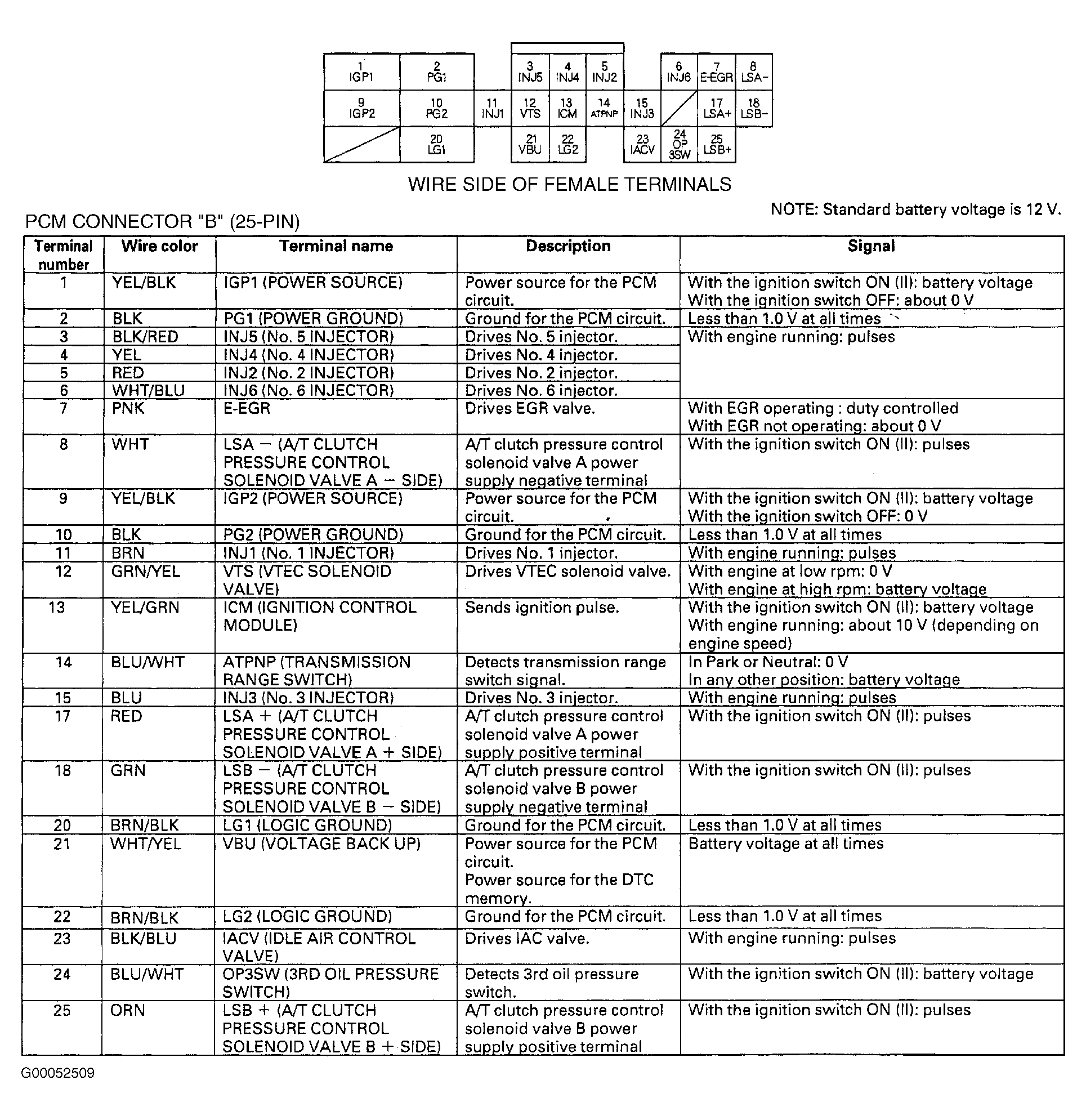

Fig 8: Identifying PCM Connector "B" (25-Pin Connector) Terminals & Pin Voltages (Accord 3.0L - 3 Of 5)
G00052509Courtesy of AMERICAN HONDA MOTOR CO., INC.

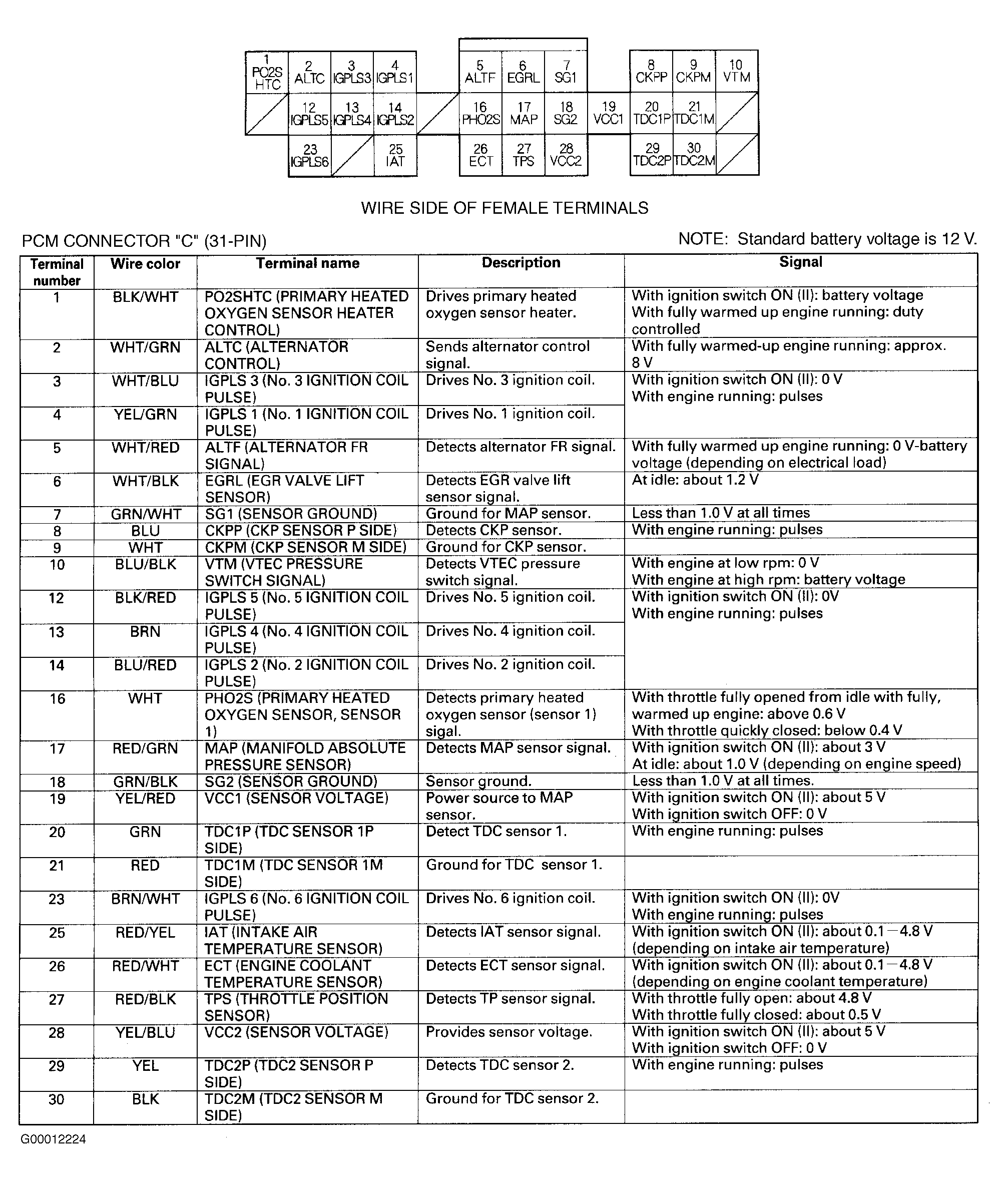

Fig 9: Identifying PCM Connector "C" (31-Pin Connector) Terminals & Pin Voltages (Accord 3.0L - 4 Of 5)
G00012224Courtesy of AMERICAN HONDA MOTOR CO., INC.

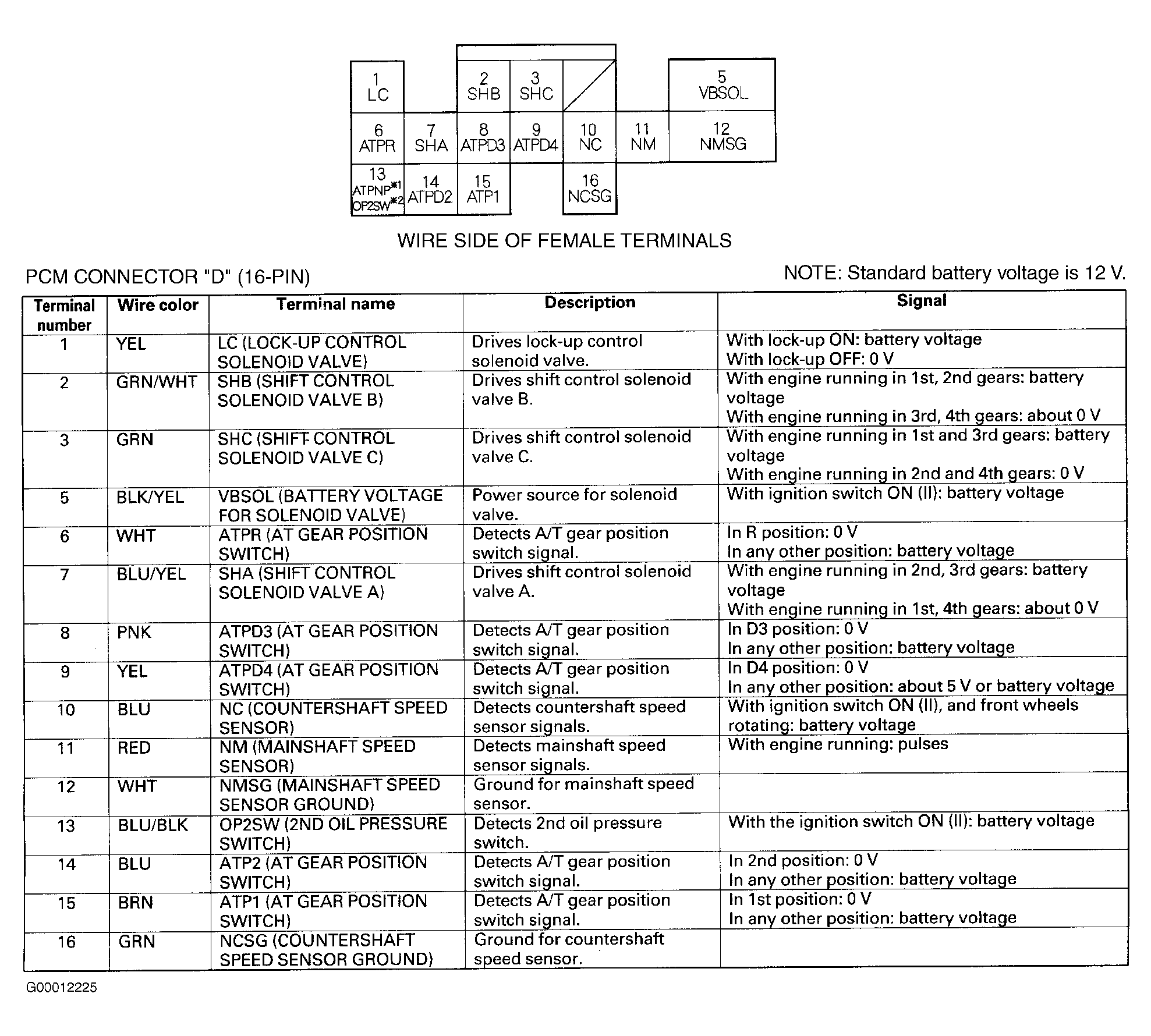

Fig 10: Identifying PCM Connector "D" (16-Pin Connector) Terminals & Pin Voltages (Accord 3.0L - 5 Of 5)
G00012225Courtesy of AMERICAN HONDA MOTOR CO., INC.

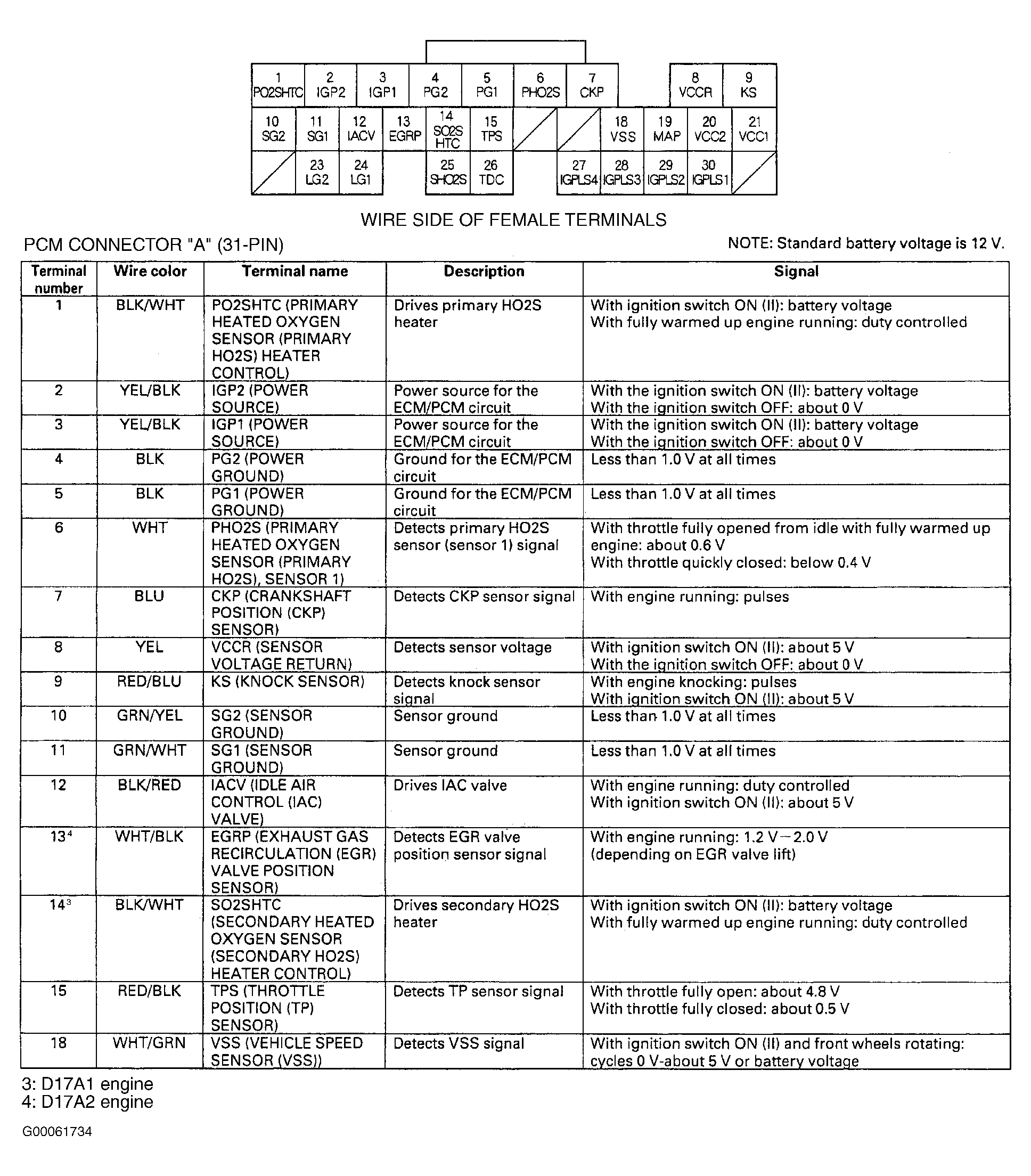

Fig 11: Identifying PCM Connector "A" (31-Pin Connector) Terminals & Pin Voltages (Civic - 1 Of 6)
G00061734Courtesy of AMERICAN HONDA MOTOR CO., INC.

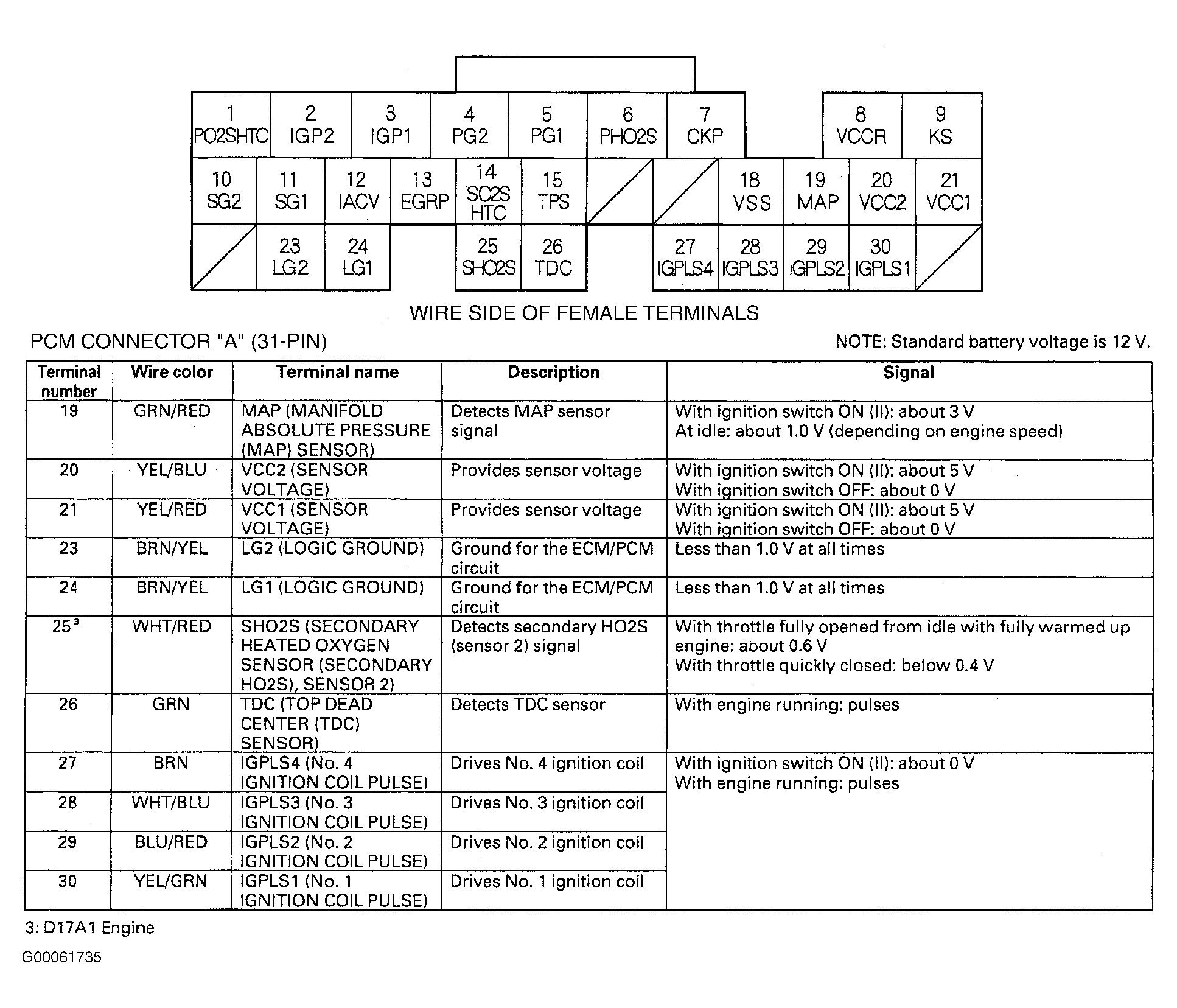

Fig 12: Identifying PCM Connector "A" (31-Pin Connector) Terminals & Pin Voltages (Civic - 2 Of 6)
G00061735Courtesy of AMERICAN HONDA MOTOR CO., INC.

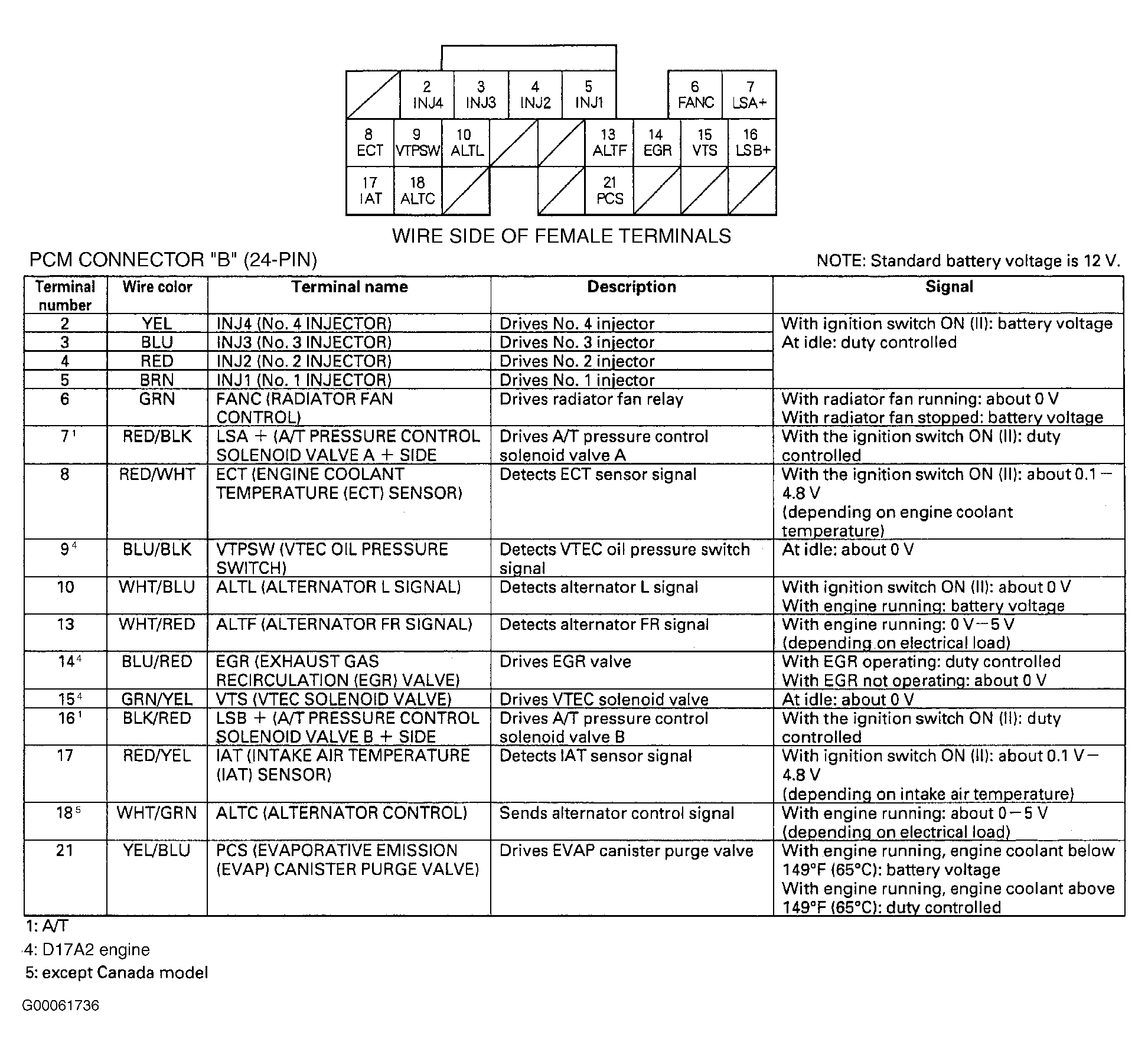

Fig 13: Identifying PCM Connector "B" (24-Pin Connector) Terminals & Pin Voltages (Civic - 3 Of 6)
G00061736Courtesy of AMERICAN HONDA MOTOR CO., INC.

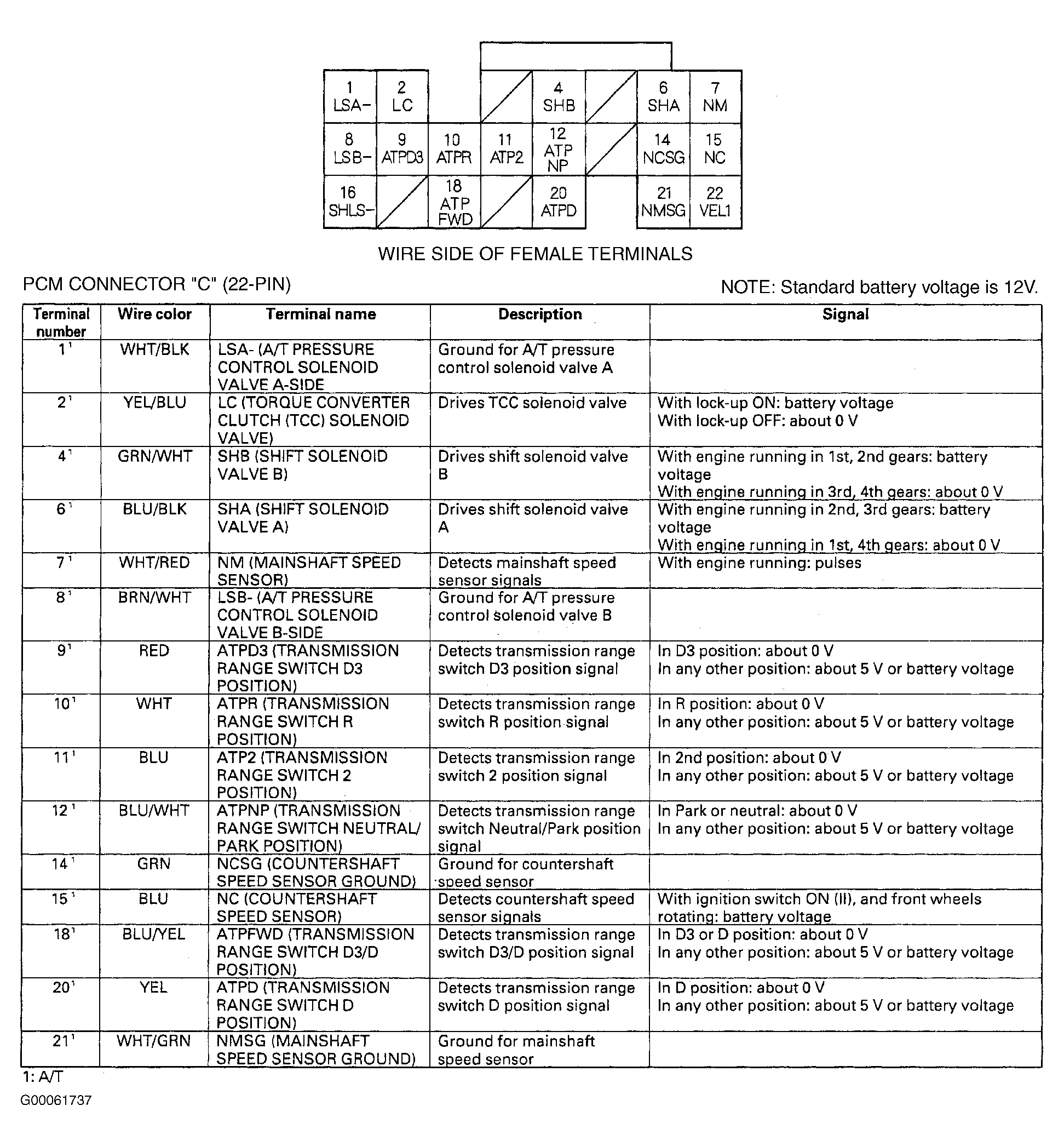

Fig 14: Identifying PCM Connector "C" (22-Pin Connector) Terminals & Pin Voltages (Civic - 4 Of 6)
G00061737Courtesy of AMERICAN HONDA MOTOR CO., INC.

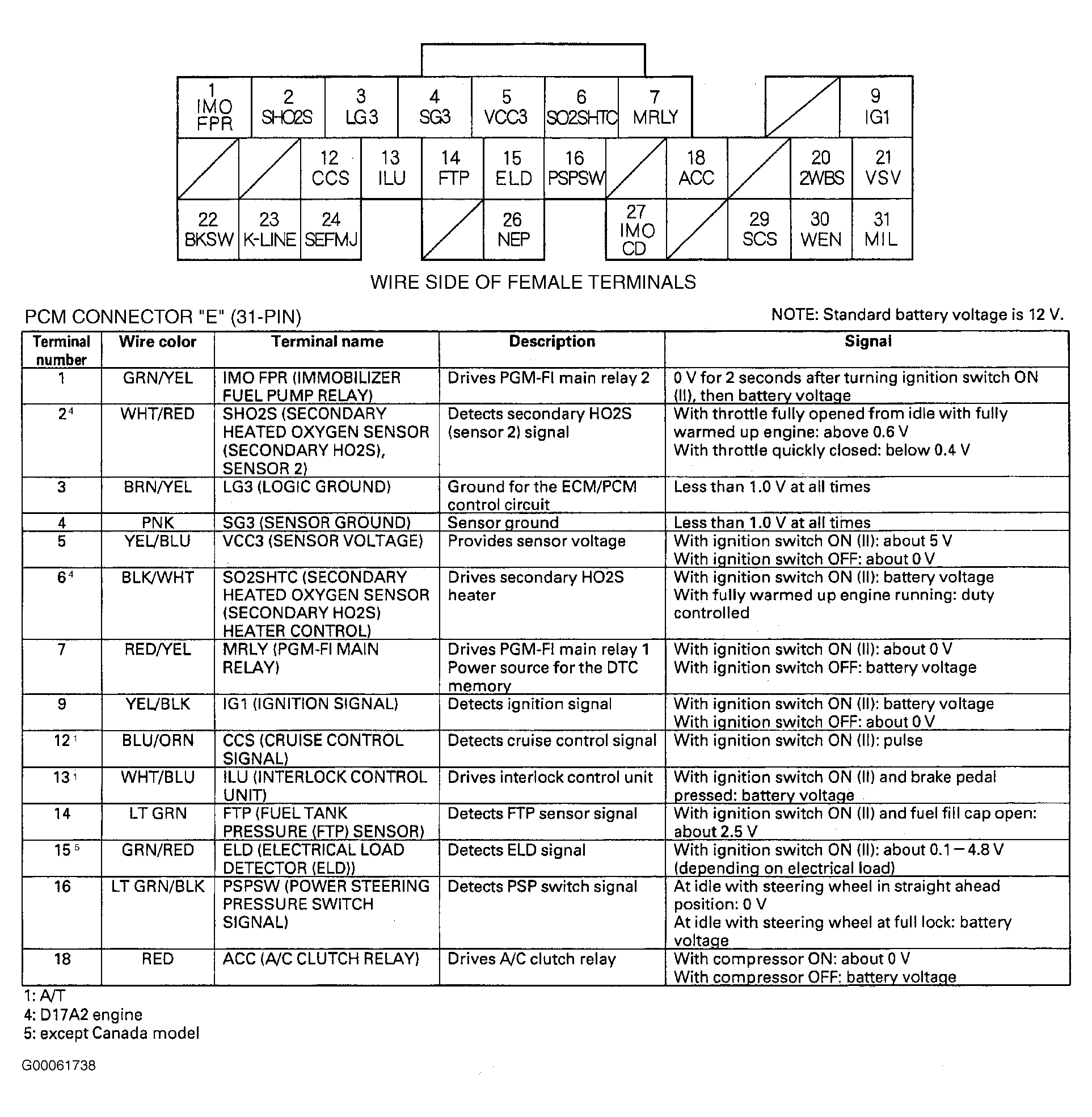

Fig 15: Identifying PCM Connector "E" (31-Pin Connector) Terminals & Pin Voltages (Civic - 5 Of 6)
G00061738Courtesy of AMERICAN HONDA MOTOR CO., INC.

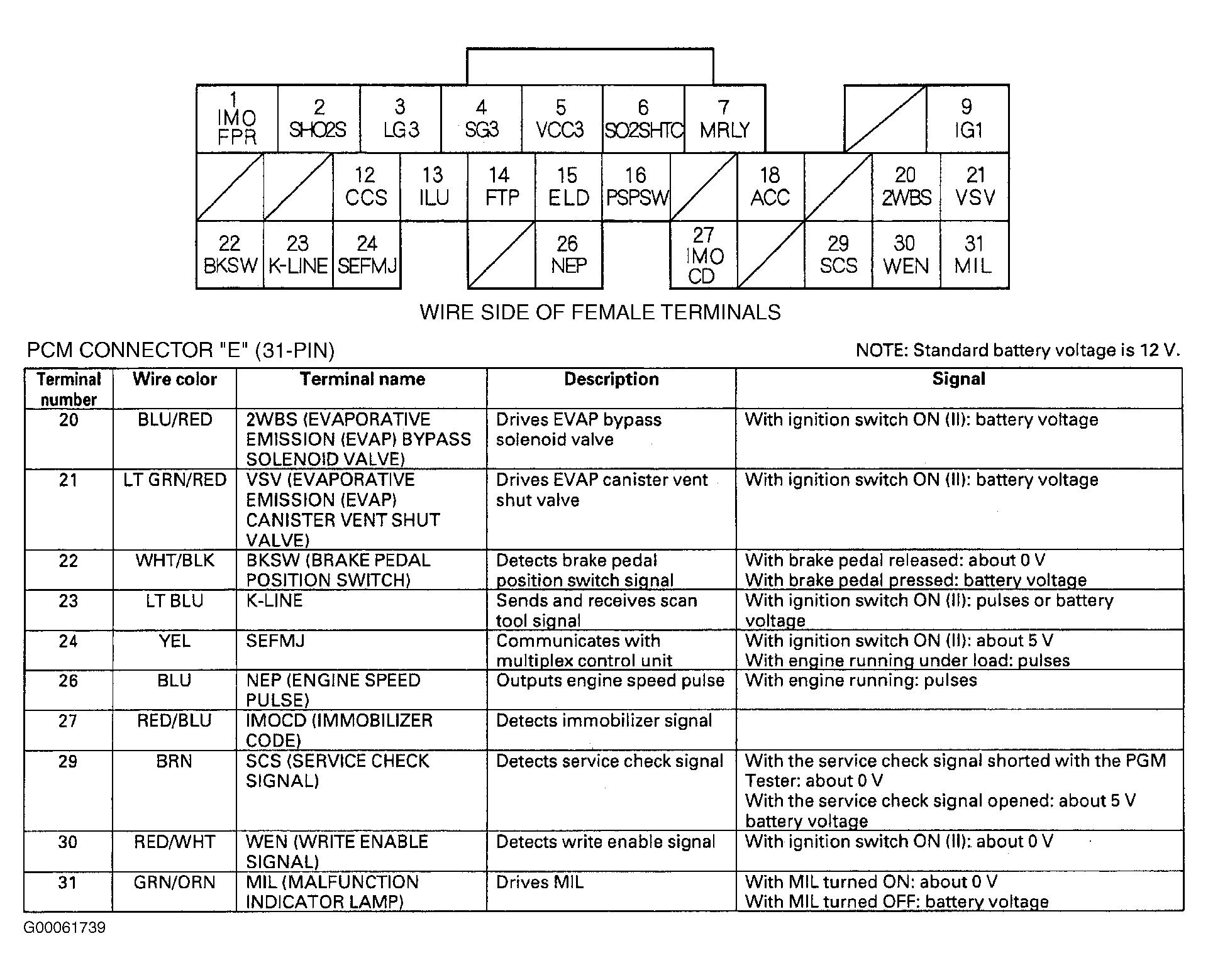

Fig 16: Identifying PCM Connector "E" (31-Pin Connector) Terminals & Pin Voltages (Civic - 6 Of 6)
G00061739Courtesy of AMERICAN HONDA MOTOR CO., INC.

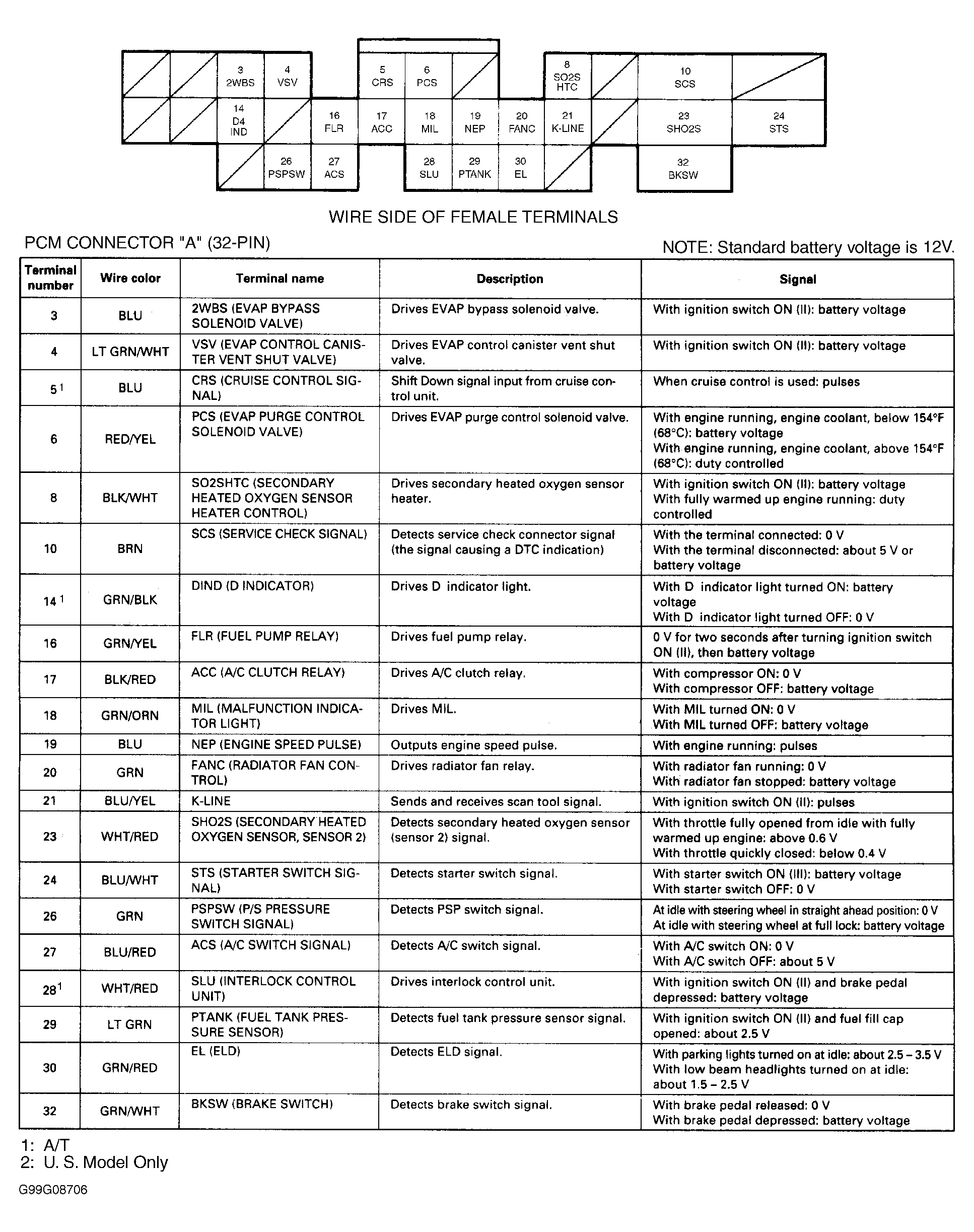

Fig 17: Identifying PCM Connector "A" (32-Pin Connector) Terminals & Pin Voltages (CR-V - 1 Of 4)
G99G08706Courtesy of AMERICAN HONDA MOTOR CO., INC.

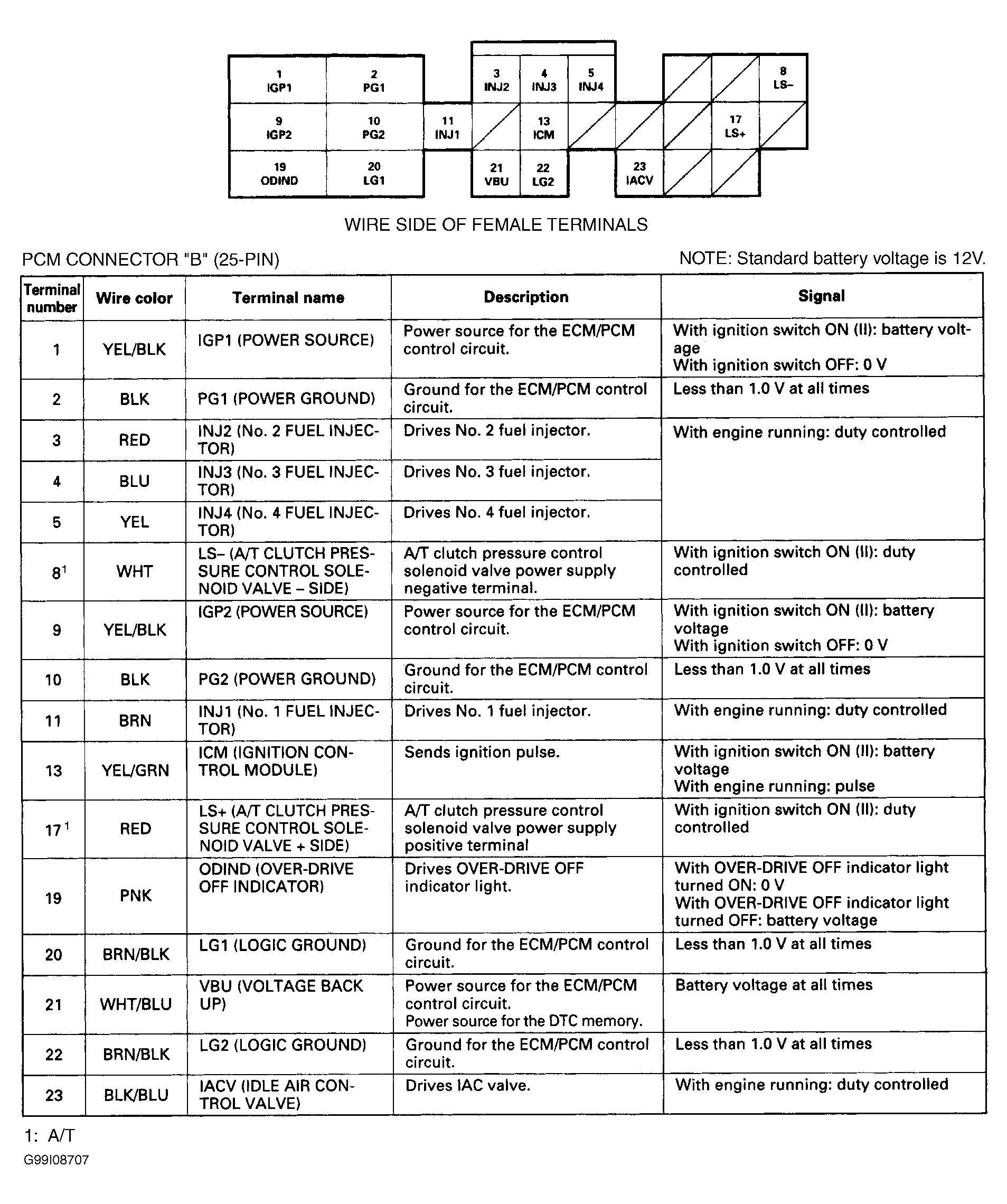

Fig 18: Identifying PCM Connector "B" (25-Pin Connector) Terminals & Pin Voltages (CR-V - 2 Of 4)
G99I08707Courtesy of AMERICAN HONDA MOTOR CO., INC.

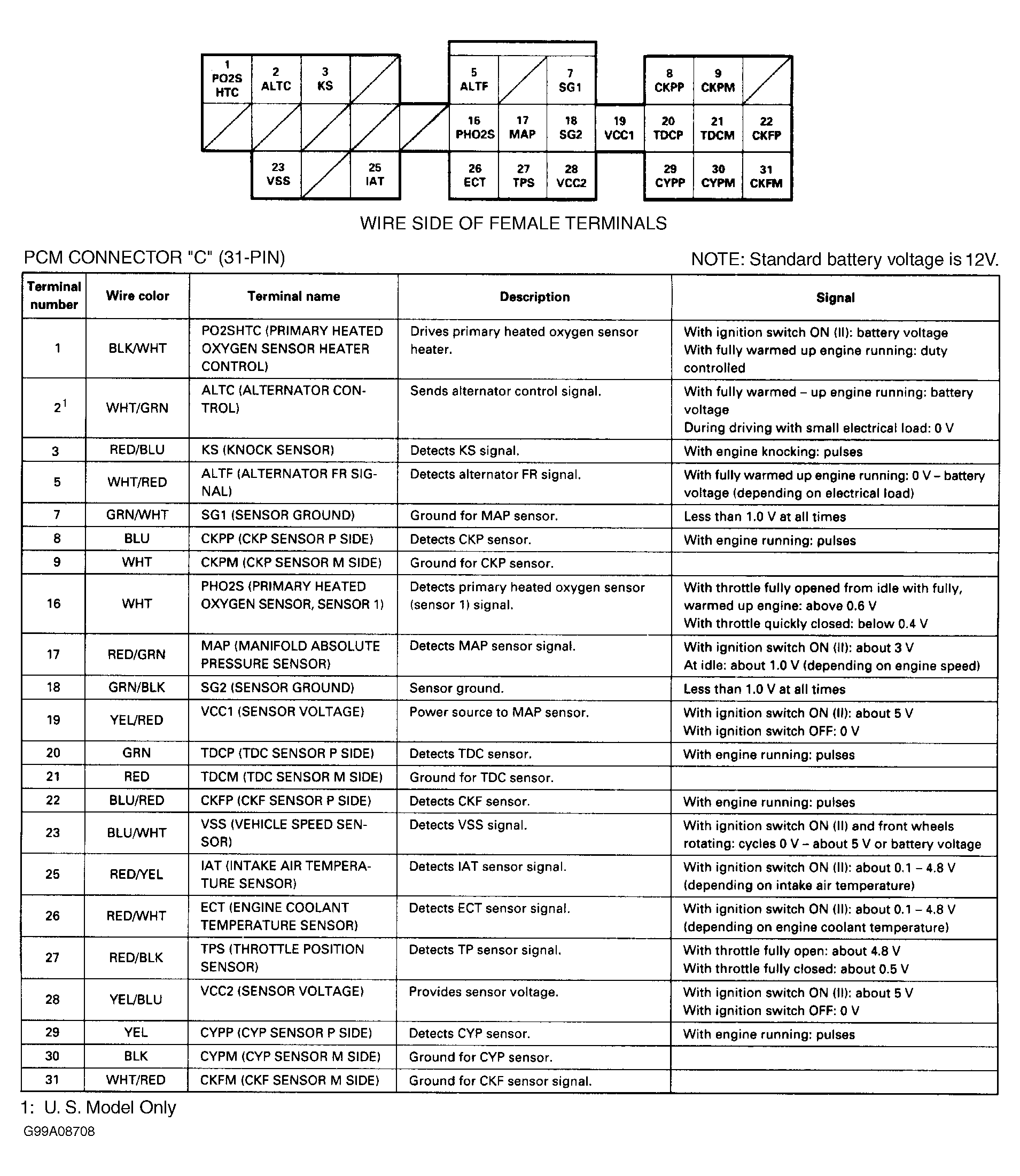

Fig 19: Identifying PCM Connector "C" (31-Pin Connector) Terminals & Pin Voltages (CR-V - 3 Of 4)
G99A08708Courtesy of AMERICAN HONDA MOTOR CO., INC.

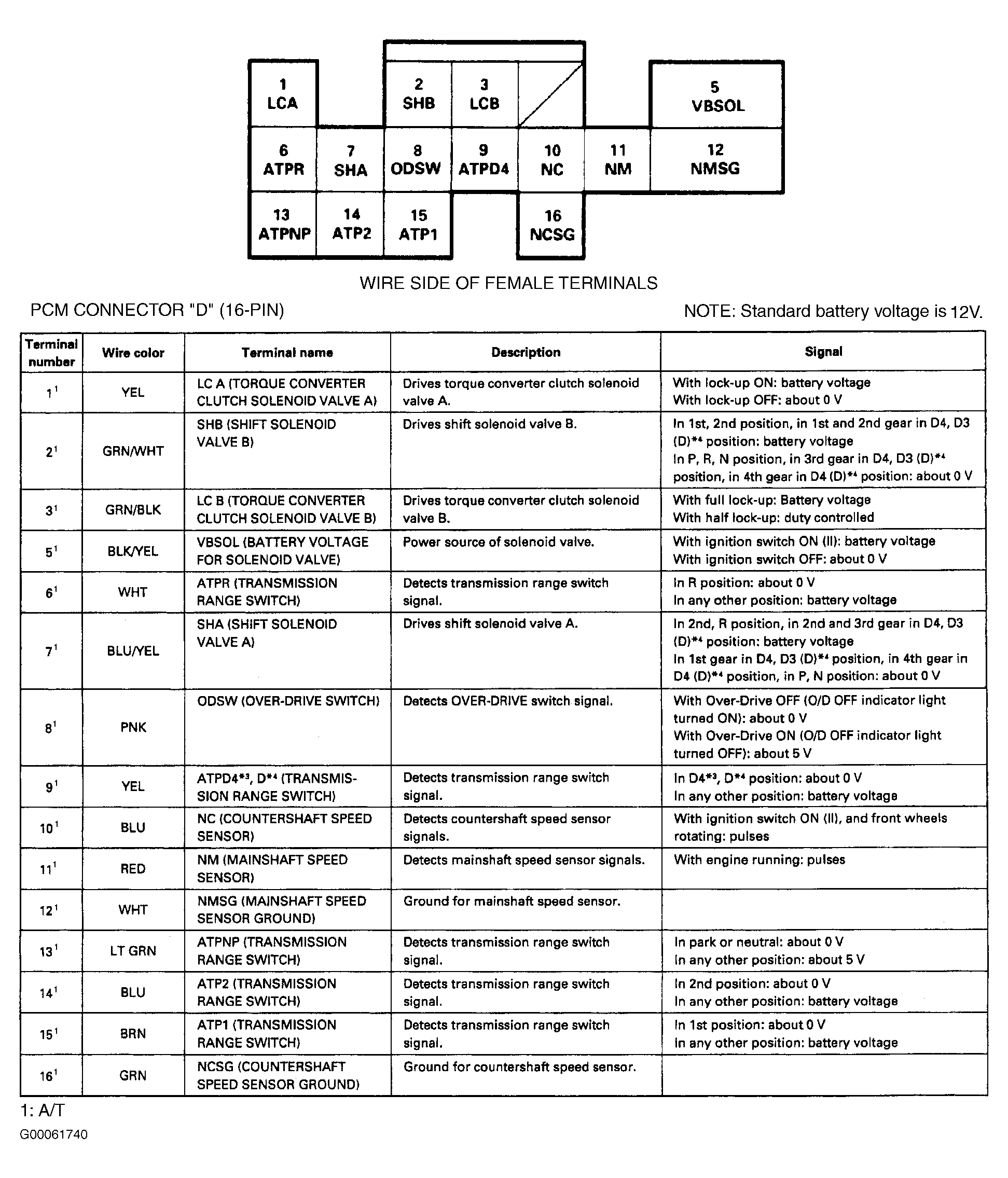

Fig 20: Identifying PCM Connector "D" (16-Pin Connector) Terminals & Pin Voltages (CR-V - 4 Of 4)
G00061740Courtesy of AMERICAN HONDA MOTOR CO., INC.

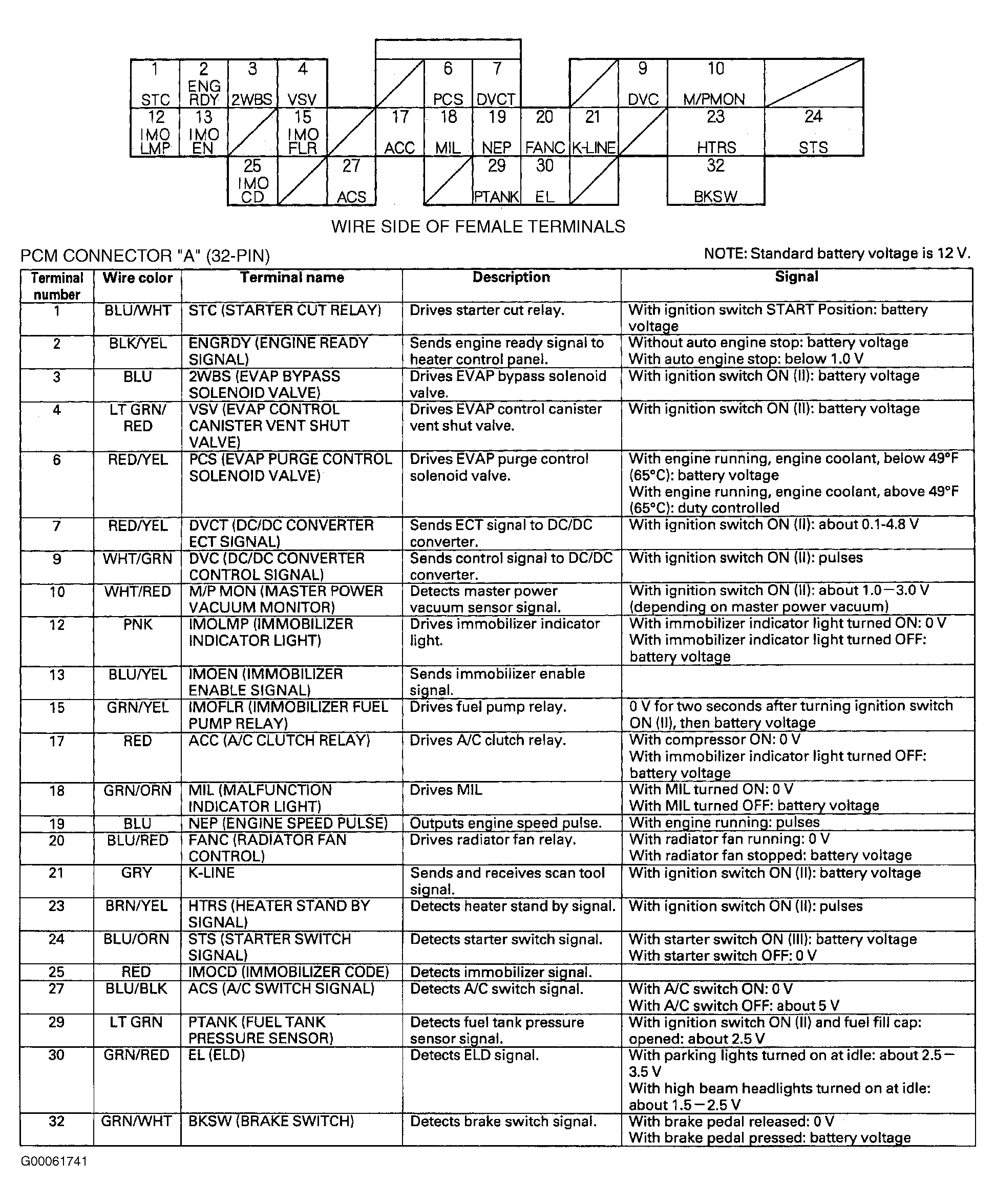

Fig 21: Identifying PCM Connector "A" (32-Pin Connector) Terminals & Pin Voltages (Insight - 1 Of 4)
G00061741Courtesy of AMERICAN HONDA MOTOR CO., INC.

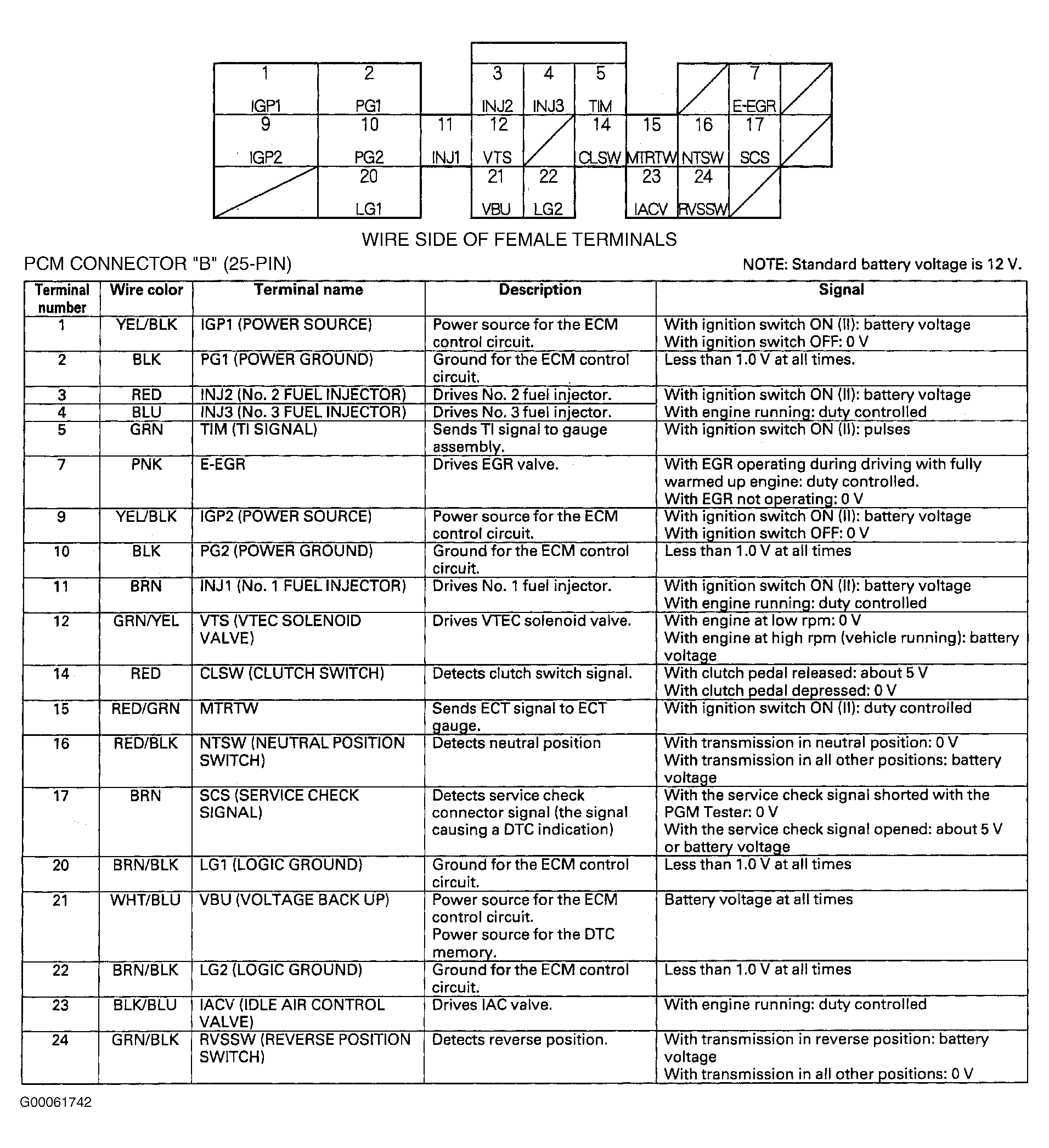

Fig 22: Identifying PCM Connector "B" (25-Pin Connector) Terminals & Pin Voltages (Insight - 2 Of 4)
G00061742Courtesy of AMERICAN HONDA MOTOR CO., INC.

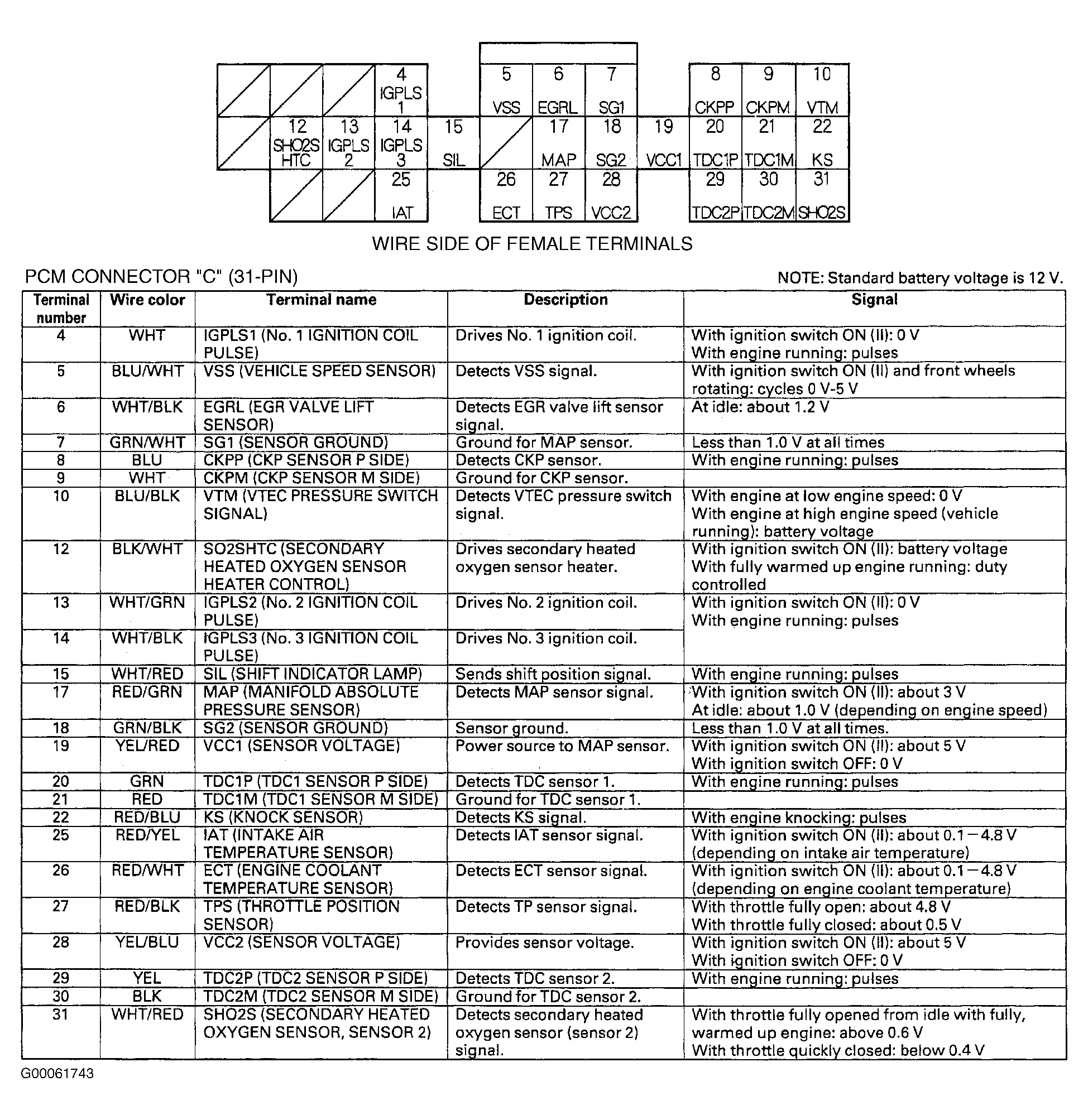

Fig 23: Identifying PCM Connector "C" (31-Pin Connector) Terminals & Pin Voltages (Insight - 3 Of 4)
G00061743Courtesy of AMERICAN HONDA MOTOR CO., INC.

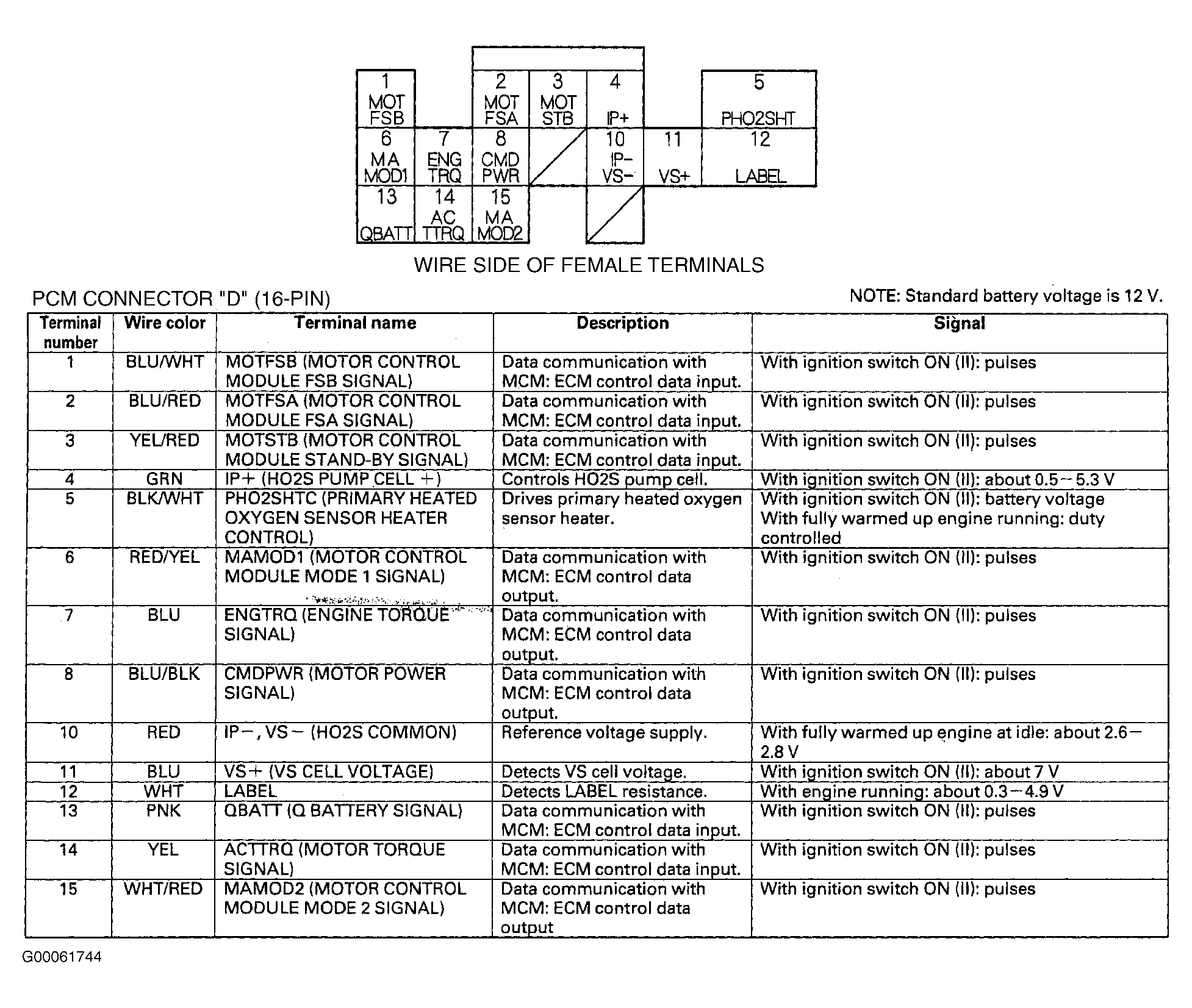

Fig 24: Identifying PCM Connector "D" (16-Pin Connector) Terminals & Pin Voltages (Insight - 4 Of 4)
G00061744Courtesy of AMERICAN HONDA MOTOR CO., INC.

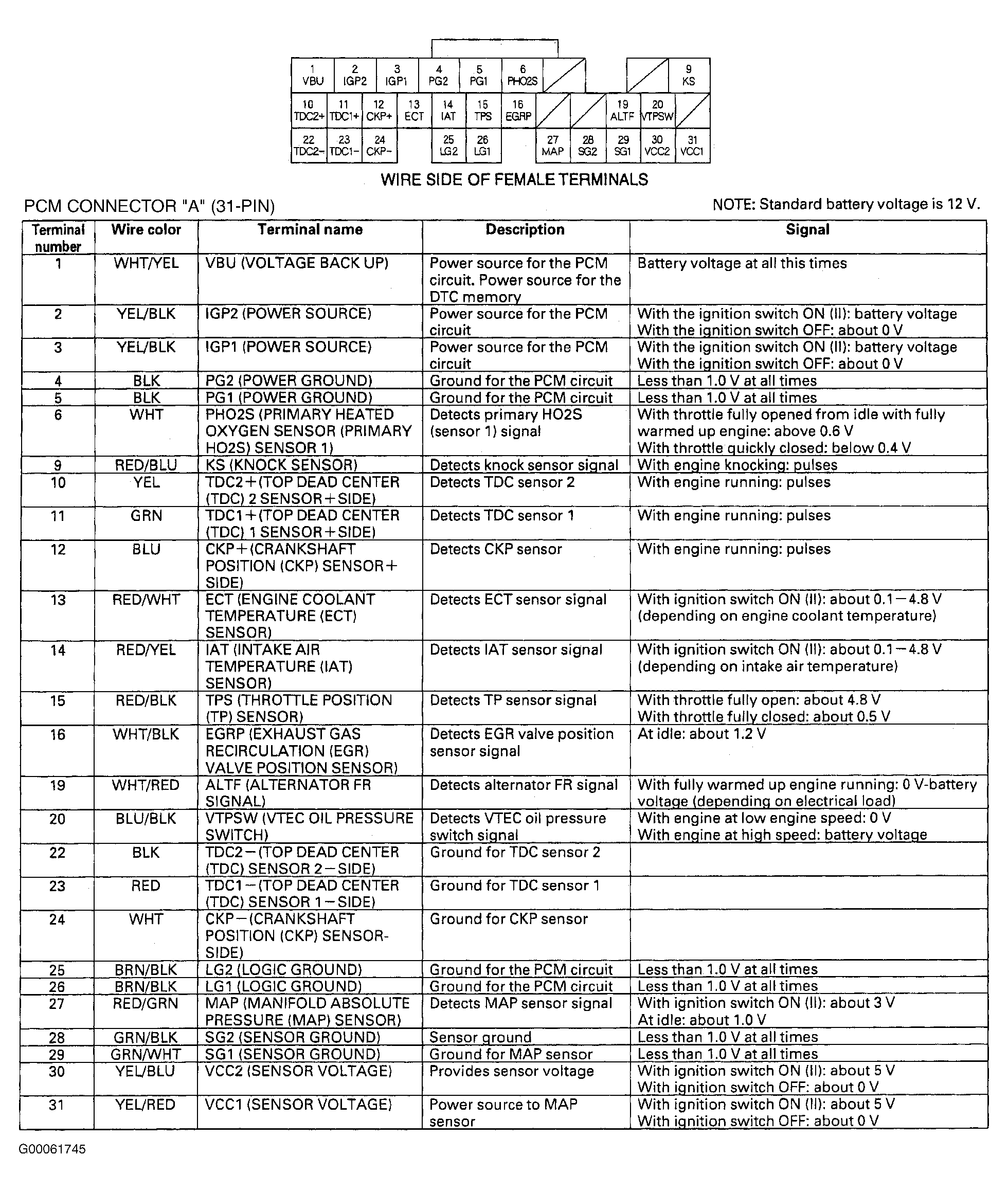

Fig 25: Identifying PCM Connector "A" (31-Pin Connector) Terminals & Pin Voltages (Odyssey - 1 Of 6)
G00061745Courtesy of AMERICAN HONDA MOTOR CO., INC.

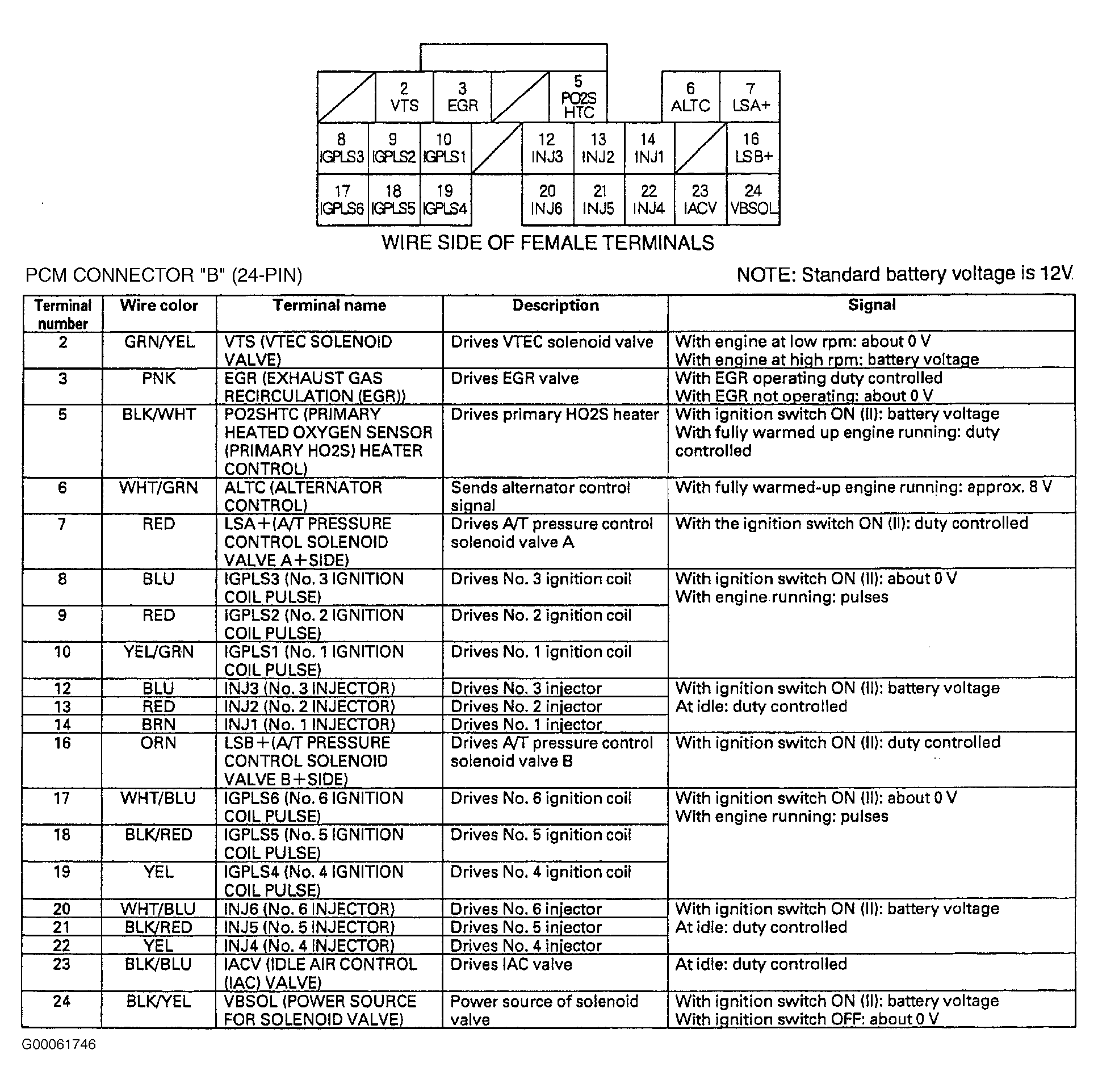

Fig 26: Identifying PCM Connector "B" (24-Pin Connector) Terminals & Pin Voltages (Odyssey - 2 Of 6)
G00061746Courtesy of AMERICAN HONDA MOTOR CO., INC.

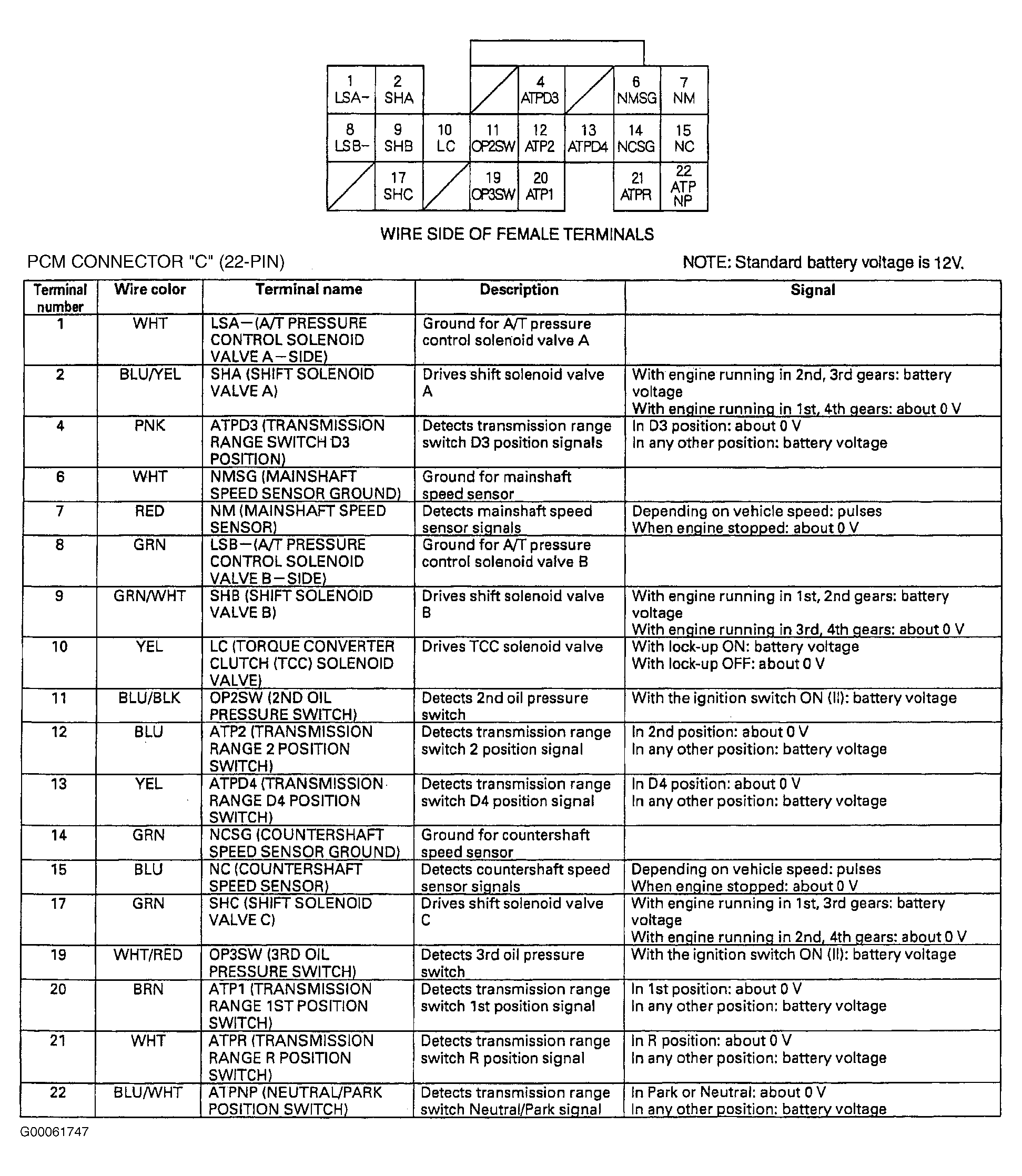

Fig 27: Identifying PCM Connector "C" (22-Pin Connector) Terminals & Pin Voltages (Odyssey - 3 Of 6)
G00061747Courtesy of AMERICAN HONDA MOTOR CO., INC.

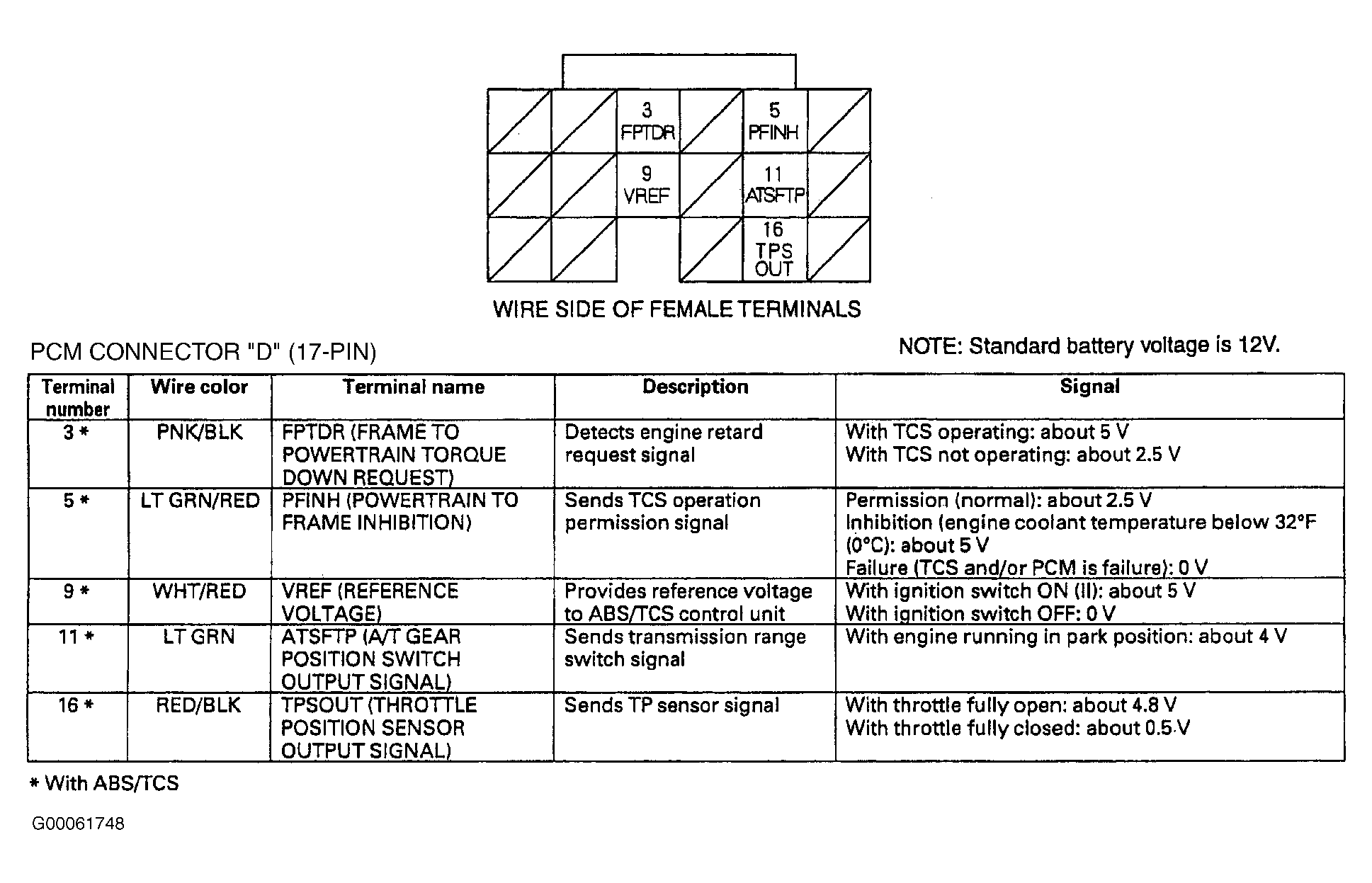

Fig 28: Identifying PCM Connector "D" (17-Pin Connector) Terminals & Pin Voltages (Odyssey - 4 Of 6)
G00061748Courtesy of AMERICAN HONDA MOTOR CO., INC.

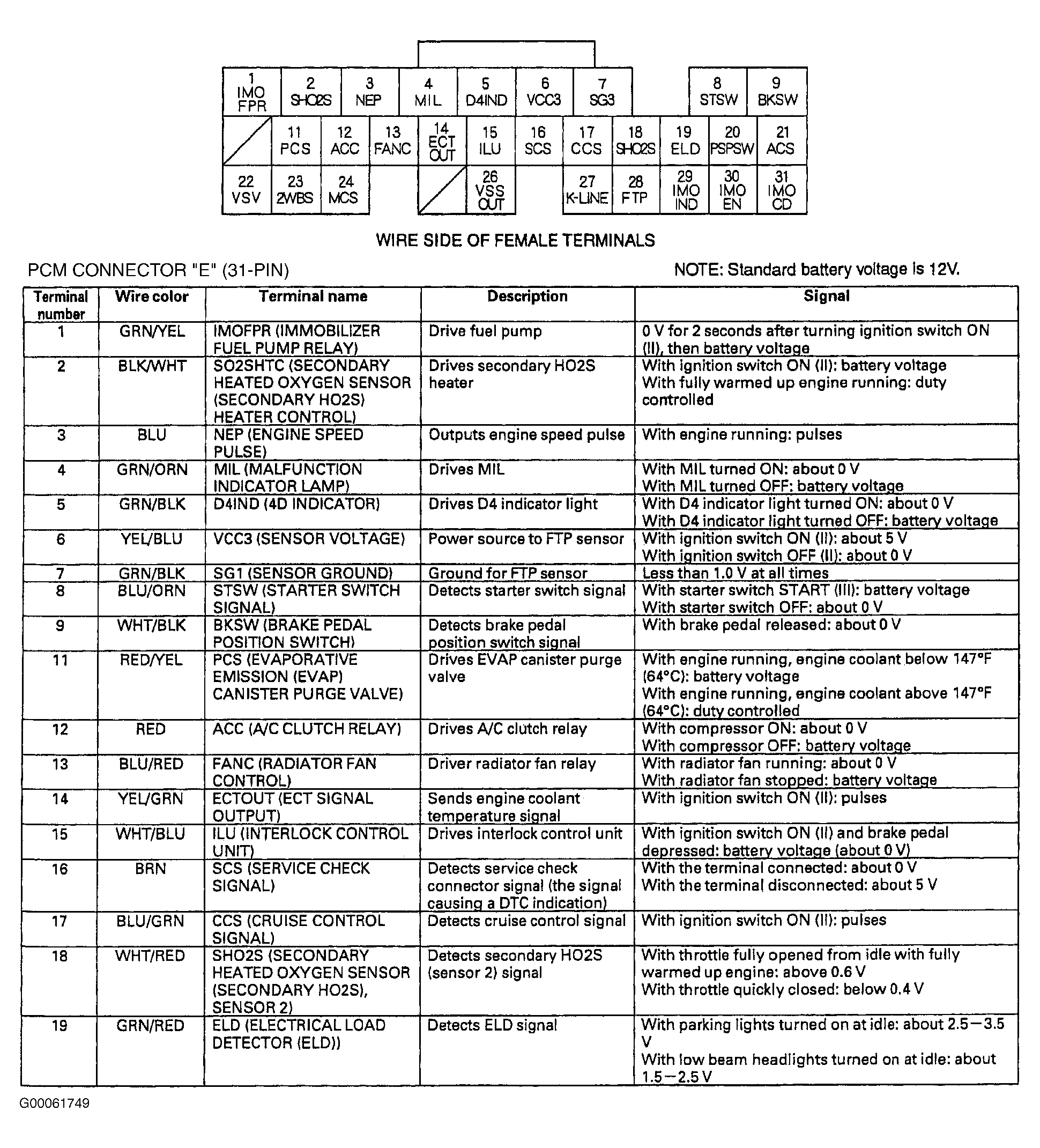

Fig 29: Identifying PCM Connector "E" (31-Pin Connector) Terminals & Pin Voltages (Odyssey - 5 Of 6)
G00061749Courtesy of AMERICAN HONDA MOTOR CO., INC.

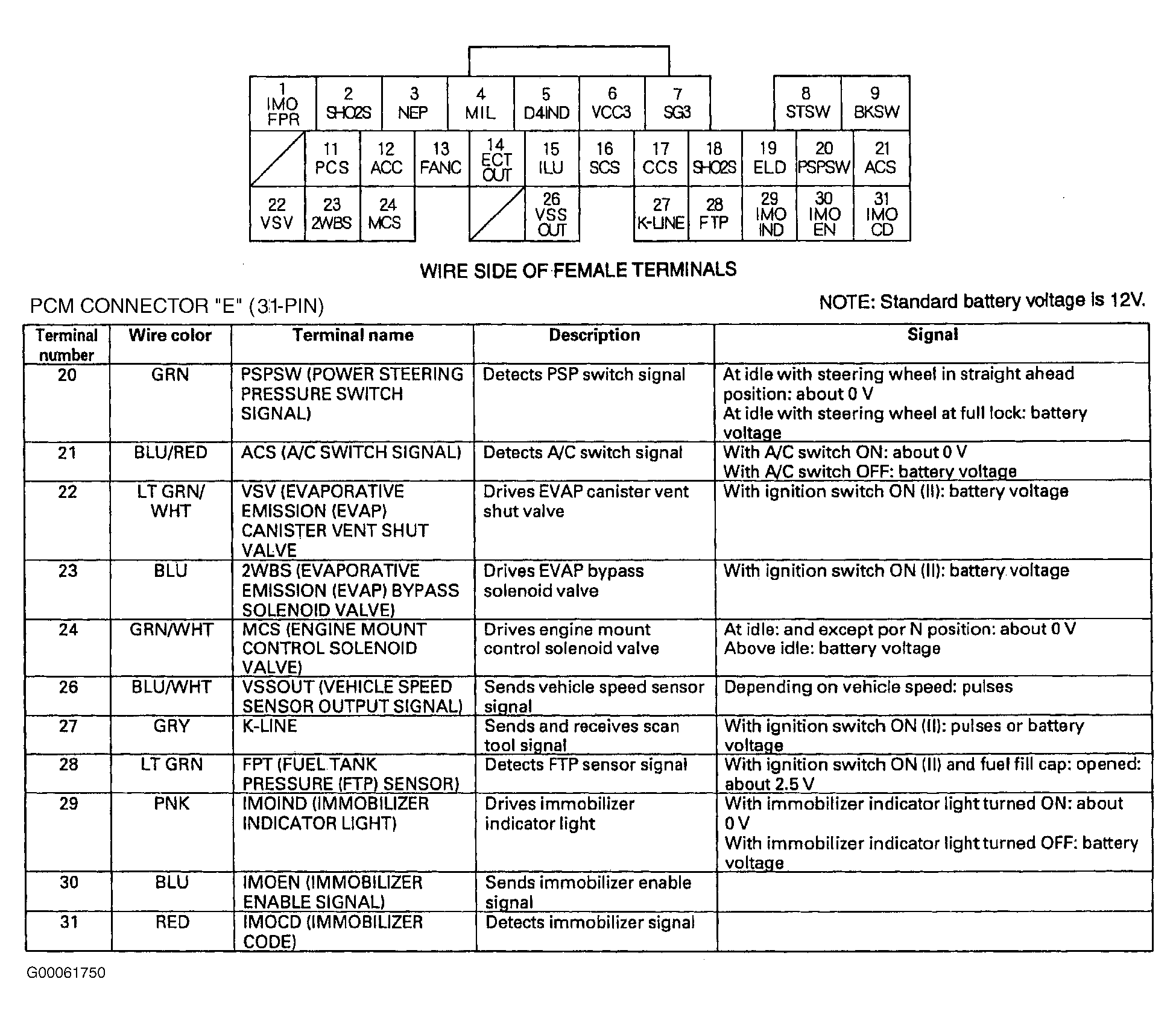

Fig 30: Identifying PCM Connector "E" (31-Pin Connector) Terminals & Pin Voltages (Odyssey - 6 Of 6)
G00061750Courtesy of AMERICAN HONDA MOTOR CO., INC.

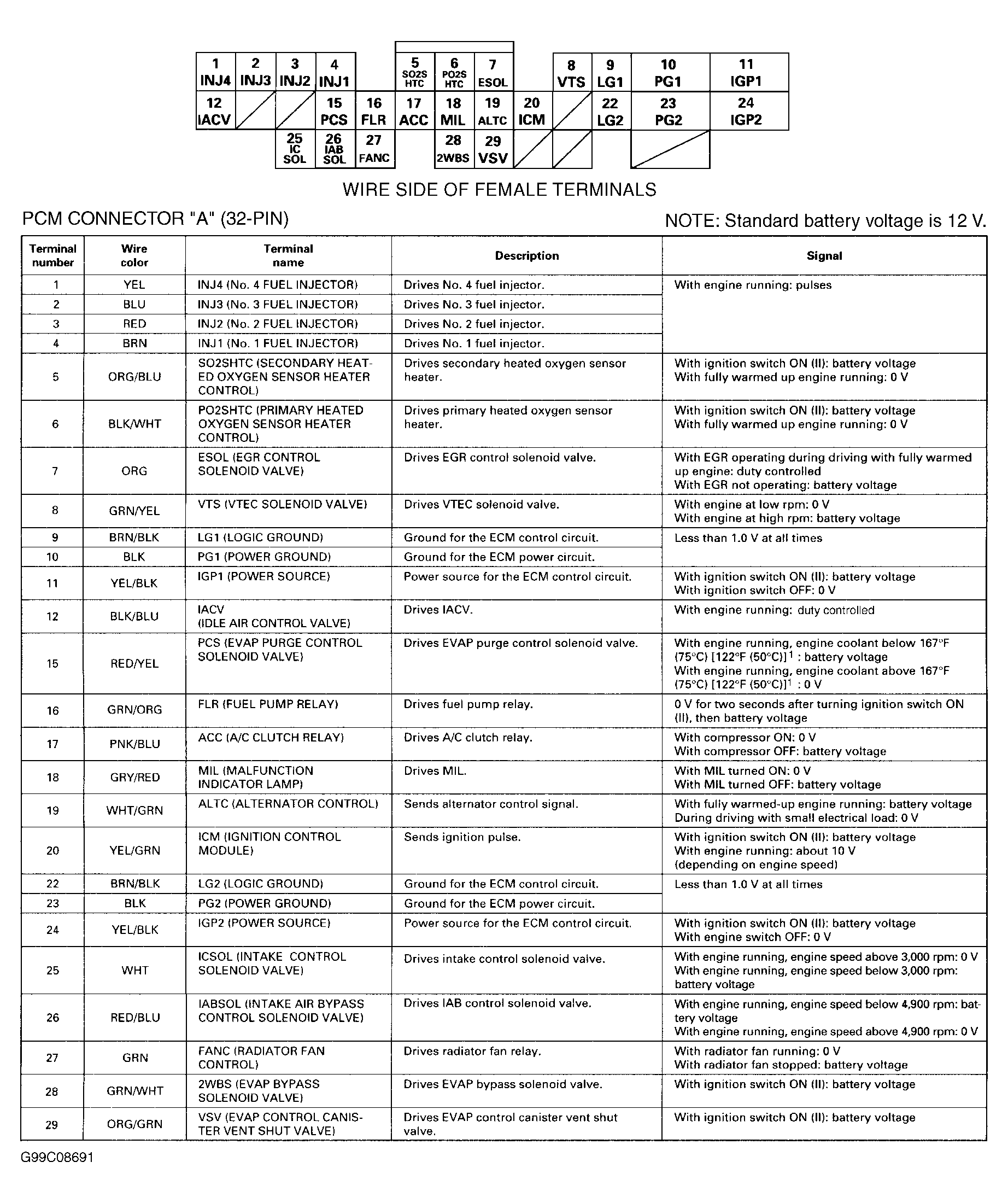

Fig 31: Identifying PCM Connector "A" (32-Pin Connector) Terminals & Pin Voltages (Prelude - 1 Of 3)
G99C08691Courtesy of AMERICAN HONDA MOTOR CO., INC.

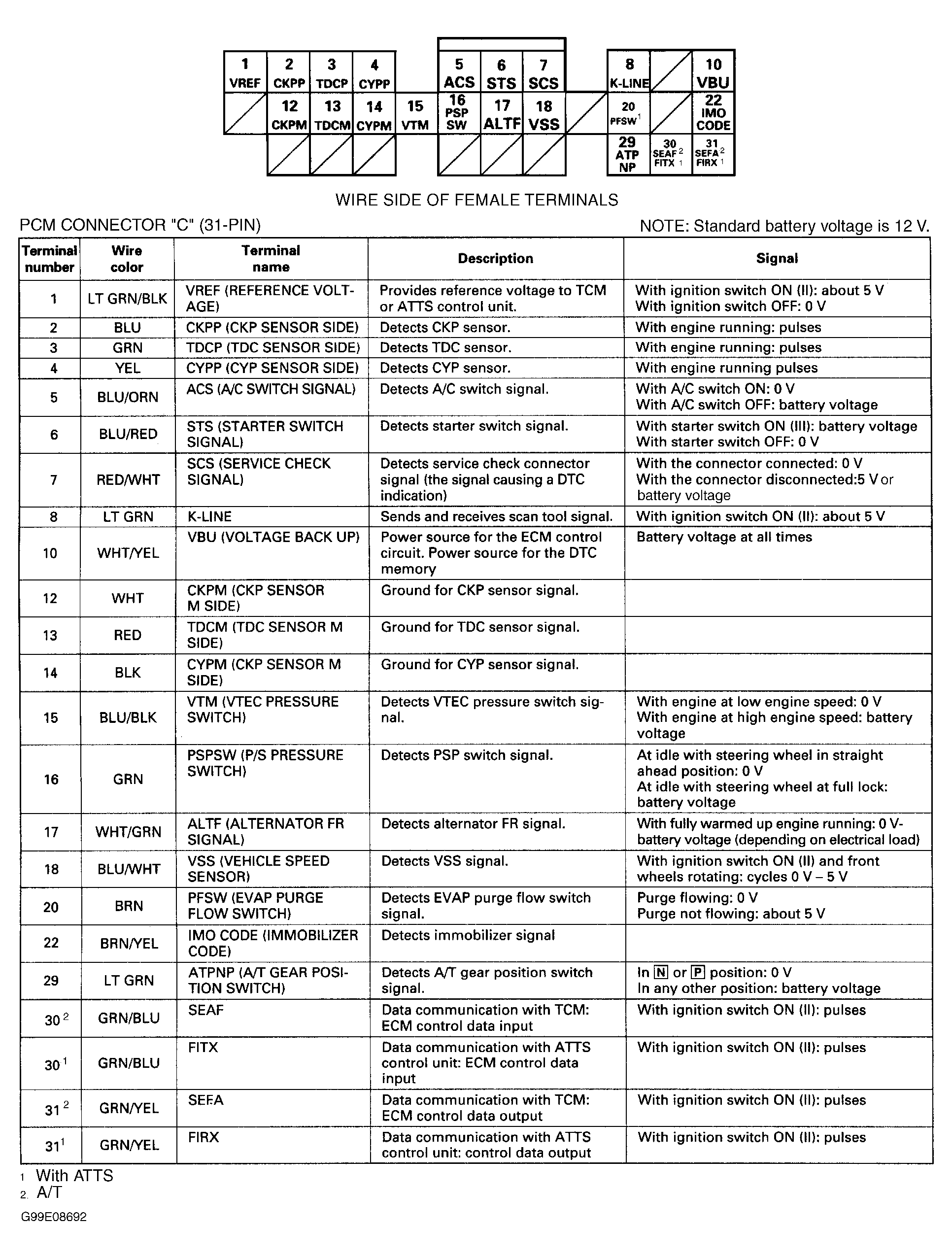

Fig 32: Identifying PCM Connector "C" (31-Pin Connector) Terminals & Pin Voltages (Prelude - 2 Of 3)
G99E08692Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 33: Identifying PCM Connector "D" (16-Pin Connector) Terminal & Pin Voltages (Prelude - 3 Of 3)
G97E06080Courtesy of AMERICAN HONDA MOTOR CO., INC.

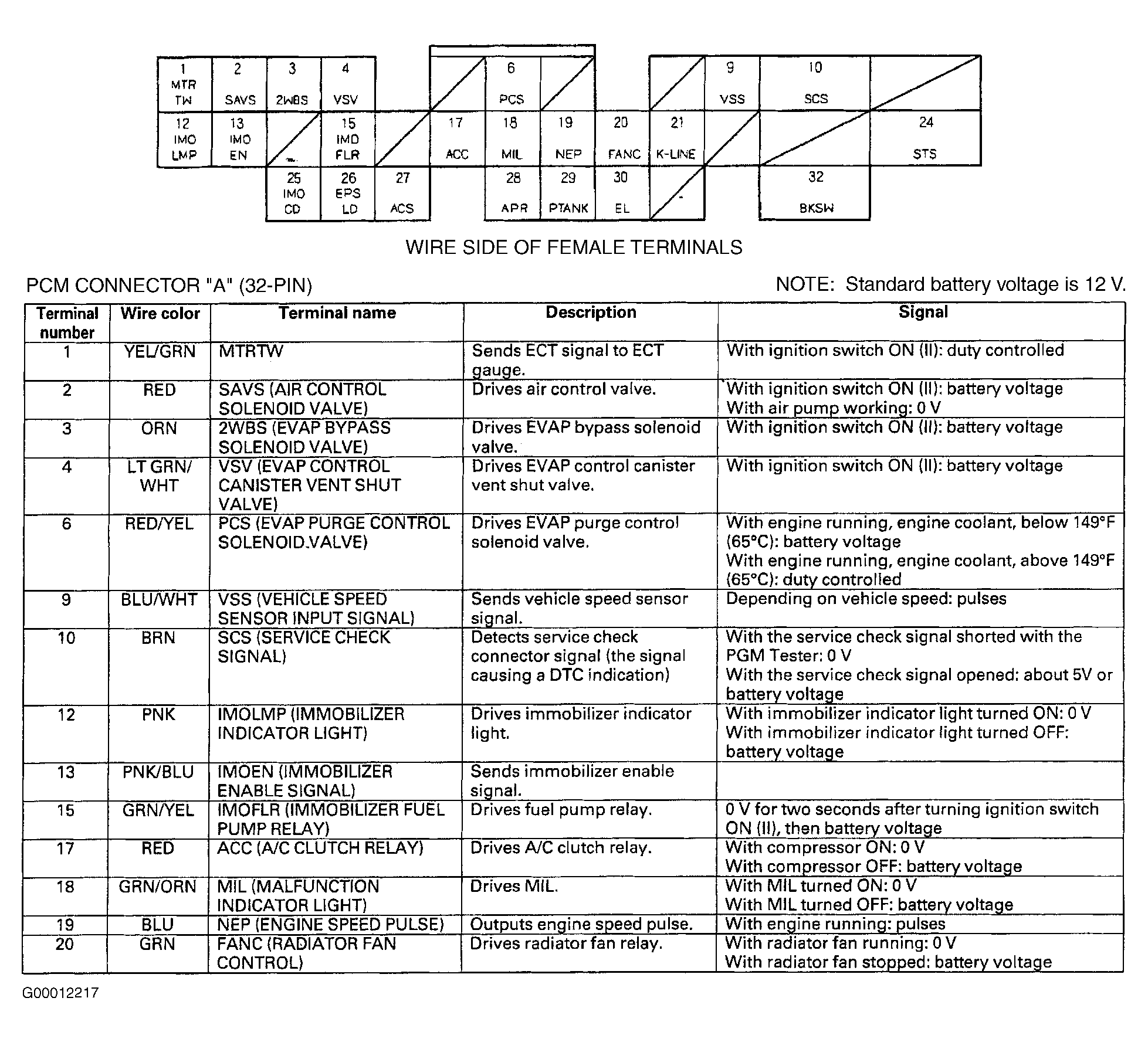

Fig 34: Identifying PCM Connector "A" (32-Pin Connector) Terminals & Pin Voltages (S2000 - 1 Of 4)
G00012217Courtesy of AMERICAN HONDA MOTOR CO., INC.

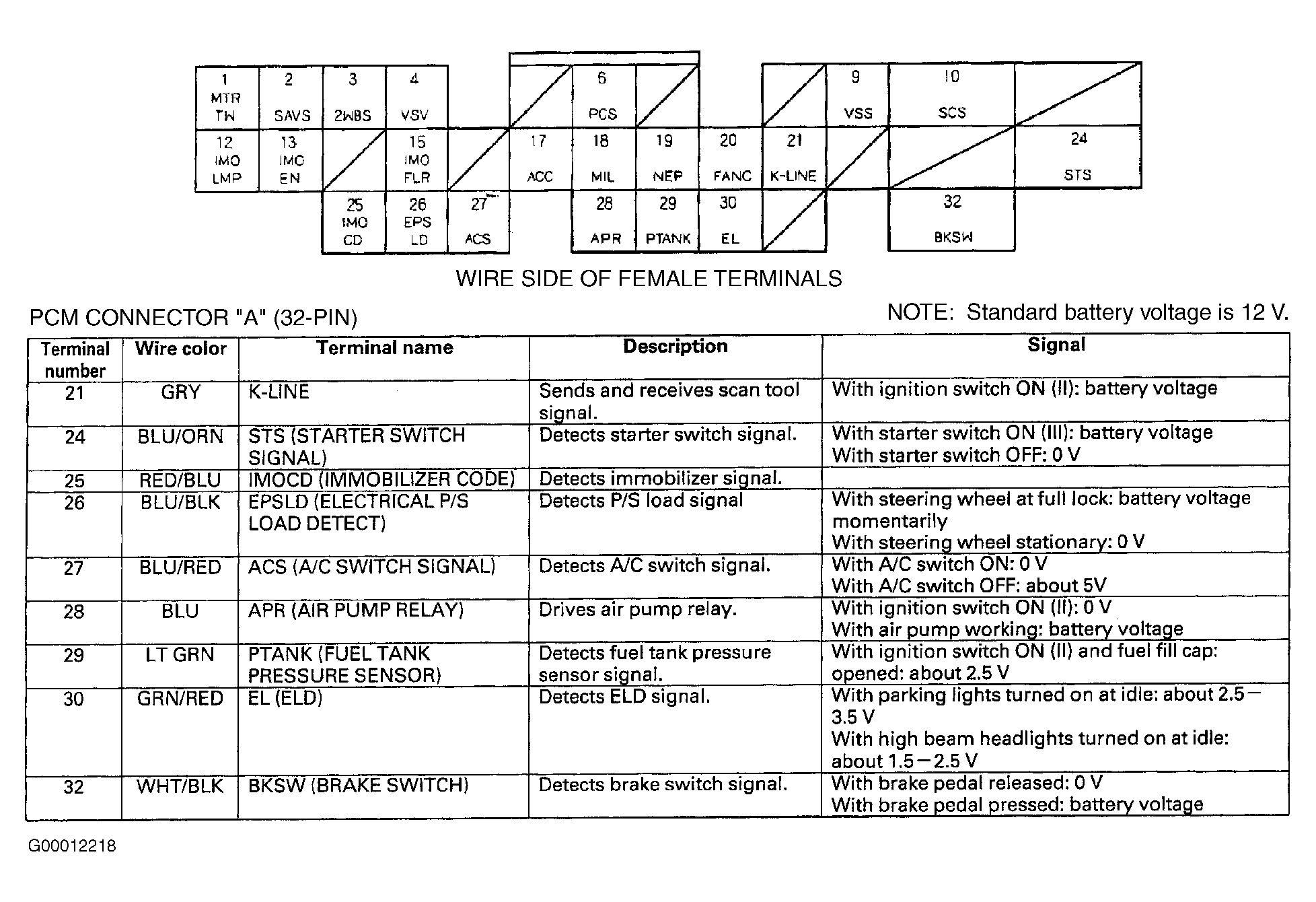

Fig 35: Identifying PCM Connector "A" (32-Pin Connector) Terminals & Pin Voltages (S2000 - 2 Of 4)
G00012218Courtesy of AMERICAN HONDA MOTOR CO., INC.

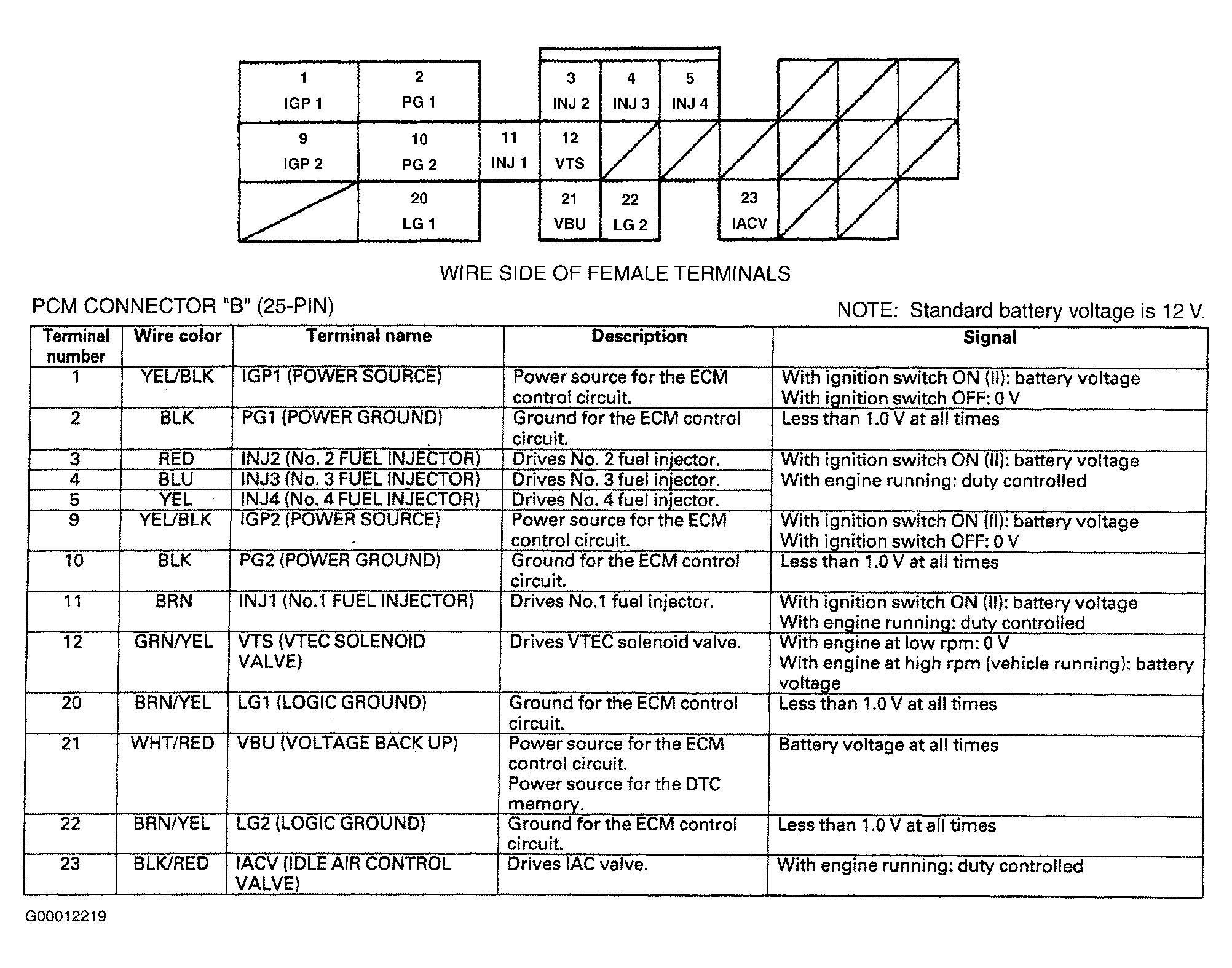

Fig 36: Identifying PCM Connector "B" (25-Pin Connector) Terminals & Pin Voltages (S2000 - 3 Of 4)
G00012219Courtesy of AMERICAN HONDA MOTOR CO., INC.

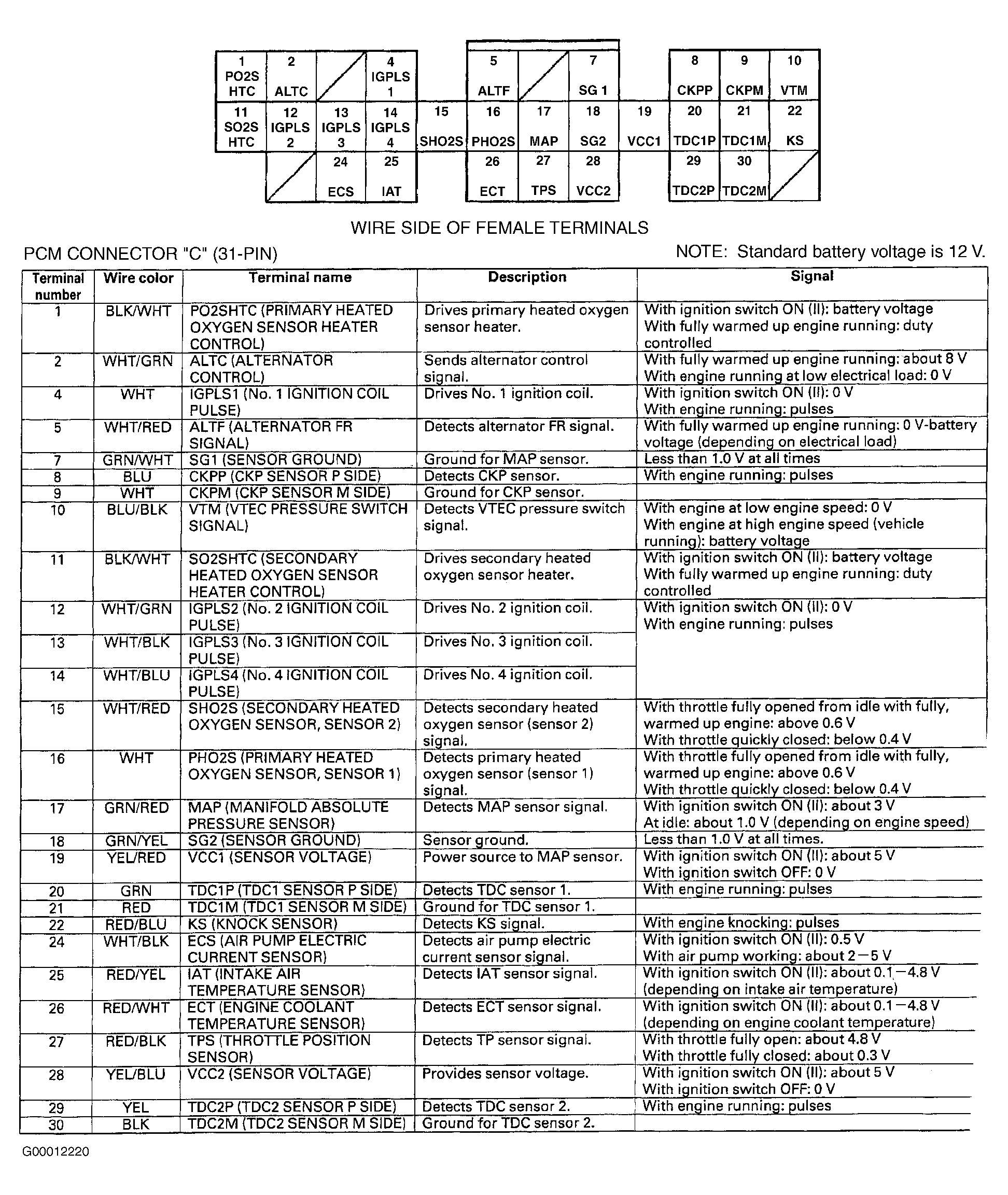

Fig 37: Identifying PCM Connector "C" (31-Pin Connector) Terminals & Pin Voltages (S2000 - 4 Of 4)
G00012220Courtesy of AMERICAN HONDA MOTOR CO., INC.
