Audio Remote Switch Connector End View
Audio Remote Switch Connector End View

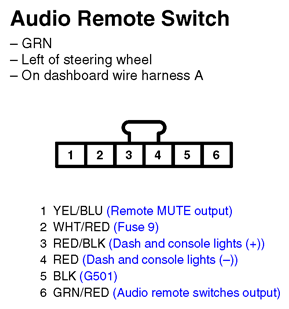

Fig 1: Audio Remote Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
