Cruise Control Main Switch Connector End View
Cruise Control Main Switch Connector End View

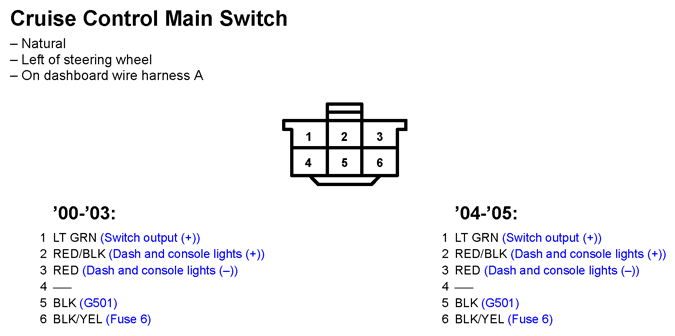

Fig 1: Cruise Control Main Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
