EPS Torque Sensor Connector End View
EPS Torque Sensor Connector End View

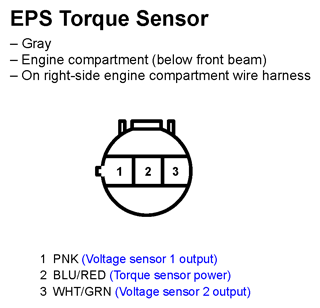

Fig 1: EPS Torque Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
