Hood Switch Test
Hood Switch Test
Open the hood.
Disconnect the 2P connector from the hood switch.

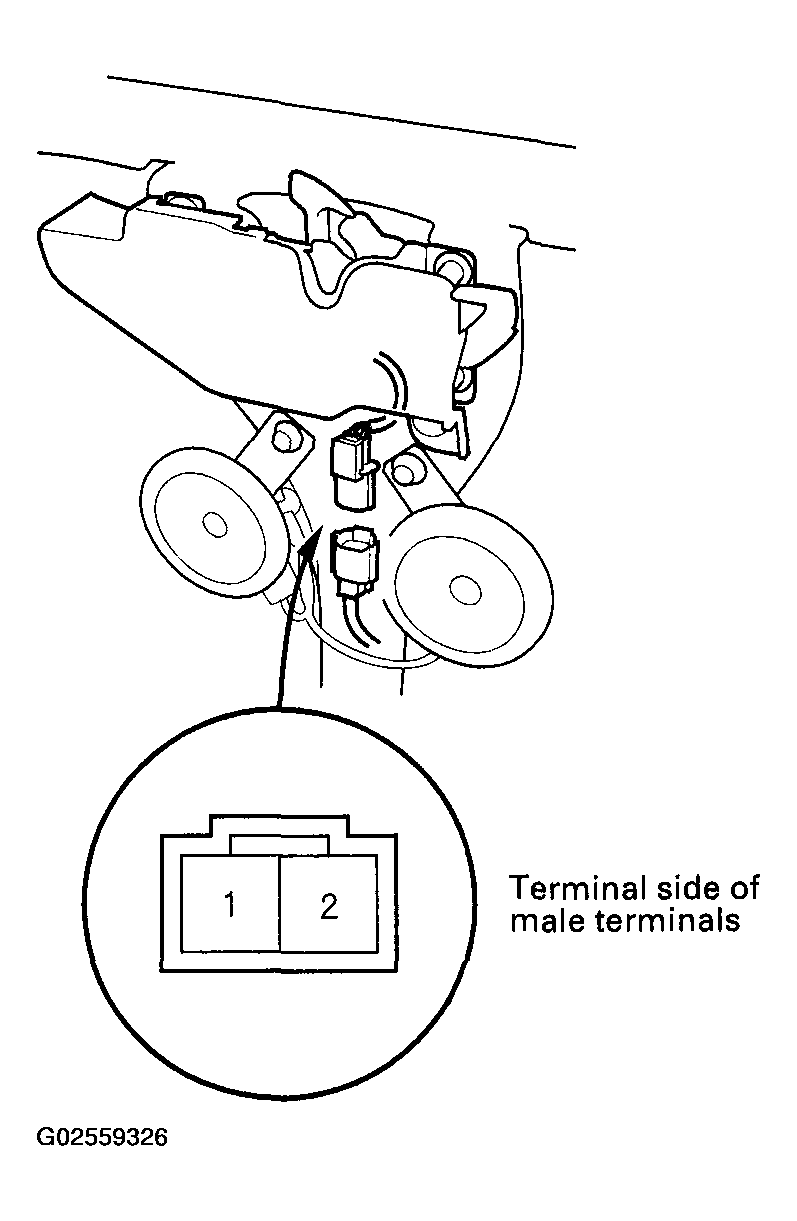

Fig 1: Identifying Hood Switch Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.
Fig 2: Hood Switch Test Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the hood switch.
