Ignition Switch: Replacement

SRS components are located in this area. Review the SRS components locations, precautions and procedures in AIR BAG RESTRAINT SYSTEMS article under before performing repairs or service.

1. Make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset buttons.
2. Disconnect the battery negative cable.
3. Remove the steering column covers (see STEERING COLUMN ).
4. Insert the ignition key, and turn it to "0".
5. Remove the 3 screws (A), and replace the electrical switch (B).

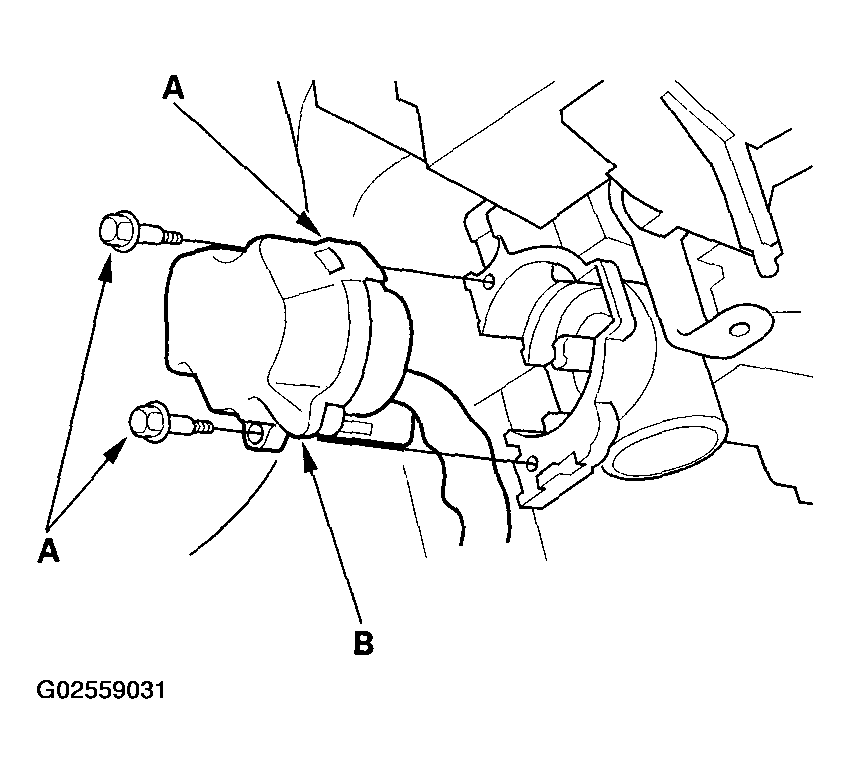

   Fig 1: Removing Screws & Replacing Electrical Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Install the switch in the reverse order of removal.
7. After reconnecting the battery, enter the anti-theft code for the radio, then enter the customer's radio station presets.
