Circuit Diagram - Coupe

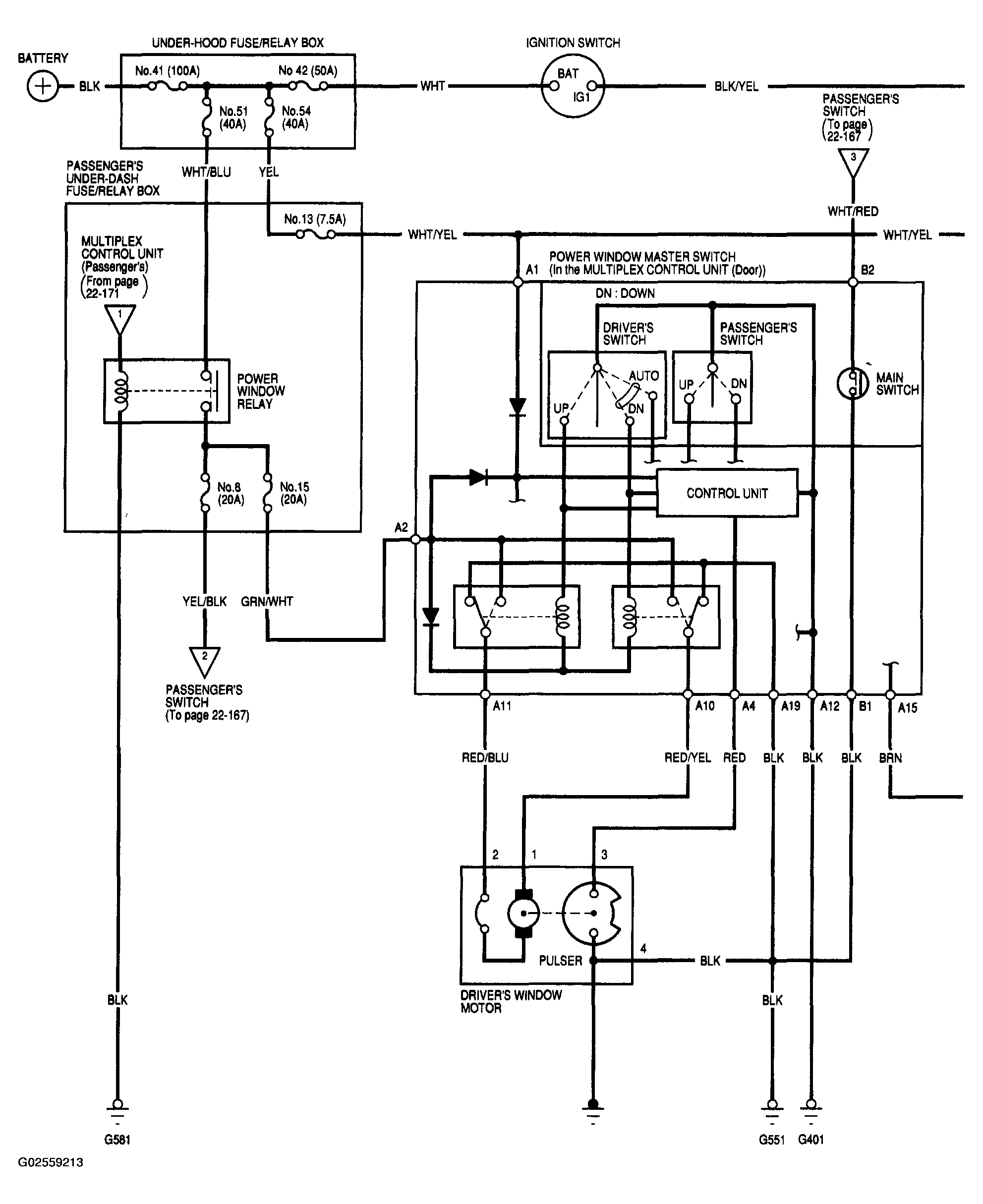

Fig 1: Power Window System Circuit Diagram - '98-99 Models (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

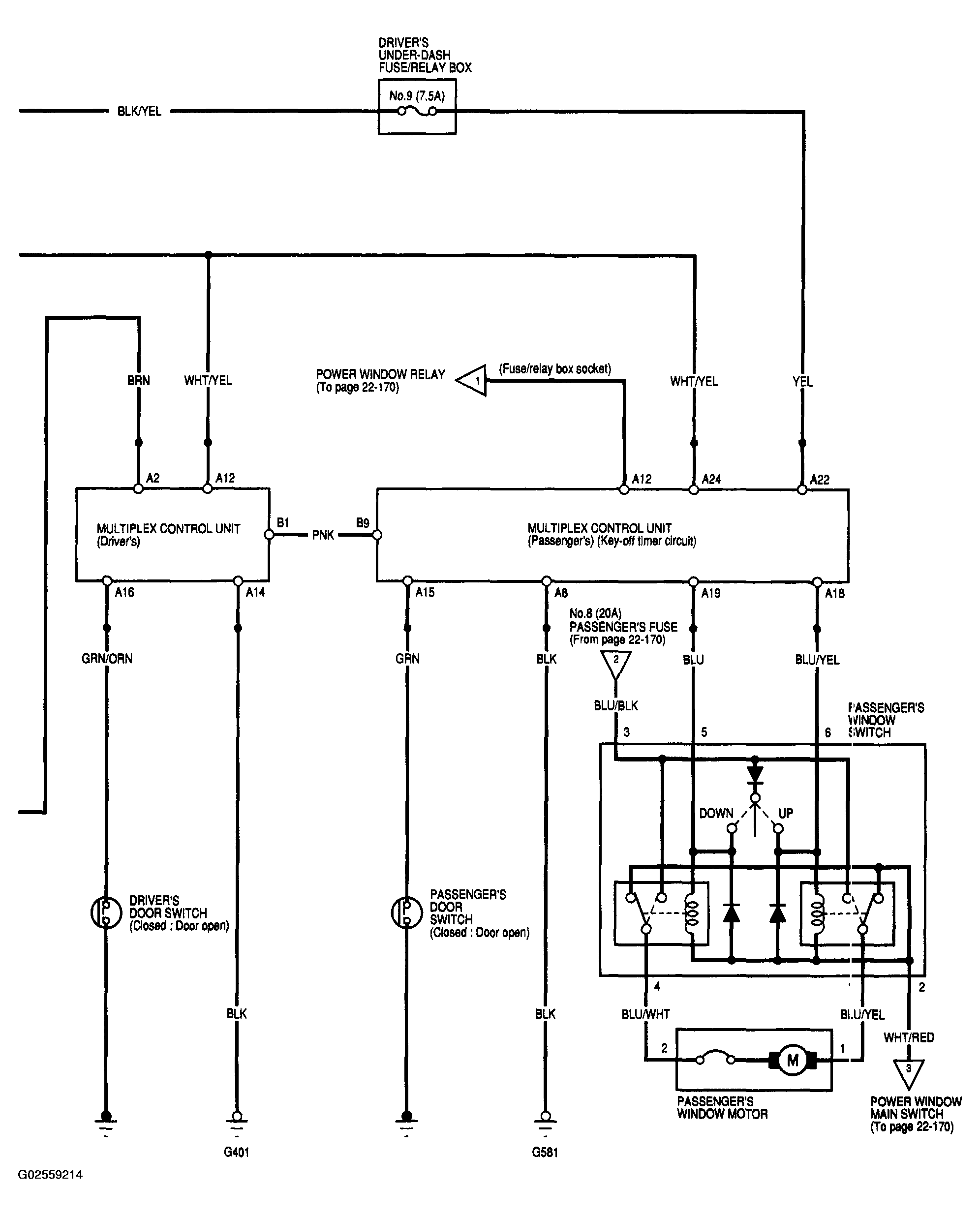

Fig 2: Power Window System Circuit Diagram - '98-99 Models (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

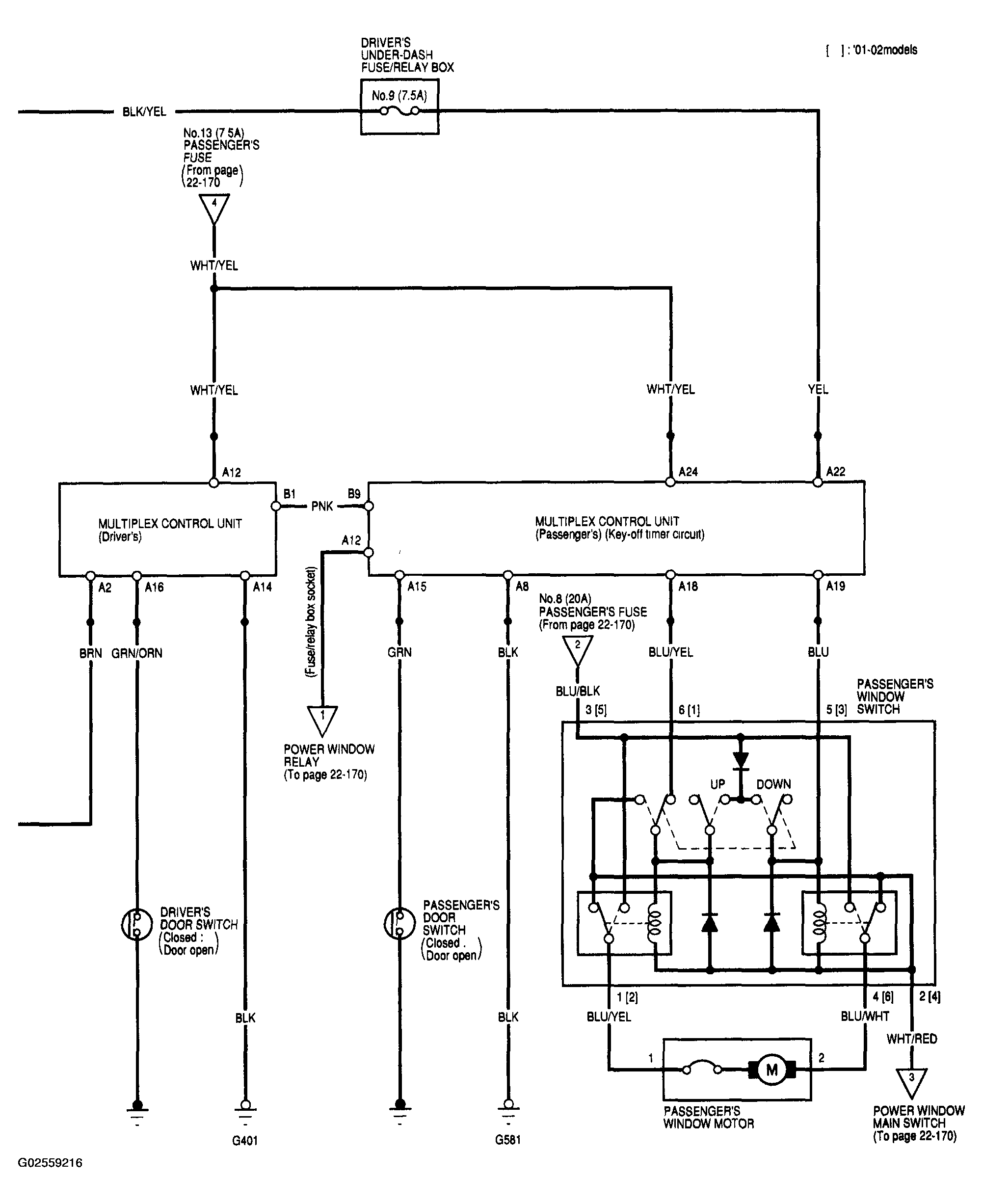

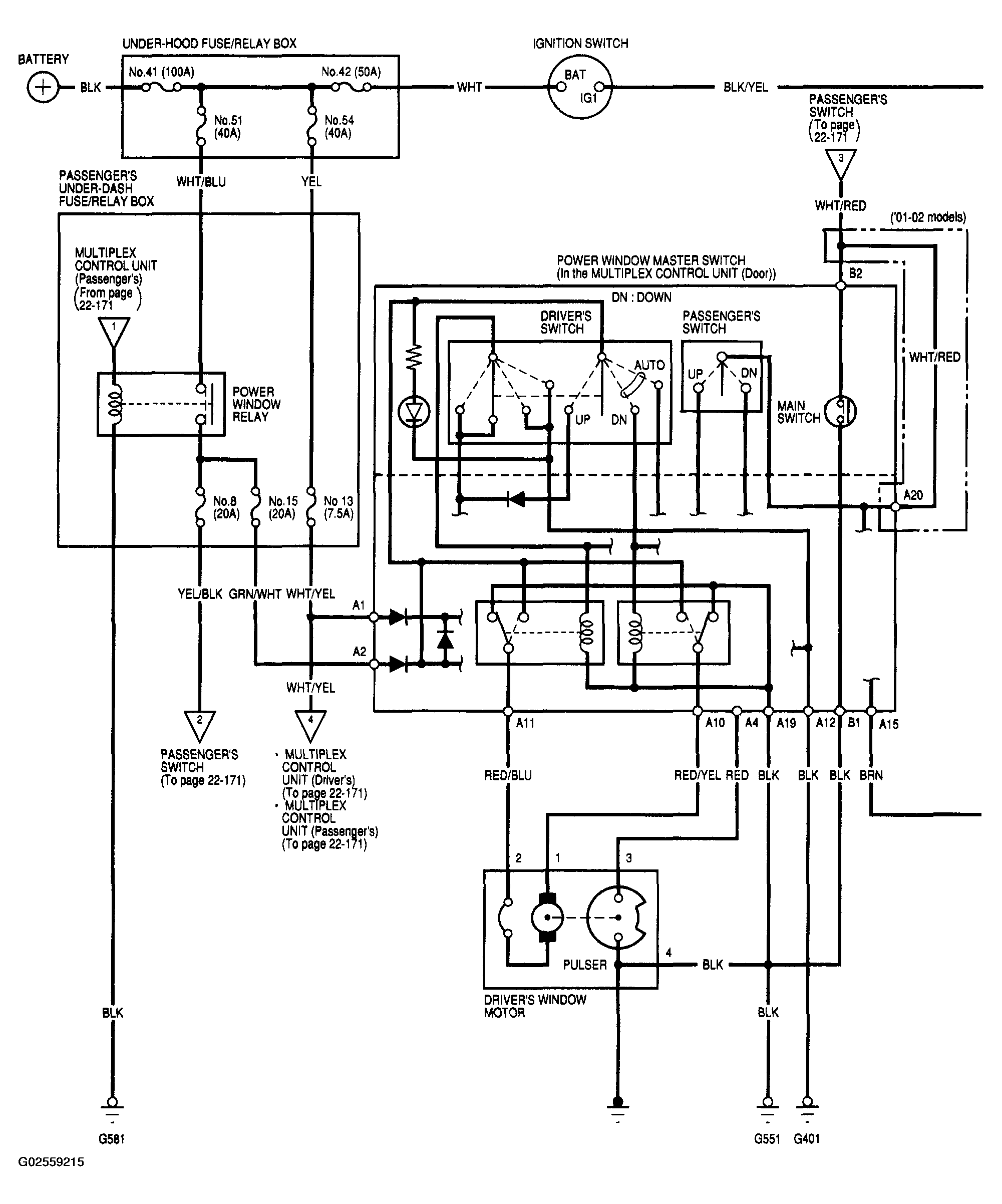

Fig 3: Power Window System Circuit Diagram - '00-02 Models (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Power Window System Circuit Diagram - '00-02 Models (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
