Accessory Power Socket: Test/Replacement

Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Disconnect the 2P connector.
Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.

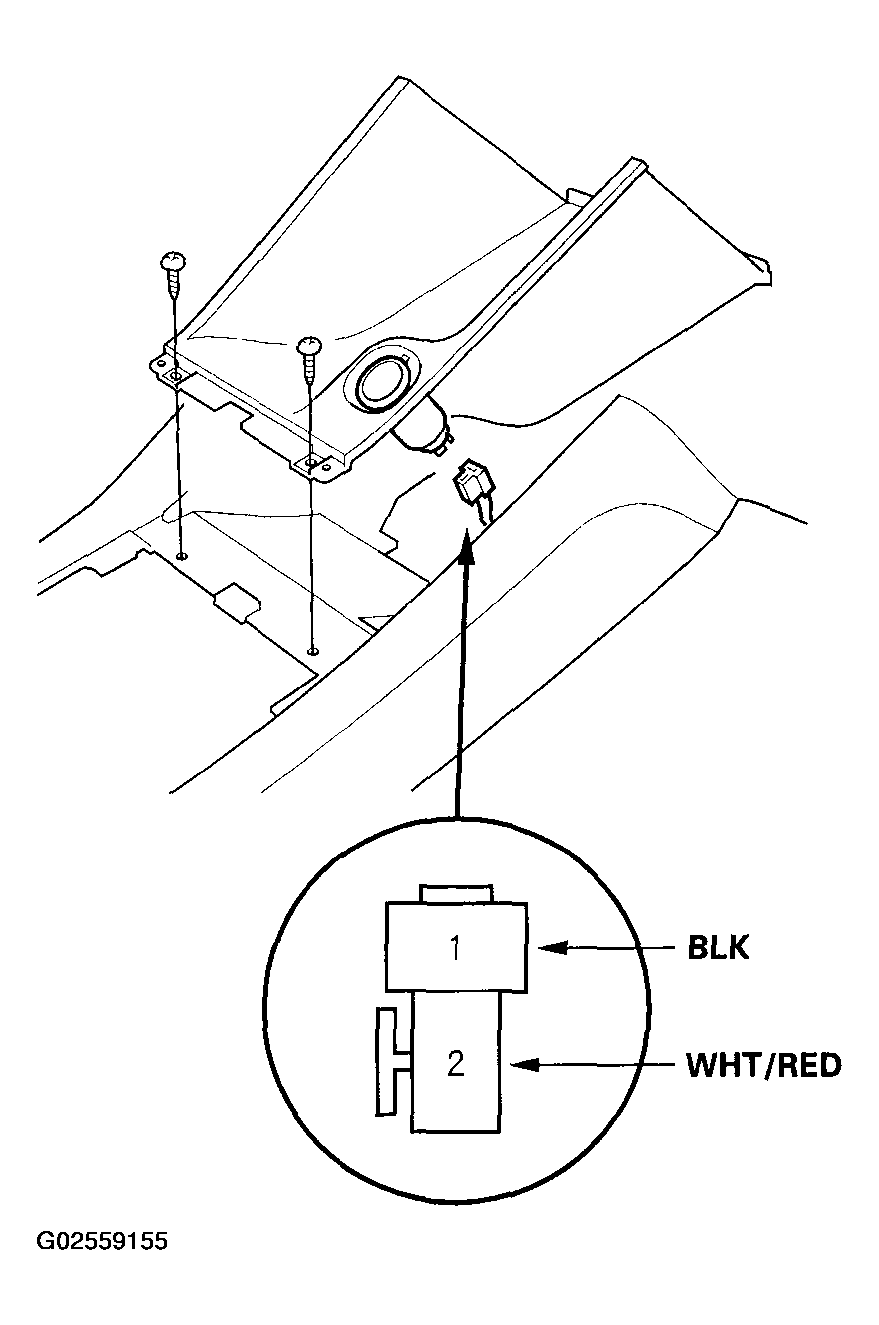

  Fig 1: Identifying Accessory Power Socket Connector Terminals
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch ACC (I), and check for voltage between the No. 1 and No. 2 terminals.
- There should be battery voltage.
- If there is no battery voltage, check for:
  - blown No. 8 (7.5 A) fuse in the driver's under-dash fuse/relay box.
  - faulty accessory socket relay.
  - poor ground (G501, G581).
  - an open in the wire.
  - blown No. 9 (20 A) in the passenger's under-dash fuse/relay box.
Remove the housing (A) and socket (B).

Fig 2: Removing The Housing (A) And Socket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
