Component Location Index
›
Notes
Component Location Index: Notes

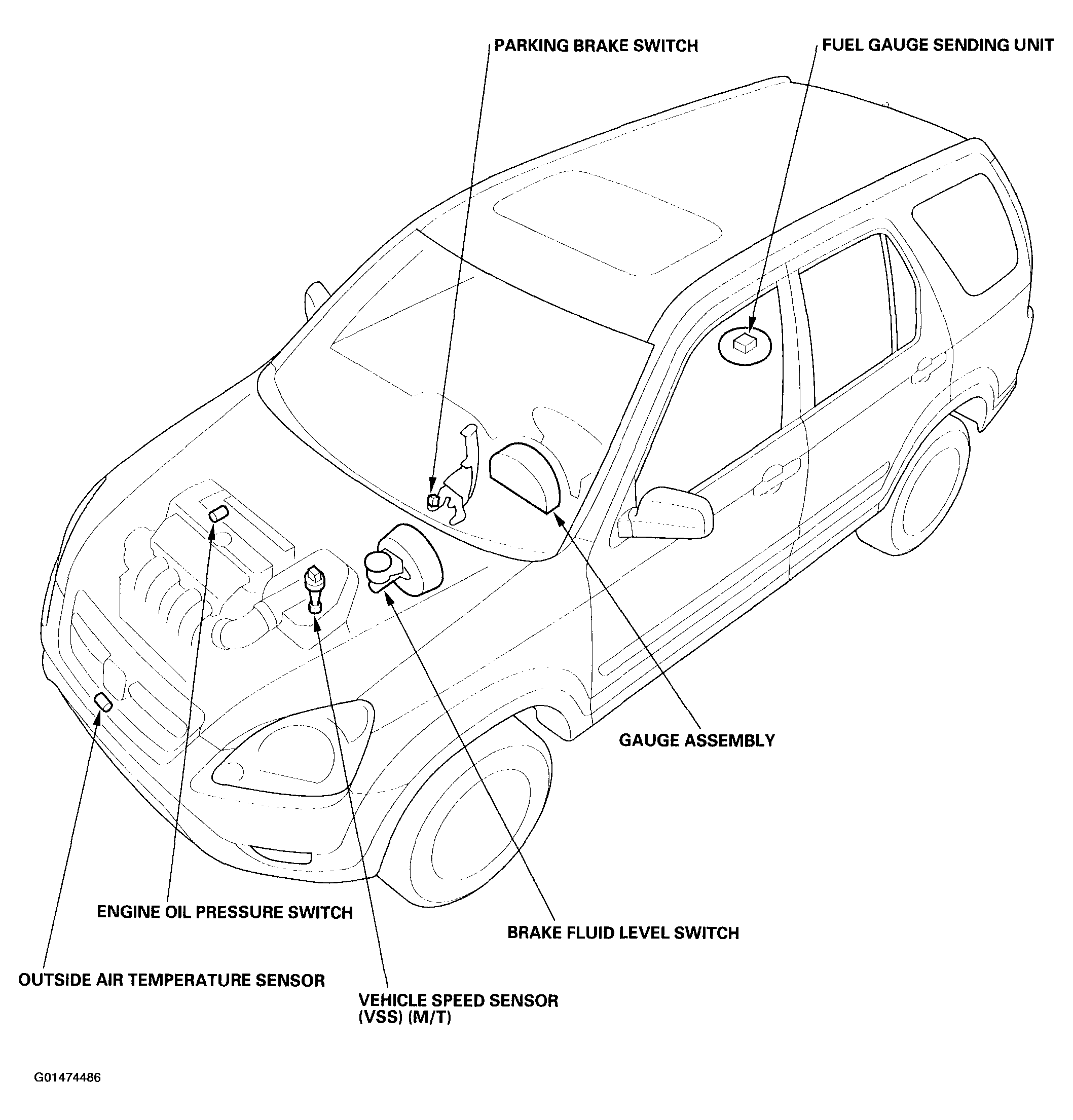

Fig 1: Identifying Component Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
