CR-V EX, Standard
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock
›
Pin Voltage Tests
Pin Voltage Tests
See
Fig 1
and
Fig 2
.

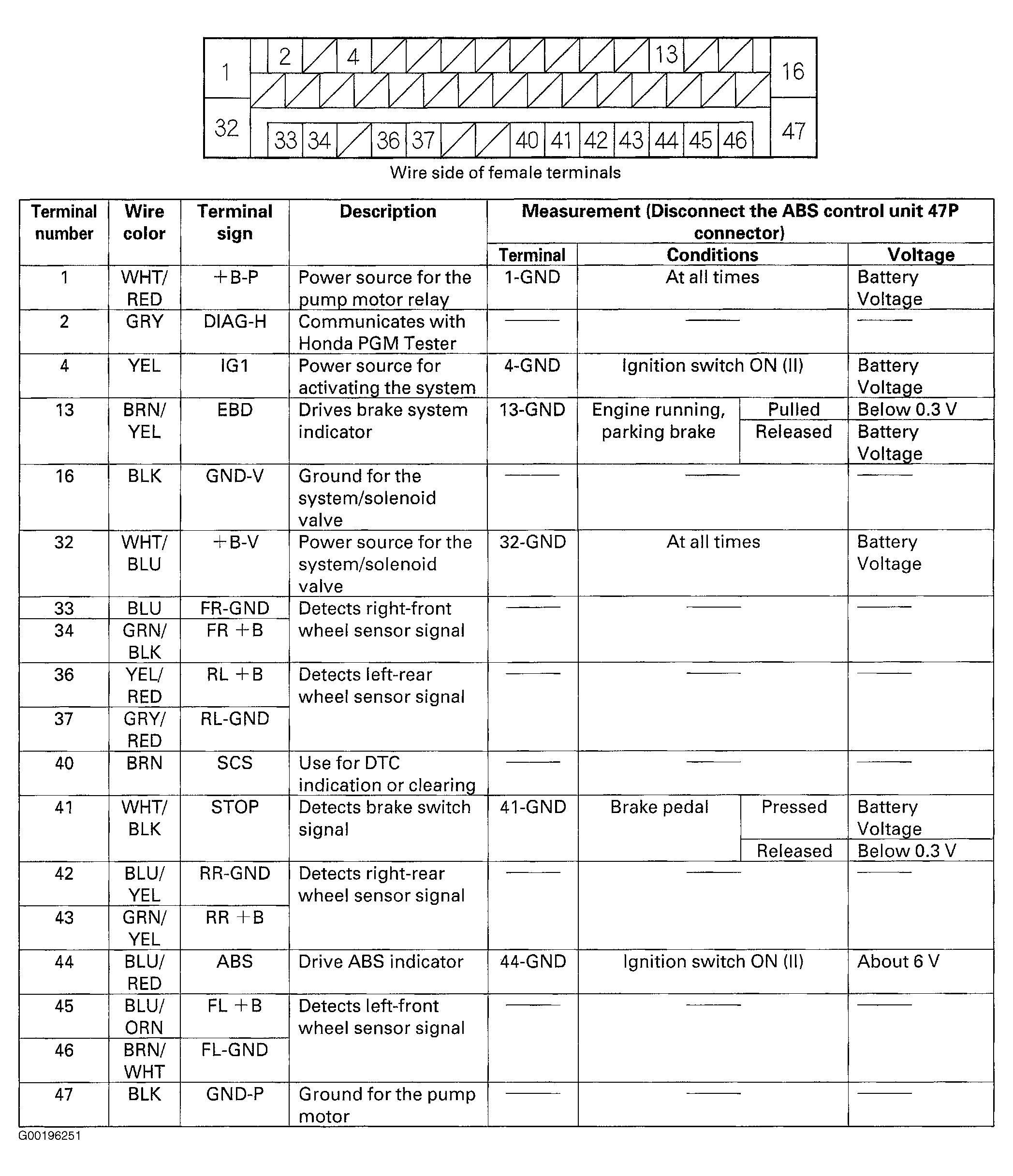

Fig 1: ABS Control Unit 47P Connector Pin Voltage Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

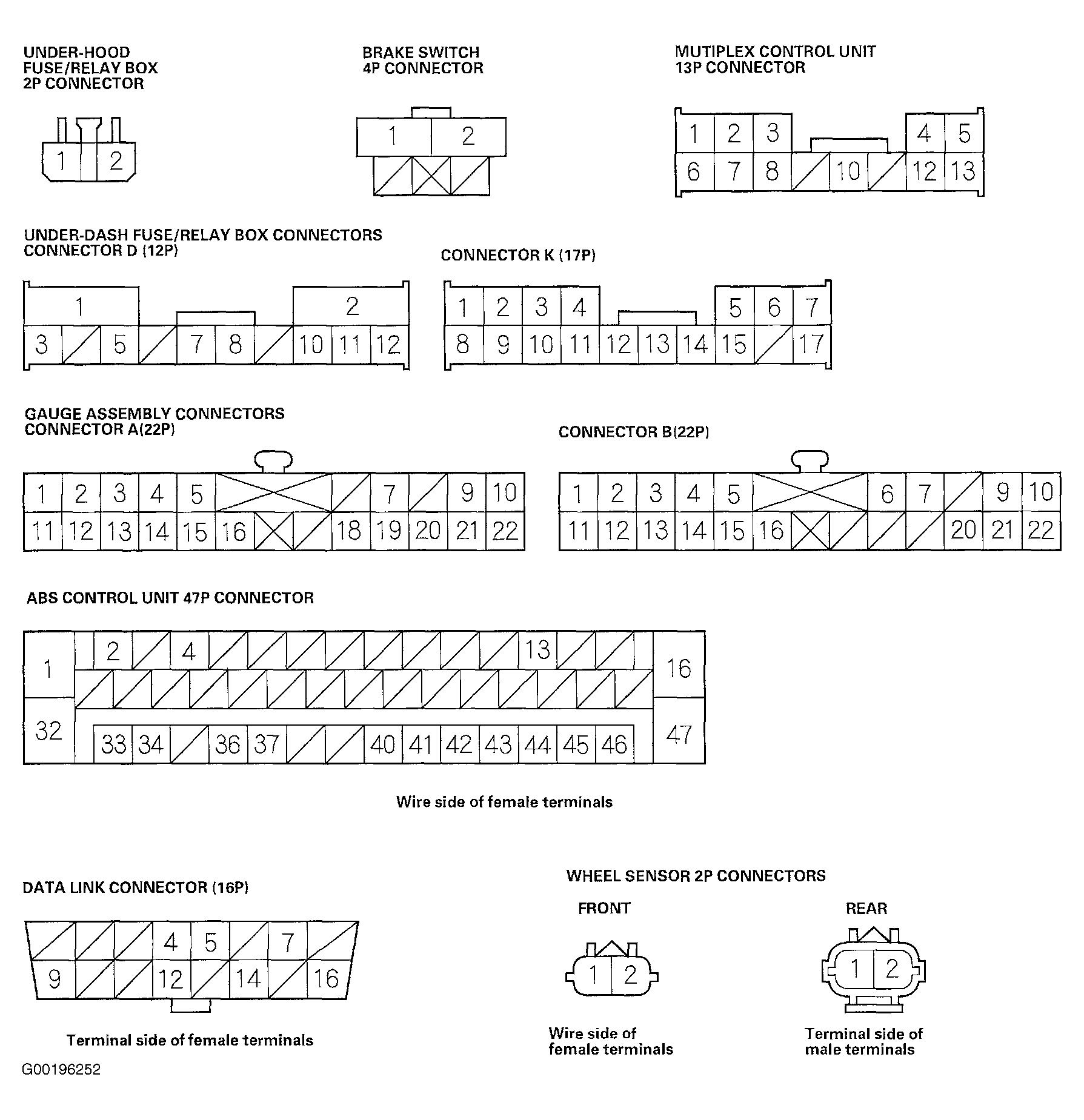

Fig 2: Identifying Pin Voltage Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
